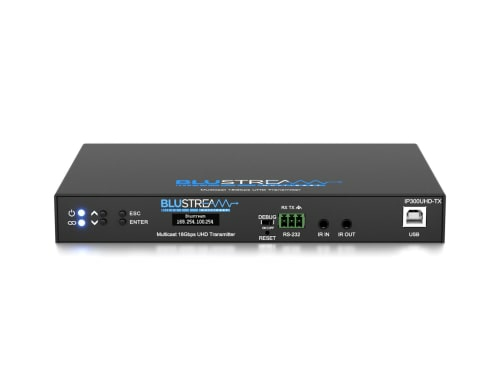

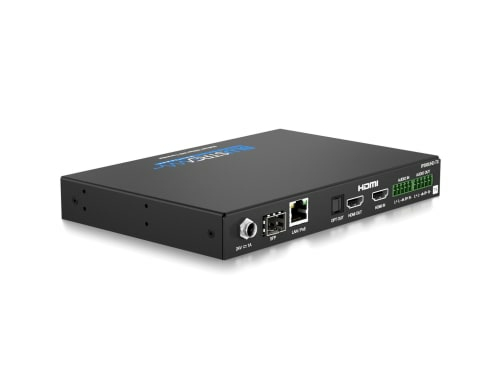

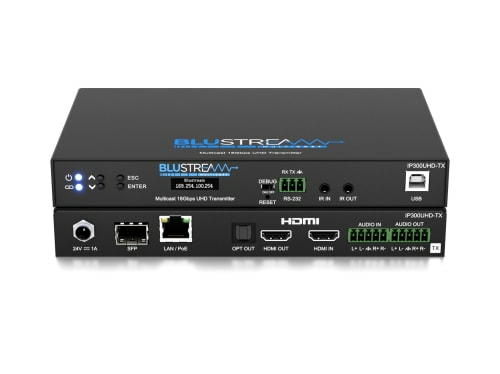

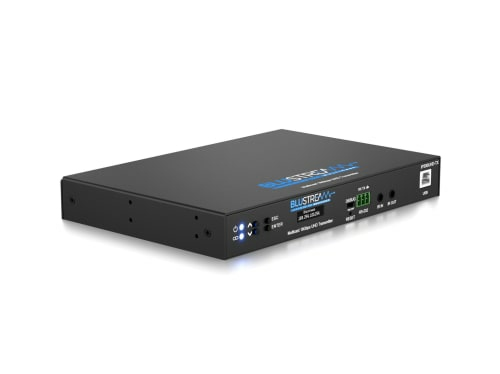

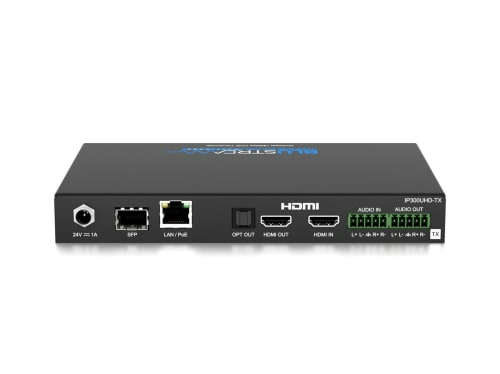

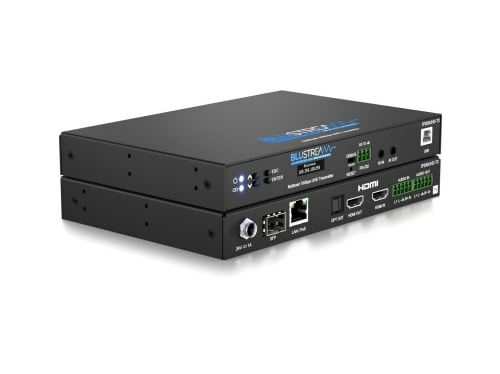

Blustream IP300UHD-TX video distributor HDMI
- Brand: BLUSTREAM
- Category:
- SKU: IP300UHD-TX
- EAN: 9340242004673
HDMI, LAN RJ45, SFP connector, Audio In/Audio Out, RS-232 Serial Port, USB/KVM Port, IR In/IR Ou, black
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
18Gbps UHD Video Transmitter over 1Gb Network , HDMI Loop-out, RJ45 & SFP Network Ports, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2 |
IP300UHD-TX |
Description
4K 60Hz 4:4:4 video over 1Gb network solution - Transmitter
The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb managed network.
Featuring full interoperability with the IP350UHD product line where Dante is required, the IP300UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.
With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.
The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb managed network.
Featuring full interoperability with the IP350UHD product line where Dante is required, the IP300UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.
With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.
Specifications
| Ports & interfaces | |
|---|---|
| Connector gender | Female |
| Input type | HDMI |
| Technical details | |
| Connector gender | Female |
| Input type | HDMI |
| Product colour | Black |
| Weight & dimensions | |
| Width | 190 mm |
| Depth | 128 mm |
| Height | 25 mm |
| Weight | 750 g |
| Package width | 260 mm |
| Package depth | 180 mm |
| Package height | 55 mm |
| Package weight | 800 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
