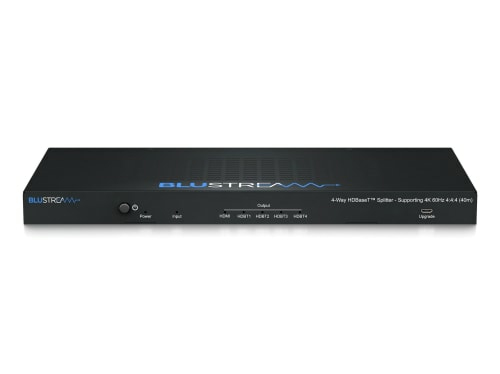

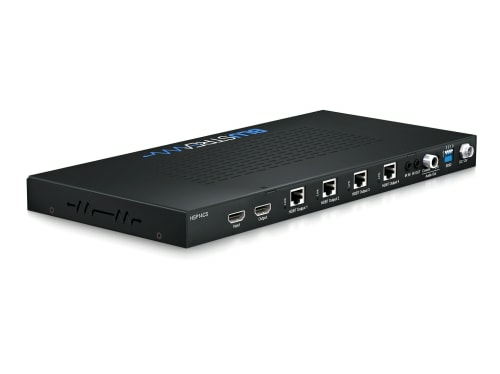

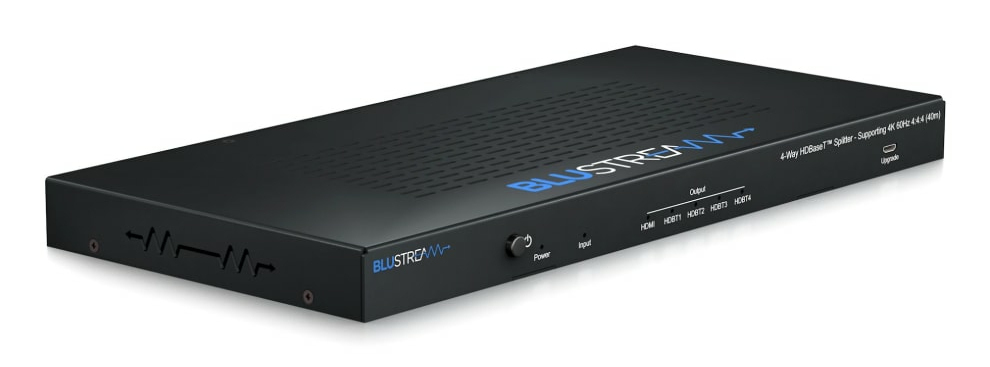

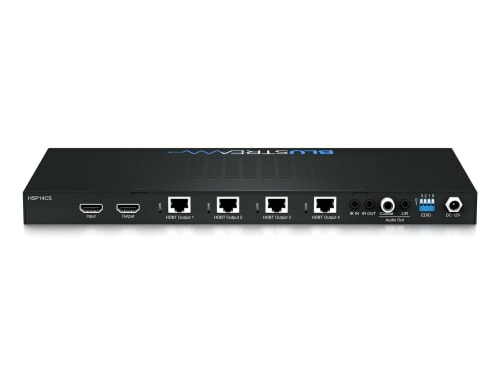

Blustream HSP14CS video splitter HDMI RJ-45
- Brand: BLUSTREAM
- Category:
- SKU: HSP14CS
- EAN: 9340242002884
HDMI, RJ45, HDBaseT, RCA, 3.5mm stereo jack, IR In/IR Out, black
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
4-Way HDBaseT™ CSC Splitter - 4K 60Hz 4:4:4 to 40m (1080p up to 70m), Audio Breakout, EDID Management, HDMI Loop Out, HDCP 2.2 |
HSP14CS | |||
|
HSP14CS 4-Way HDBaseT CSC Splitter - 4K 60Hz 4:4:4 |
AVBLU0156 |
Description
4-Way HDBaseT CSC Splitter - 70m
Our HSP14CS 4K HDBaseT CSC splitter distributes a single HDMI 2.0 4K 60Hz 4:4:4 source to four simultaneous HDBaseT outputs with independent down-scaling of 4K video inputs to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
It transmits HDMI, Bi-directional IR and PoC (Power over Cable) up to lengths of 70m (40m 4K 60Hz 4:4:4) over a single CAT cable.
The 4-Way splitter also features audio breakout, EDID management and HDMI loop out for integrating local displays or cascading to multiple devices.
Our HSP14CS 4K HDBaseT CSC splitter distributes a single HDMI 2.0 4K 60Hz 4:4:4 source to four simultaneous HDBaseT outputs with independent down-scaling of 4K video inputs to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
It transmits HDMI, Bi-directional IR and PoC (Power over Cable) up to lengths of 70m (40m 4K 60Hz 4:4:4) over a single CAT cable.
The 4-Way splitter also features audio breakout, EDID management and HDMI loop out for integrating local displays or cascading to multiple devices.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | RJ-45 |
| Ethernet LAN (RJ-45) ports | 4 |
| Features | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 307 mm |
| Depth | 144 mm |
| Height | 23 mm |
| Package weight | 1.1 kg |
| Packaging data | |
| Package weight | 1.1 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Colour | |
| Product colour | Black |
| Technical details | |
| Video out | RJ-45 |
