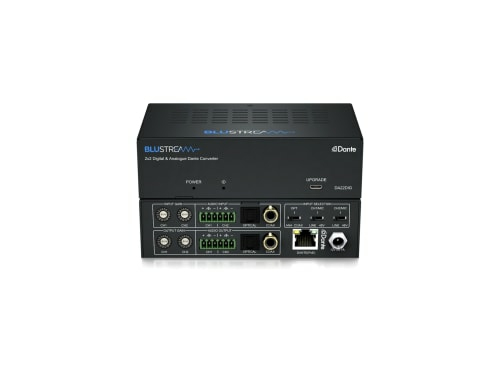

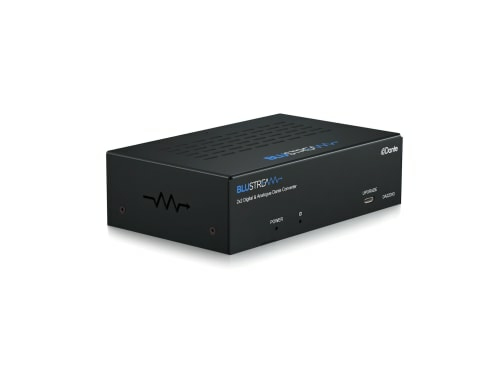

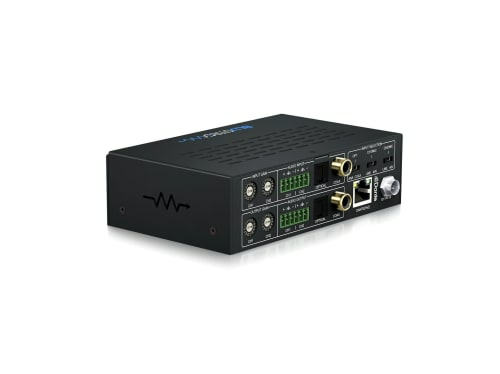

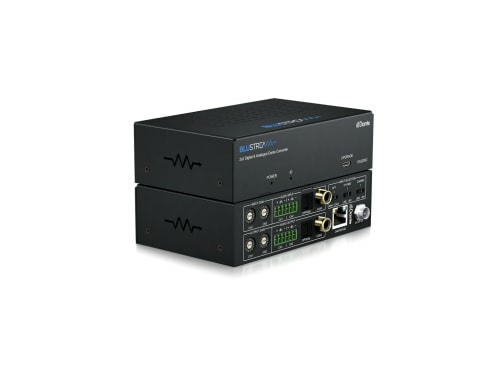

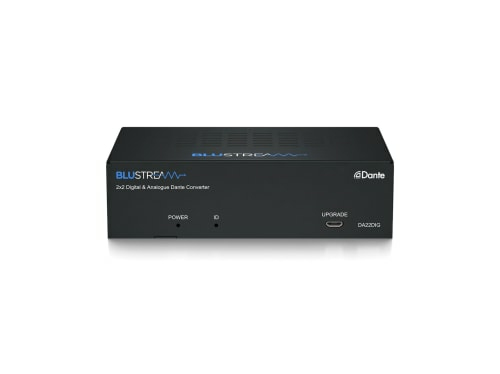

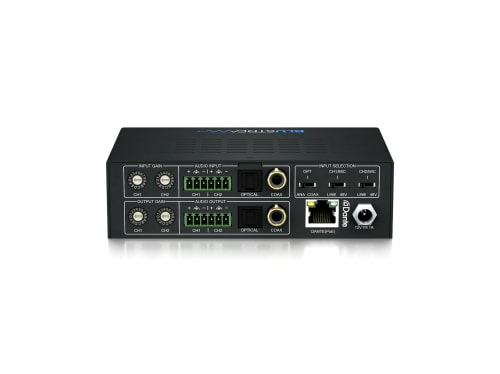

Blustream DA22DIG audio converter Black
- Brand: BLUSTREAM
- Category:
- SKU: DA22DIG
- EAN: 9340242004239
Audio In/Audio Out, RJ45, 0.5kg, black
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
2x2 Dante® Digital Audio Converter |
DA22DIG |
Description
2x2 Digital & Analogue Dante Converter
Our DA22DIG has been designed to both encode 2ch analogue or digital audio to a Dante digital signal, and decode a Dante digital signal to 2ch analogue and digital audio.
The DA22DIG features both analogue audio and digital audio connections, selectable via dip-switch and is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply.
The DA22DIG also features support for microphones including 48V phantom power, as well as support for AES67 RTP audio transport.
Our DA22DIG has been designed to both encode 2ch analogue or digital audio to a Dante digital signal, and decode a Dante digital signal to 2ch analogue and digital audio.
The DA22DIG features both analogue audio and digital audio connections, selectable via dip-switch and is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply.
The DA22DIG also features support for microphones including 48V phantom power, as well as support for AES67 RTP audio transport.
Specifications
| Inputs | |
|---|---|
| Digital audio optical in | 1 |
| Digital audio coaxial in | 1 |
| Outputs | |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Digital audio coaxial out | 1 |
| Technical details | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 135 mm |
| Height | 38 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Colour | |
| Product colour | Black |
