Biamp Parlé TCM-XA Black Conference microphone
- Brand: Biamp
- Category:
- SKU: 911.0499.900
- EAN:
16-Element Digital Array Mic, RJ-45, D150 x 17 mm, 340 g+ Network Box / PoE+ amplifier
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Parlé TCM-XA White |
911.0499.900 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £2,579.16 |
Description
Parlé TCM-XA Ceiling
The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems.

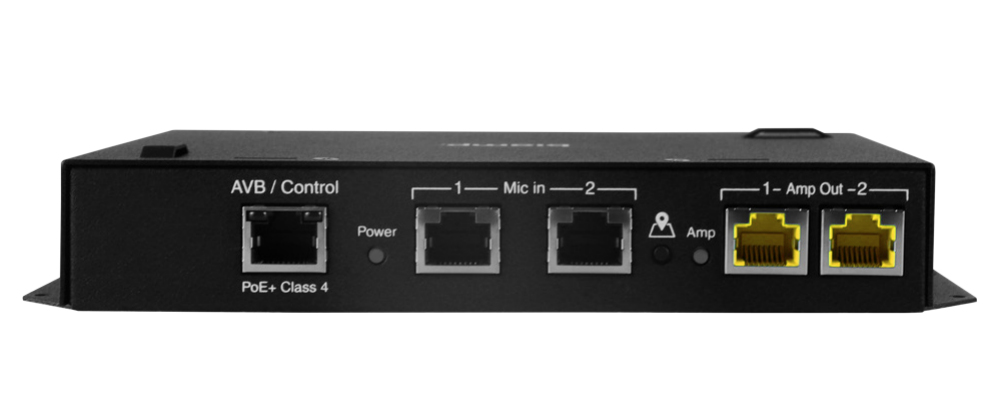

Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX.
A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
The Parlé TCM-XA Black & Parlé TCM-XA White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems.
Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX.
A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
The Parlé TCM-XA Black & Parlé TCM-XA White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifications
| Microphone | |
|---|---|
| Microphone frequency | 150 - 16000 Hz |
| Type | Conference microphone |
| Maximum sound pressure level (1kHz) | 109 dB |
| Microphone dynamic range | 92 dB |
| Microphone Signal-to-Noise Ratio (SNR) | 76 dB |
| Ports & interfaces | |
| Device interface | RJ-45 |
| Connectivity technology | Wired |
| Performance | |
| Country of origin | United States |
| Operating temperature (T-T) | 0 - 40 °C |
| Product colour | Black |
| Operating relative humidity (H-H) | 5 - 95% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Diameter | 15 cm |
| Microphone weight | 340 g |
| Height | 17 mm |
| Packaging data | |
| Package width | 177.8 mm |
| Package height | 127 mm |
| Package depth | 254 mm |
| Package weight | 340 g |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Technical details | |
| Country of origin | United States |
| Operating temperature (T-T) | 0 - 40 °C |
| Number of products included | 1 pc(s) |
| Height | 17 mm |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Colour | |
| Product colour | Black |
| Other features | |
| Maximum sound pressure level (1kHz) | 109 dB |
| Features | |
| Harmonized System (HS) code | 8518100000 |
| Logistics data | |
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518100000 |
