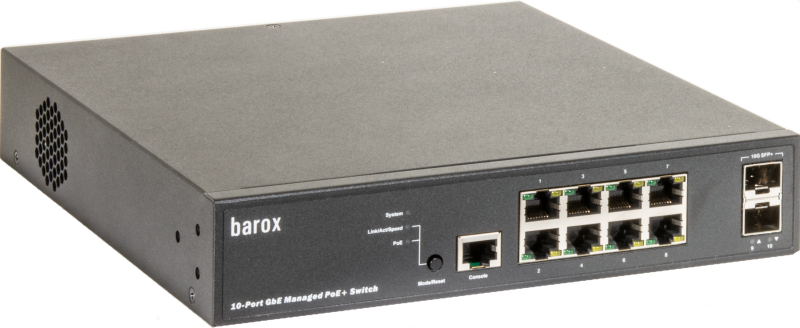

This Layer-2/3 switch with extensive L3 functions has been specially developed for applications with high data load, such as video over IP, video streaming also in connection with multicast. The switch has extensive security functions that protect both the switch itself and the network traffic. The PoE allows IP cameras to be fed via the data cable. With the extensive management options, even complex network requirements can be met.

Active monitoring of the camera
The switch continuously monitors PoE-powered cameras. In the event of a camera failure, the switch automatically restarts the camera. At the same time, the switch sends an SNMP message.

Active monitoring of the PoE supply
If, for example, too much power is demanded from the switch due to a defective camera, the switch alerts via SNMP.

Active management of PoE power
When the switch is started up, the individual PoE ports can start up with a time delay to prevent overloading the PoE power supply units.

Active integration of the switch in video management systems
For the popular video management systems Milestone and Siveillance Video, SW modules are available which allow direct integration of the switch management and the DMS into this VMS.

Uninterruptible PoE power supply
The PoE supply to the PDs is not interrupted when the switch is rebooted.

Jumbo frames even at 100 Mbps
Jumbo Frames up to 10'240Bytes are also supported at 100MBit/s
