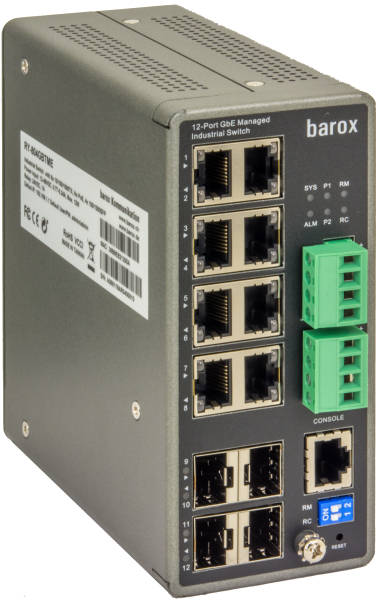

Barox RY-804GBTME network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Black

  • Brand: Barox
  • Category:
  • SKU: RY-804GBTME
  • EAN: 5704174466116
Barox RY-804GBTME, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex

Trade Prices

Distributor Product SKU Stock Updated Price
Fourcom

Switch für Hutschienenmontage,

 548678 Register free see stock
Alternative Suppliers
ECPROF

EU Product - Switch 8-Port 8x10/100/1000TX RJ45 4x100/1000FX SFP

 RY-804GBTME Register free see stock

Description

Barox RY-804GBTME. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 4, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 12 -50 V

Specifications

Management features
Multicast supportYes
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2/L3
Configuring Location Settings (CLI)Yes
Ports & interfaces
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity4
Gigabit Ethernet (copper) ports quantity8
USB 2.0 ports quantity1
Console portRJ-45
Network
IGMP snoopingYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Number of VLANs64
Link aggregationYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
10G supportNo
Auto-negotiationYes
Half duplexYes
Virtual LAN featuresPort-based VLAN, Tagged VLAN
Virtual LAN features
VLAN supportYes
Number of VLANs64
Virtual LAN featuresPort-based VLAN, Tagged VLAN
Data transmission
Number of VLANs64
Jumbo frames9600
MAC address table8000 entries
Switching capacity24 Gbit/s
Number of queues8
Jumbo frames supportYes
Performance
Auto-negotiationYes
Technical details
Product colourBlack
Rack mountingNo
Security
AuthenticationPort-based authentication
Security algorithms802.1x RADIUS, HTTPS, SSH, SSL/TLS
IGMP snoopingYes
Authentication typeRADIUS
Multicast features
Multicast supportYes
Protocols
Management protocolsTelnet, SNMP v1/v2/v3, TFTP, SSH, SSL, RMON
Certificates
CertificationIEC61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-8 EMI: FCC Part 15 Class A, EN61000-3-2, -3-3, -6-4, EN55022, EN55011 IEC60068-2-32 IEC60068-2-27 IEC60068-2-6 EN0121-4 EN50155 NEMA TS2 IEC61850-3, IEEE1613 DNV FCC Class A, CE, UL
Design
Product colourBlack
LED indicatorsYes
CertificationIEC61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-8 EMI: FCC Part 15 Class A, EN61000-3-2, -3-3, -6-4, EN55022, EN55011 IEC60068-2-32 IEC60068-2-27 IEC60068-2-6 EN0121-4 EN50155 NEMA TS2 IEC61850-3, IEEE1613 DNV FCC Class A, CE, UL
Rack mountingNo
Indication
LED indicatorsYes
Power
Power consumption (max)15 W
Power supply includedNo
Redundant power supply (RPS) supportYes
DC input voltage12 -50 V
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Weight & dimensions
Width62 mm
Depth130 mm
Height135 mm
Weight700 g
Other features
Ethernet LAN data rates10,100,1000 Mbit/s
