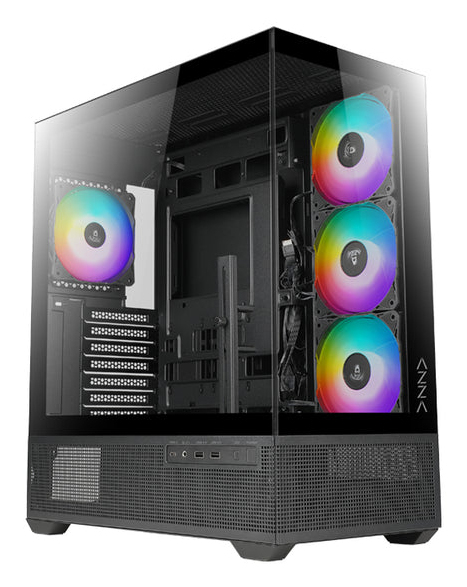

Azza Tiara Midi Tower Black
- Brand: Azza
- Category:
- SKU: CSAZ-501B
- EAN: 4712839551351
ATX Mid Tower, 2.5'' x 4, 3.5'' x 2, 482 x 225 x 420 mm
Offer details
Description
Cooling holes all around the bottom panel create an efficient vertical air path, accelerating air flow from all angles. The Tiara provides decent dimensions, with up to a maximum 400mm graphic card inside the chamber.
Diverse Material Design

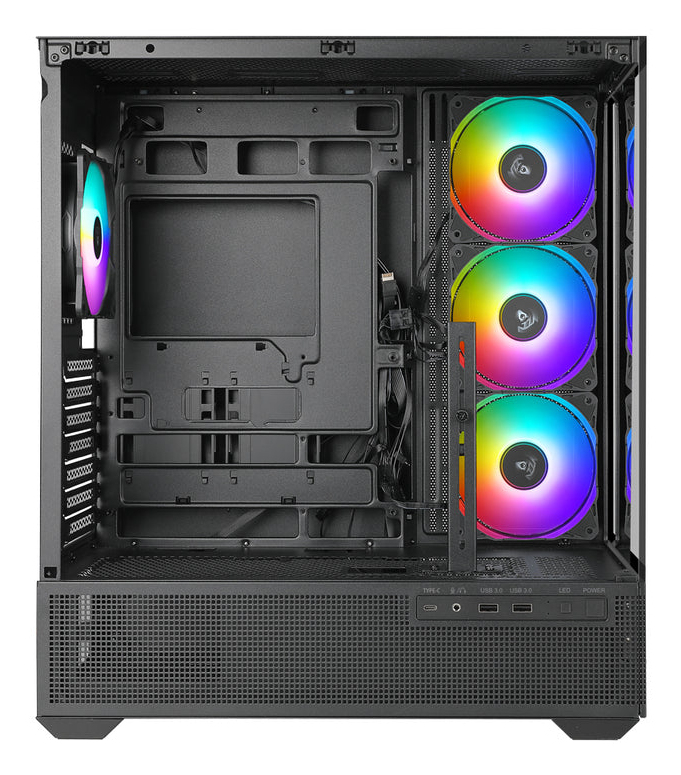

The Tiara combined with glass and mesh hole panel design, presents a succinct appearance and wonderful heat dissipation at once. It includes 3 x 120 mm ARGB side fans and 1 x 120 mm ARGB rear fan, as well as a VGA support bar.
Impressive Airflow Support
Direct airflow to the GPU can be achieved by adding 3 x 120 mm fans above the PSU shroud, bringing the total fan support up to 10 x 120 mm fans!
Wonderful Unrestricted Airflow
Right and bottom solid panel with grids to enhance heat dissipation and ventilation all around the chamber.
Intuitive I/O
The Tiara presents a clean front I/O which includes:
Power button
LED button
2 x USB 3.0 ports
Combo HD Audio
Type-C
Flexible Storage Options
Drive cage tray supports 1 x 3.5" HDD or 2.5" SSD
Top of drive cage supports 1 x 3.5" HDD or 2.5" SSD
Right side panel supports 2 x 2.5" SSD
Diverse Material Design
The Tiara combined with glass and mesh hole panel design, presents a succinct appearance and wonderful heat dissipation at once. It includes 3 x 120 mm ARGB side fans and 1 x 120 mm ARGB rear fan, as well as a VGA support bar.
Impressive Airflow Support
Direct airflow to the GPU can be achieved by adding 3 x 120 mm fans above the PSU shroud, bringing the total fan support up to 10 x 120 mm fans!
Wonderful Unrestricted Airflow
Right and bottom solid panel with grids to enhance heat dissipation and ventilation all around the chamber.
Intuitive I/O
The Tiara presents a clean front I/O which includes:
Power button
LED button
2 x USB 3.0 ports
Combo HD Audio
Type-C
Flexible Storage Options
Drive cage tray supports 1 x 3.5" HDD or 2.5" SSD
Top of drive cage supports 1 x 3.5" HDD or 2.5" SSD
Right side panel supports 2 x 2.5" SSD
Specifications
| Technical details | |
|---|---|
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Supported HDD sizes | 3.5" |
| Side window | Yes |
| Product colour | Black |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 17 cm |
| Maximum graphics card length | 40 cm |
| Type | PC |
| Form factor | Midi Tower |
| Material | |
| Material | Steel, Tempered glass |
| Ergonomics | |
| On/off button | Yes |
| Design | |
| Anti-dust filter | Yes |
| Material | Steel, Tempered glass |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Side window | Yes |
| Product colour | Black |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 17 cm |
| Maximum graphics card length | 40 cm |
| Type | PC |
| Form factor | Midi Tower |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
| RGB control button | Yes |
| Power supply | |
| Supported power supply form factors | ATX |
| Power supply location | Bottom |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Combo headphone/mic port | Yes |
| USB Type-C ports quantity | 1 |
| Cooling | |
| Front radiator sizes supported | 240,280 mm |
| Top radiator sizes supported | 280,360 mm |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Side fans installed | 3x 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Pulse-width modulation (PWM) support | Yes |
| Storage | |
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 420 mm |
| Height | 482 mm |
| Weight | 6.38 kg |
