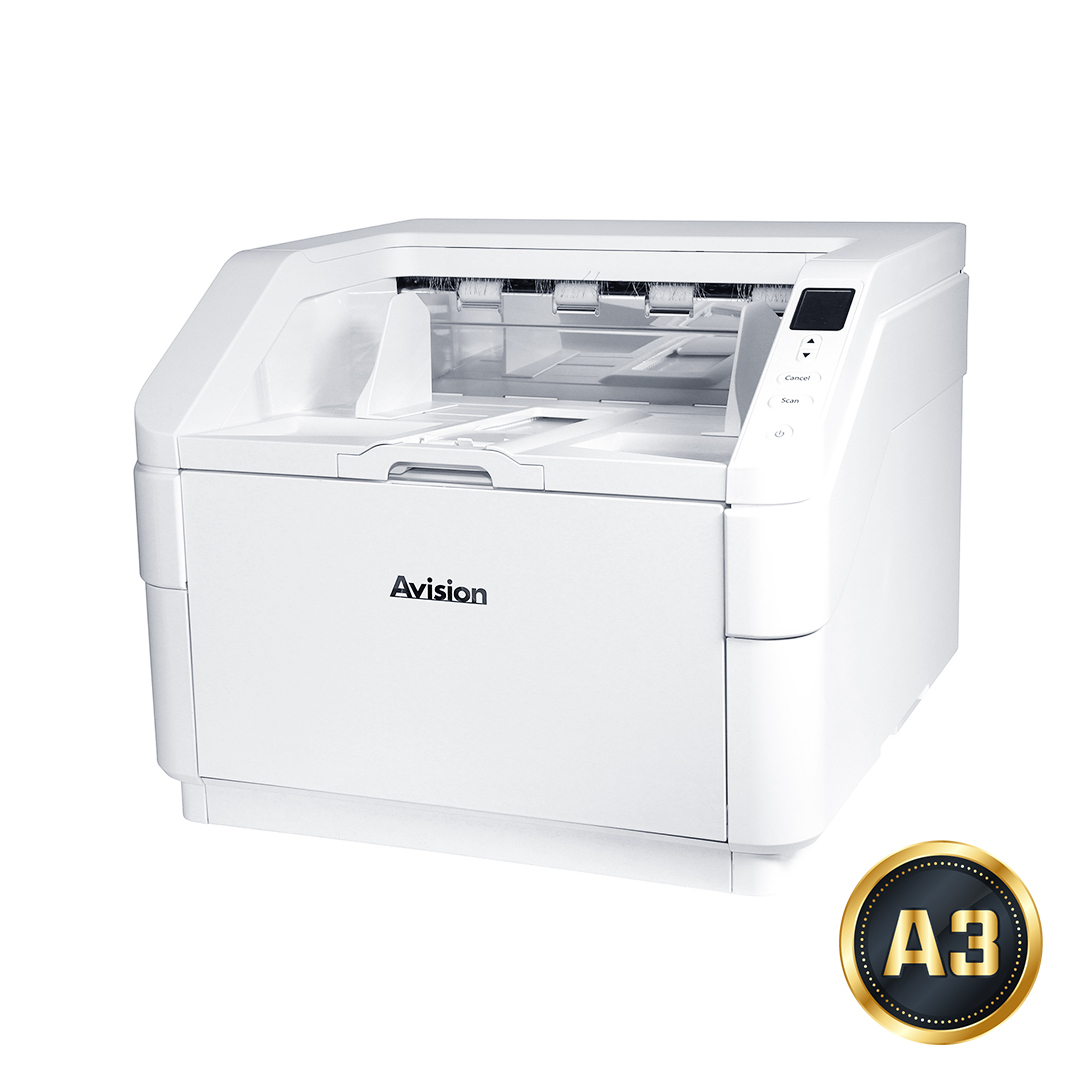

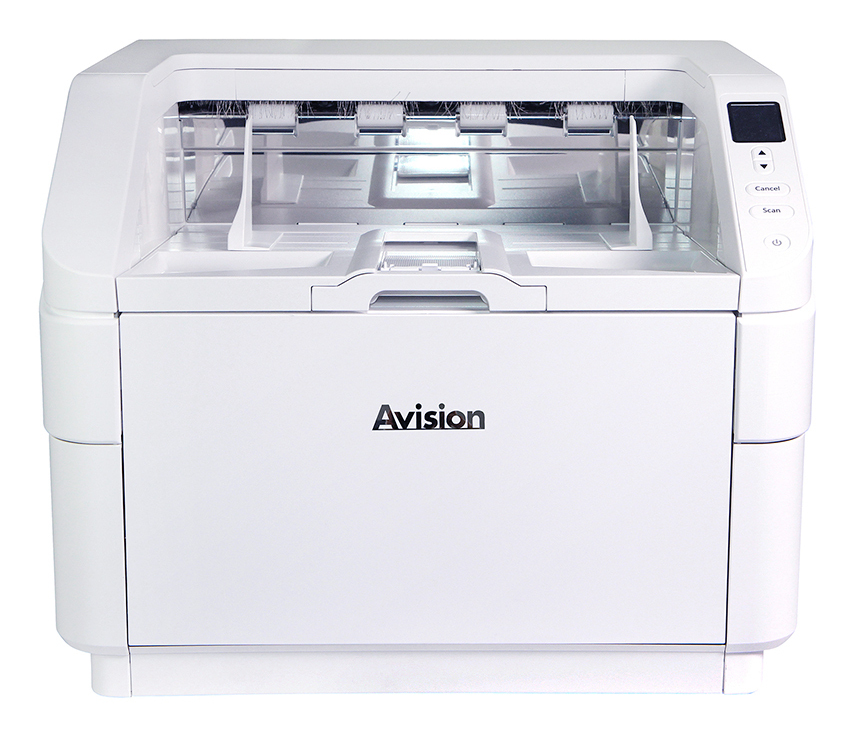

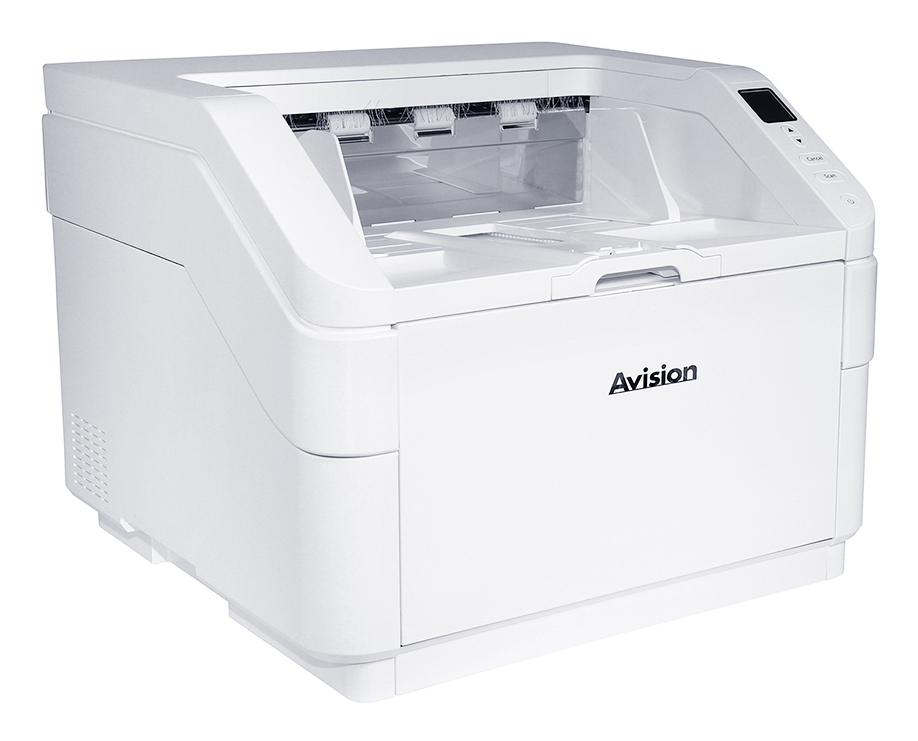

AD8120UN A Duplex High-Volume Production Scanner

Avision is pleased to announce its release of the high-volume production scanner with a robust 500-page auto document feeder and a blazing scanning speed of up to 120 ppm/240 ipm in Color, Grayscale, and Monochrome. Combining paper protection technology and triple ultrasonic double-feed detection capability, the AD8120UN delivers exceptional feeding reliability to maximize your scanning productivity in a small unit.

Effective network Scanning

With the network port at the back side, the AD8120UN allows you to use it as a network scanner. This means users in the intranet environment can share the scanner and obtain the scanned image from their individual computer.

High-Volume Daily Duty Cycle

The scanner can be used to scan up to 100,000 pages per day through the 500-page (80 g/m²) automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.

Dual CIS Design to Handle Wrinkled Documents

Designed to handle even extreme applications, the AD8120UN scanner is built-in with two CIS. These CIS give you maximum illumination to help eliminate shadows from wrinkled documents.

Triple Ultrasonic Sensors to Detect Overlapped Paper

Three ultrasonic sensors provide protection against double feeds by detecting and preventing overlapping pages from being fed into the scanner at the same time. Each sensor can be set to ignore or detect specified areas of a document to accommodate pages with labels or attachments.

Staple Detection Technology

Avision’s Staple Detection feature automatically stops the scanning process when an unremoved staple is detected. If left undetected, staples could cause errors that compromise the document, cause jams, or damage the device.

Plastic card or ID card uses the straight paper path

To provide scanner users with the most versatile scanning environments, the user has the choice to utilize a “Curved or Straight Paper Path”. By opening the rear cover, users can use the straight path to transport paper to the rear of the unit. To utilize the straight paper path ensures high reliability with plastic card, ID card, thick, long paper, or more fragile documents.

A Large LCD Display

The AD8120UN is easy to use through the clear 1.8” LCD display. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

Scan to Cloud with Button Manager

The AD8120UN come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager , AVScan , and PaperPort . With Button Manager , you can complete a scan and send the image directly to cloud servers such as Google Drive, Dropbox, Evernote, FaceBook, or Microsoft SharePoint with a press of a button. You can also save the image to searchable PDF, JPEG, BMP, or GIF file format, and scan to e-mail, or image editing application. In addition, the bundled software applications also include AVScan and PaperPort which are are highly effective document management software to streamline your task more efficiently.
