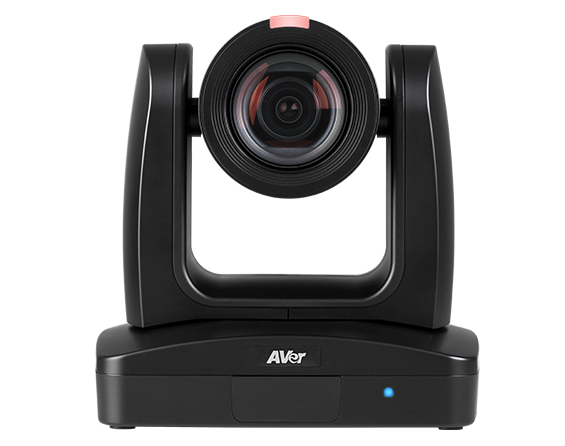

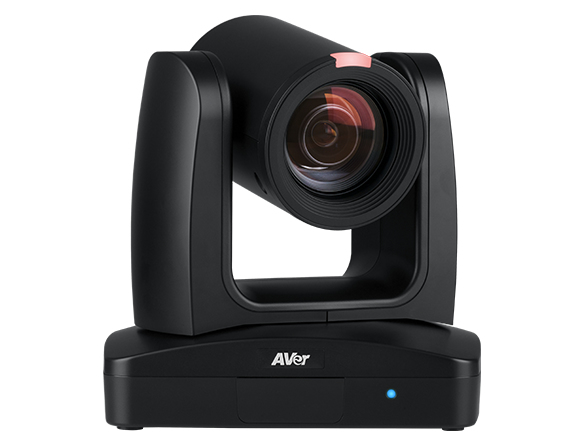

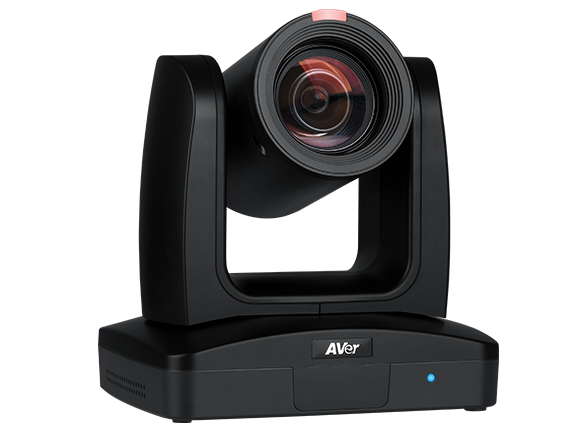

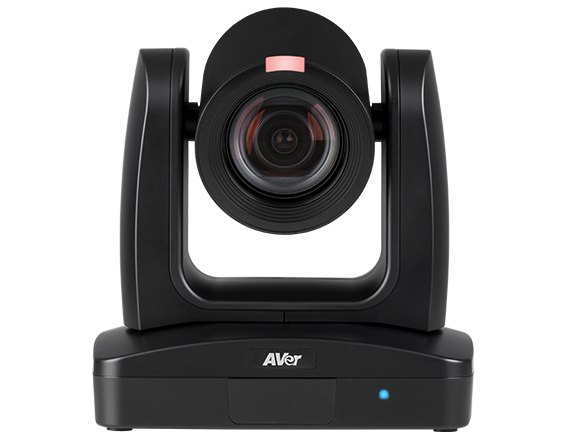

AVer PTC310H 8 MP Black 30 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
- Brand: AVer
- Category:
- SKU: 61S9100000AG
- EAN: 4719552126316
8 MP, 1/2.8” 4K Exmor CMOS, 12X, 0.4 lux, AI Auto Tracking, IP, HDMI, USB, AC 100 - 240V, DC 12V/5A, 18W, PoE+, 180 x 183.5 x 145 mm, 1.7 kg, Exclusive Ceiling Mount
Offer details
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £3,275.00 | ||
| Amazon | New | £3,275.00 | ||
| Amazon | New | £3,275.00 |
Related Products
Description
TRACK EVERY MOMENT
The PTC310H AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310H features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
4K Output Resolution
Equipped with 4K resolution, the PTC310H provides ultra-precise auto tracking. The PTC310H also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
12X Optical Zoom & 2X Sensor Zoom
The zoom power of the PTC310H reaches an incredible 24X (12X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310H.
Human Detection AI
Welcome AVer’ s most advanced AI tool yet—Human Detection. This highly accurate processing function enables the PTC310H to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
Redirect focus in an instant with the PTC310H. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
The PTC310H AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310H features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
4K Output Resolution
Equipped with 4K resolution, the PTC310H provides ultra-precise auto tracking. The PTC310H also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
12X Optical Zoom & 2X Sensor Zoom
The zoom power of the PTC310H reaches an incredible 24X (12X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310H.
Human Detection AI
Welcome AVer’ s most advanced AI tool yet—Human Detection. This highly accurate processing function enables the PTC310H to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
Redirect focus in an instant with the PTC310H. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
Specifications
| Camera | |
|---|---|
| Megapixel (approx.) | 8 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 12x |
| Digital zoom | 12x |
| Focal length range | 3.9 - 46.8 mm |
| Minimum illumination | 0.4 lx |
| White balance | Auto, Manual |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Noise reduction | Yes |
| Gain control type | Auto/Manual |
| Horizontal field of view (wide) | 70° |
| Horizontal field of view (tele) | 6° |
| PTZ control | Yes |
| Minimum working distance (wide) | 30 cm |
| Maximum working distance (tele) | 150 cm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Aperture range (F-F) | 1.6 - 2.8 |
| Auto exposure | Yes |
| Network streaming | Yes |
| Fastest camera shutter speed | 1/3200 s |
| 3D NR (Noise Reduction) | Yes |
| Sensor zoom | 2x |
| Vertical field of view (wide) | 42° |
| Vertical field of view (tele) | 3° |
| PTZ protocols | Pelco-P/D, VISCA |
| Video | |
| Maximum frame rate | 30 fps |
| Resolution at capture speed | 1280x720@50fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps, 3840x2160@25fps, 3840x2160@29.97fps, 3840x2160@30fps |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Video formats supported | H.264, H.265 |
| HD type | 4K Ultra HD |
| Number of TV lines | 1400 |
| Design | |
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | 170 - 170° |
| Country of origin | Taiwan |
| Web-based management | Yes |
| Tilt speed (min) | 0.1 °/sec |
| Tilt speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Pan speed (max) | 100 °/sec |
| Tally light | Yes |
| Tilt preset speed | 200 °/sec |
| Pan preset speed | 200 °/sec |

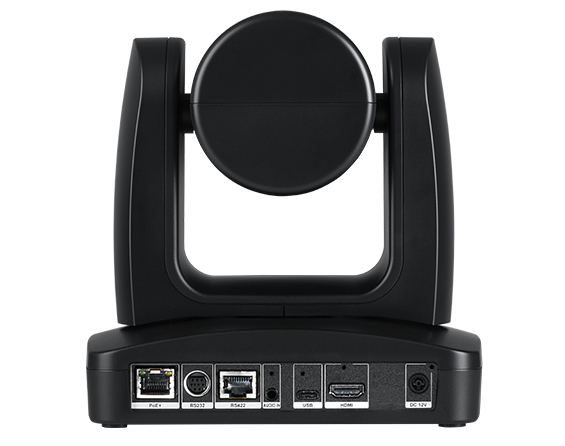

| Ports & interfaces | |
| HDMI ports quantity | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| RS-422 ports | 1 |
| Microphone in | Yes |
| USB Type-C connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Line-in | Yes |
| Power | |
| DC input voltage | 12 V |
| Input current | 5 A |
| Power consumption (typical) | 18 W |
| Power source type | AC, PoE |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Operating current | 5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 80 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Storage relative humidity (H-H) | 20 - 95% |
| Technical details | |
| Harmonized System (HS) code | 8525890000 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Audio | |
| Noise reduction | Yes |
| Supported sample rates | 48 kHz |
| Audio codecs | AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K) |
| Audio channels | 2 |
| Protocols | |
| Supported network protocols | IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
| Network streaming | Yes |
| Multi-stream capability | 2 (RTSP / Web Page), 1080p 60fps (max.) |
| Bit rate range | 512 - 32000 Kbit/s |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Network configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
| Packaging content | |
| Cables included | RS-232 |
| AC adapter included | Yes |
| Screws included | Yes |
| Number of screws | 10 |
| Number of cable ties | 5 |
| Number of cable fixing plates | 2 |
| Mounting brackets included | Yes |
| Cable ties included | Yes |
| Performance | |
| Screen mirroring | Yes |
| Remote control function | Yes |
| Remote control type | IR |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Live video preview | Yes |
| Tracking modes | Presenter mode, Zone mode |
| Auto-tracking | Yes |
| Logistics data | |
| Products per pallet | 60 pc(s) |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8525890000 |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 145 mm |
| Height | 183.5 mm |
| Weight | 1.77 kg |
| Packaging data | |
| Package width | 268 mm |
| Package depth | 268 mm |
| Package height | 330 mm |
| Package weight | 4.73 kg |
