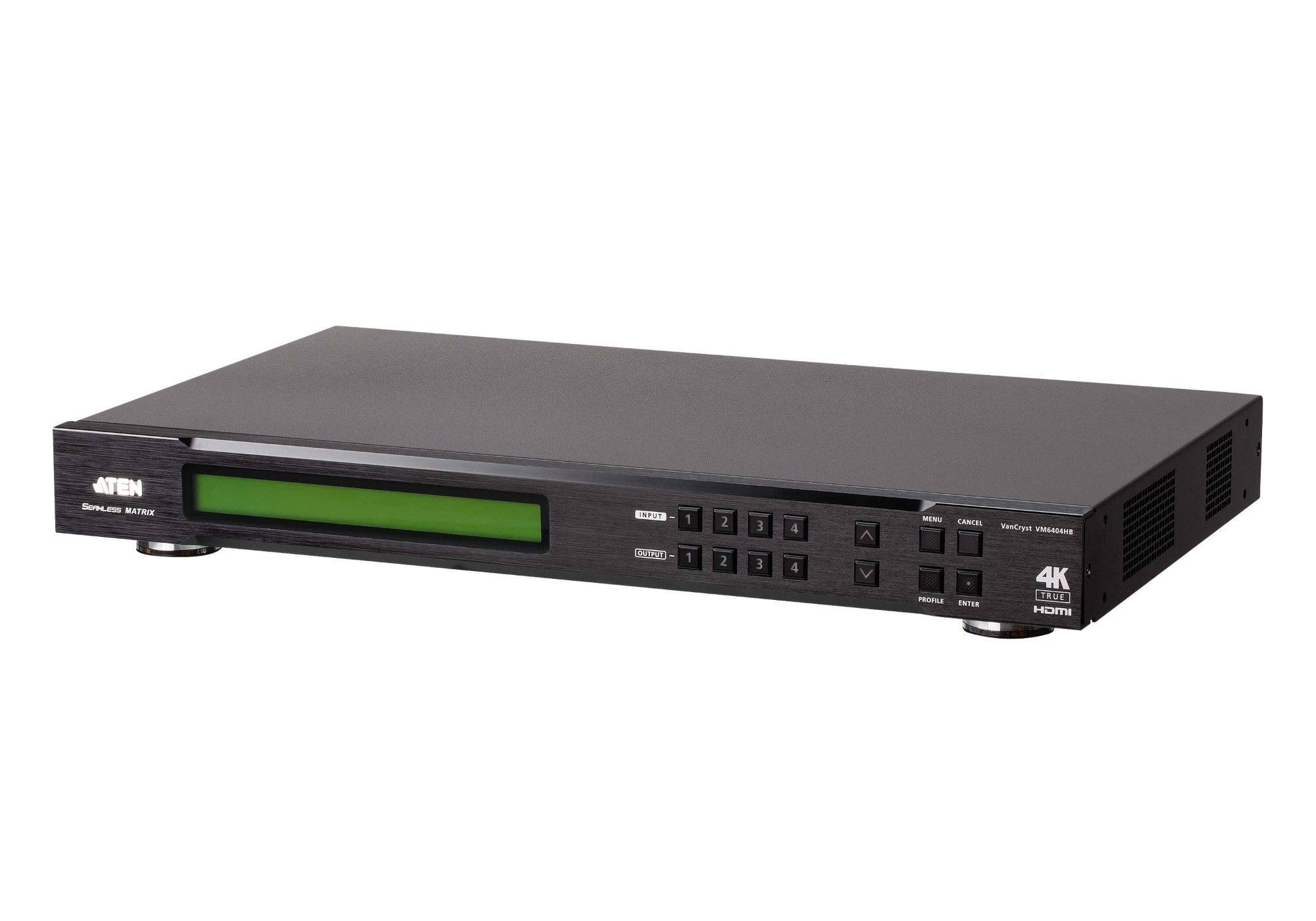

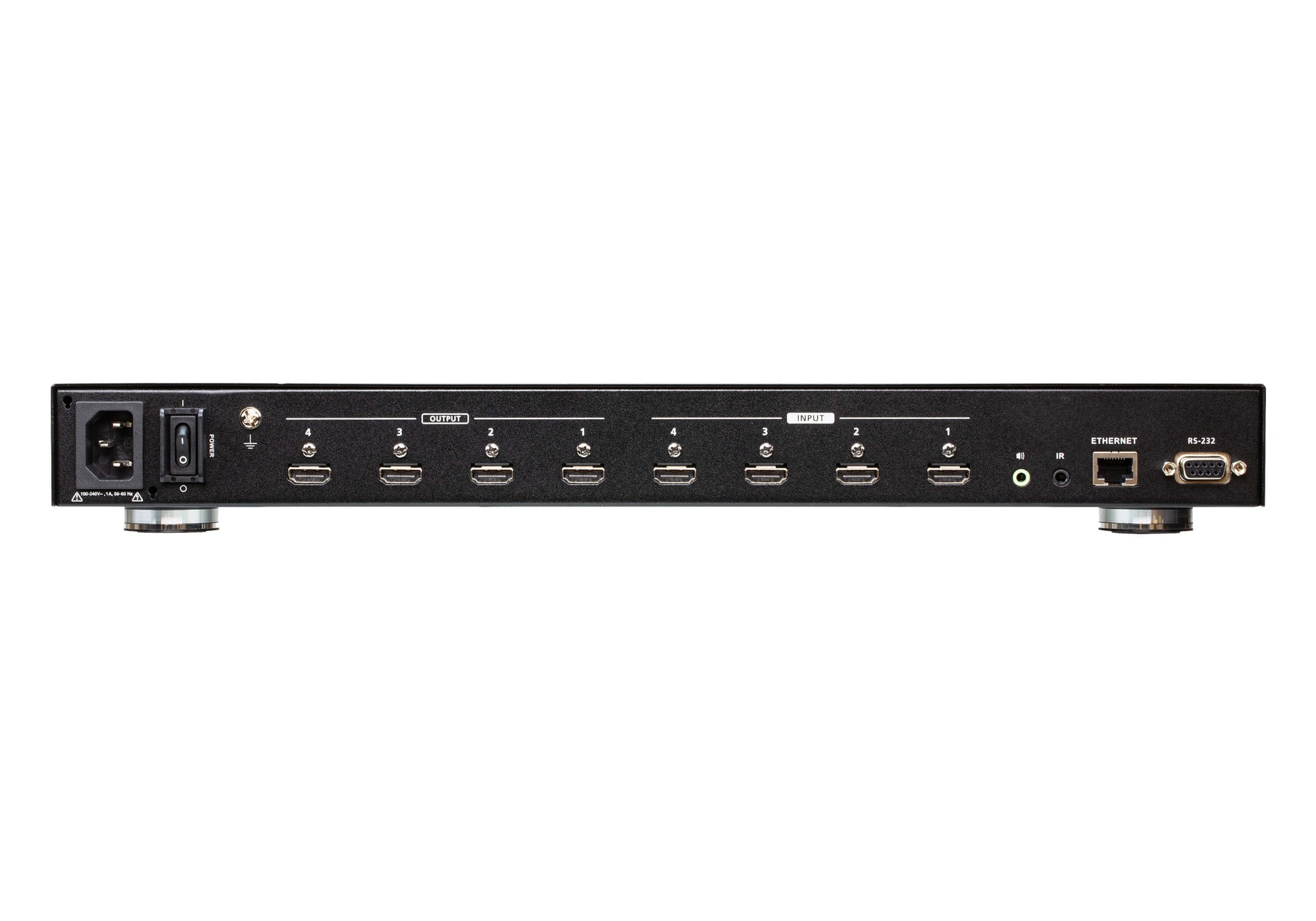

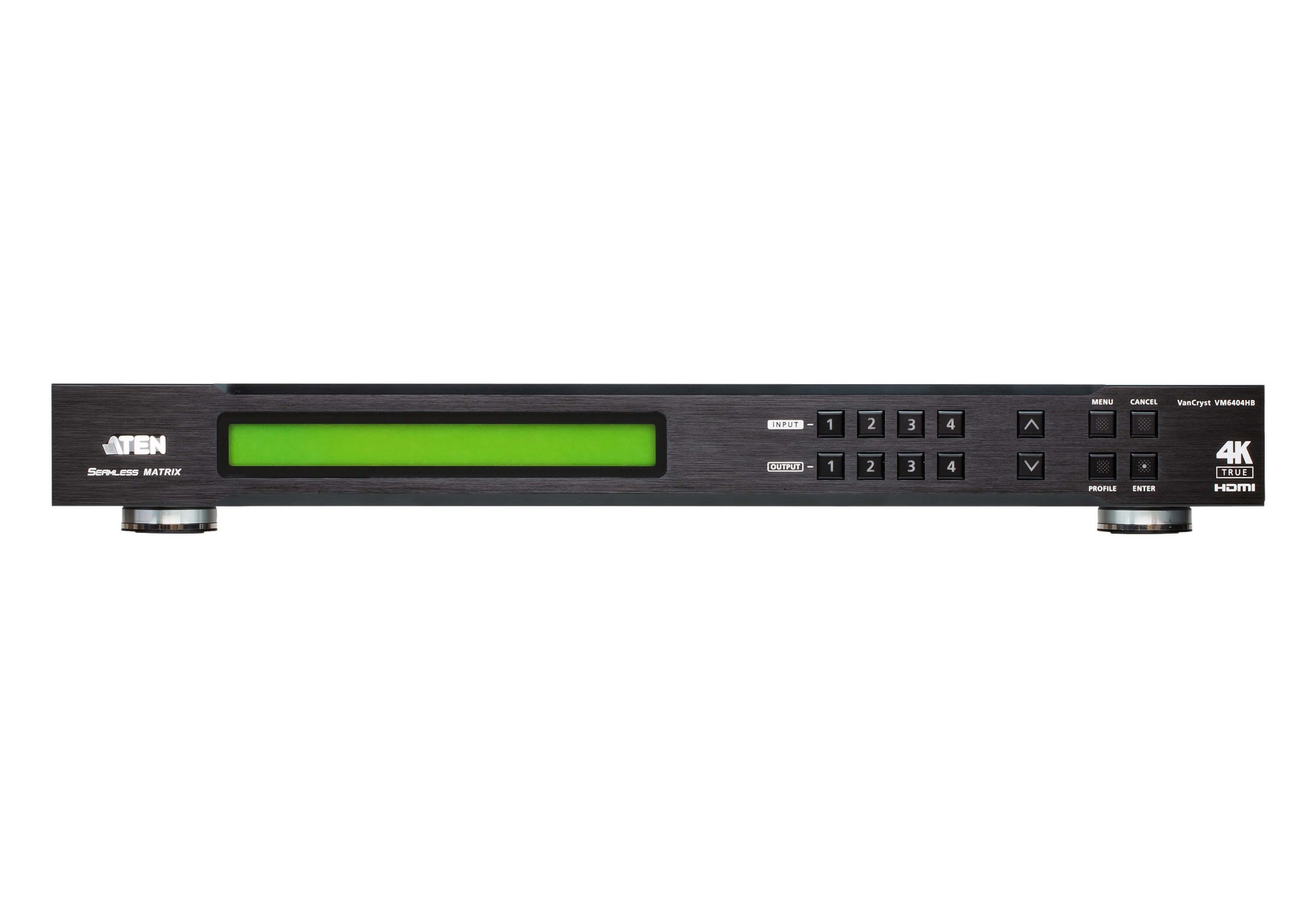

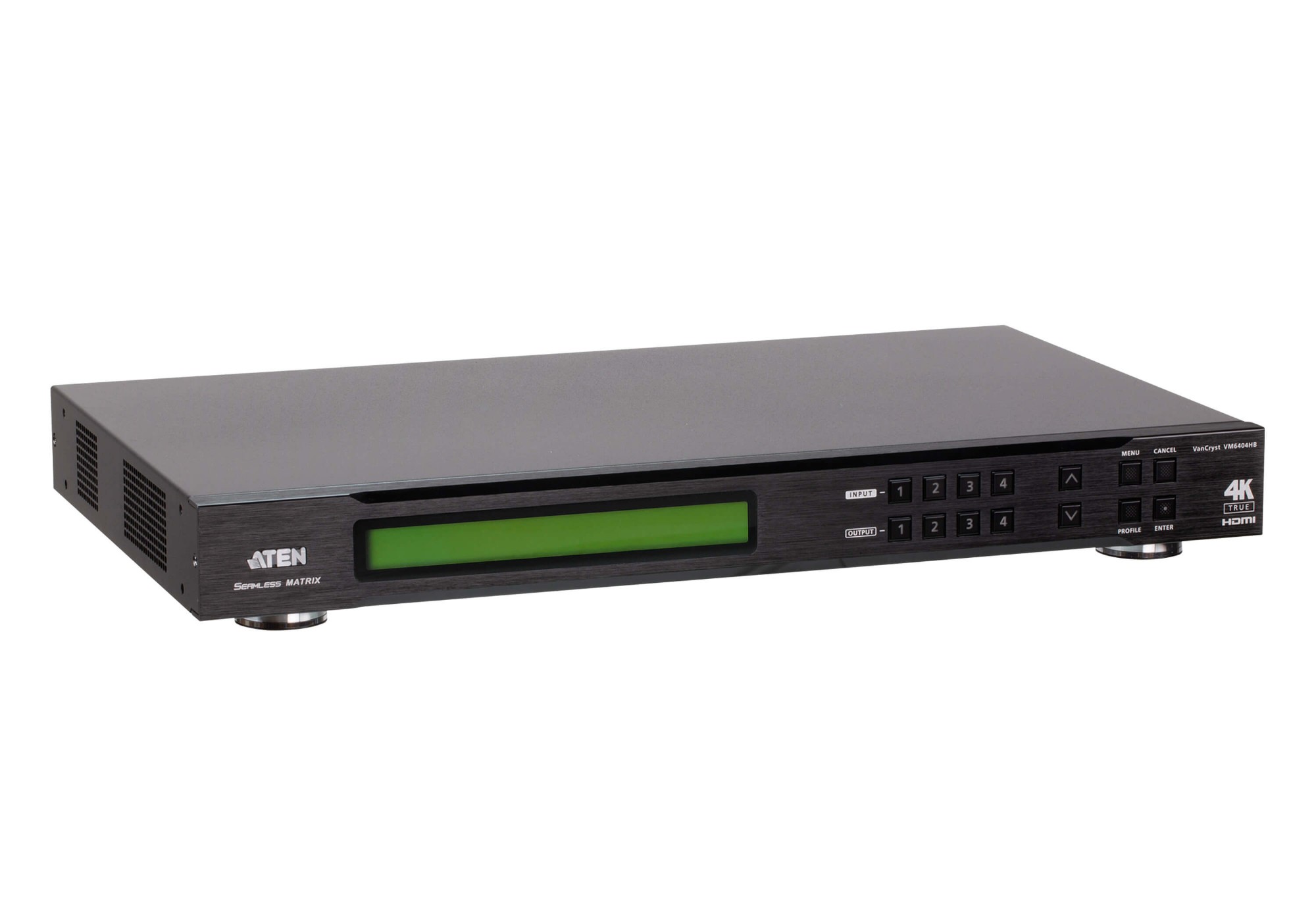

ATEN VM6404HB-AT-E matrix switcher Scaling matrix switcher Built-in display
- Brand: ATEN
- Category:
- SKU: VM6404HB-AT-E
- EAN:
4 x 4 True 4K HDMI Matrix Switch with Scaler
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
VM6404HB-AT-E matrix switcher |
VM6404HB-AT-E | |||
|
4x4 True 4K HDMI Matrix Switch W/Scaler |
ATN-VM6404HB-AT-E | |||
|
VM6404HB |
ATENVM6404HB | |||
|
4x4 True 4K HDMI Matrix Switch W/Scaler |
AVATEN271 | |||
|
VM6404HB |
ATENVM6404HB |
Description
True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN's VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x KC06-0012-B07G Mounting Kit
1x User Instructions
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x KC06-0012-B07G Mounting Kit
1x User Instructions
Specifications
| Features | |
|---|---|
| Product type | Scaling matrix switcher |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
| Maximum resolution | 4096 x 2160 pixels |
| Design | |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Housing colour | Black |
| Control type | Buttons |
| On/off switch | Yes |
| LED indicators | Yes |
| Remote control included | Yes |
| Display | |
| Built-in display | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| Remote (IR) input | 1 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 43.8 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Heat dissipation | 202 BTU/h |
| Heat dissipation (max) | 205 BTU/h |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 262.3 mm |
| Height | 44 mm |
| Weight | 3.82 kg |
| Package weight | 5.2 kg |
| Package width | 338 mm |
| Package depth | 515 mm |
| Package height | 155 mm |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | Yes |
| Manual | Yes |
| IR receiver included | Yes |
