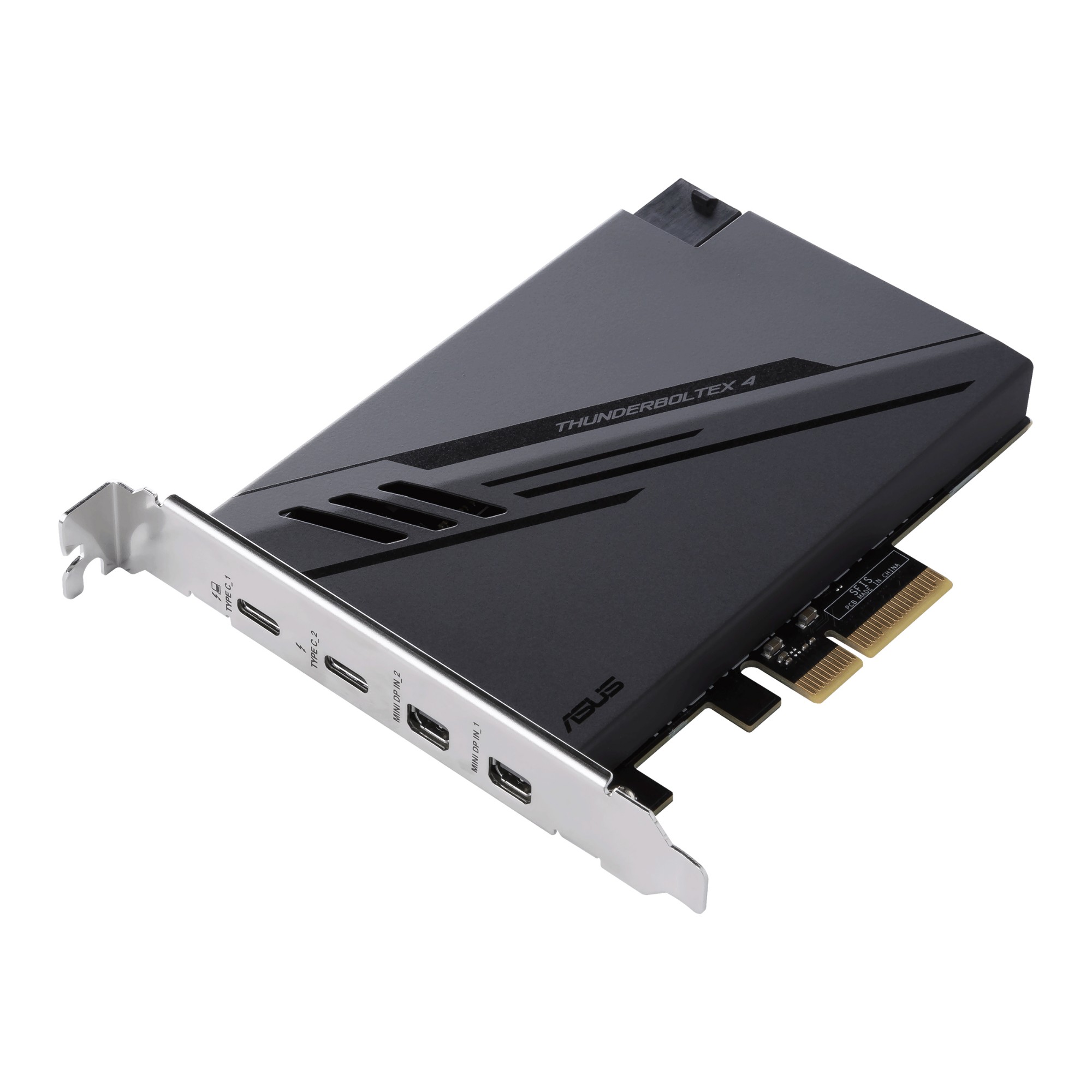

ASUS ThunderboltEX 4 interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
- Brand: ASUS
- Category:
- SKU: 90MC09P0-M0EAY0
- EAN: 4711081115243 0195553115254

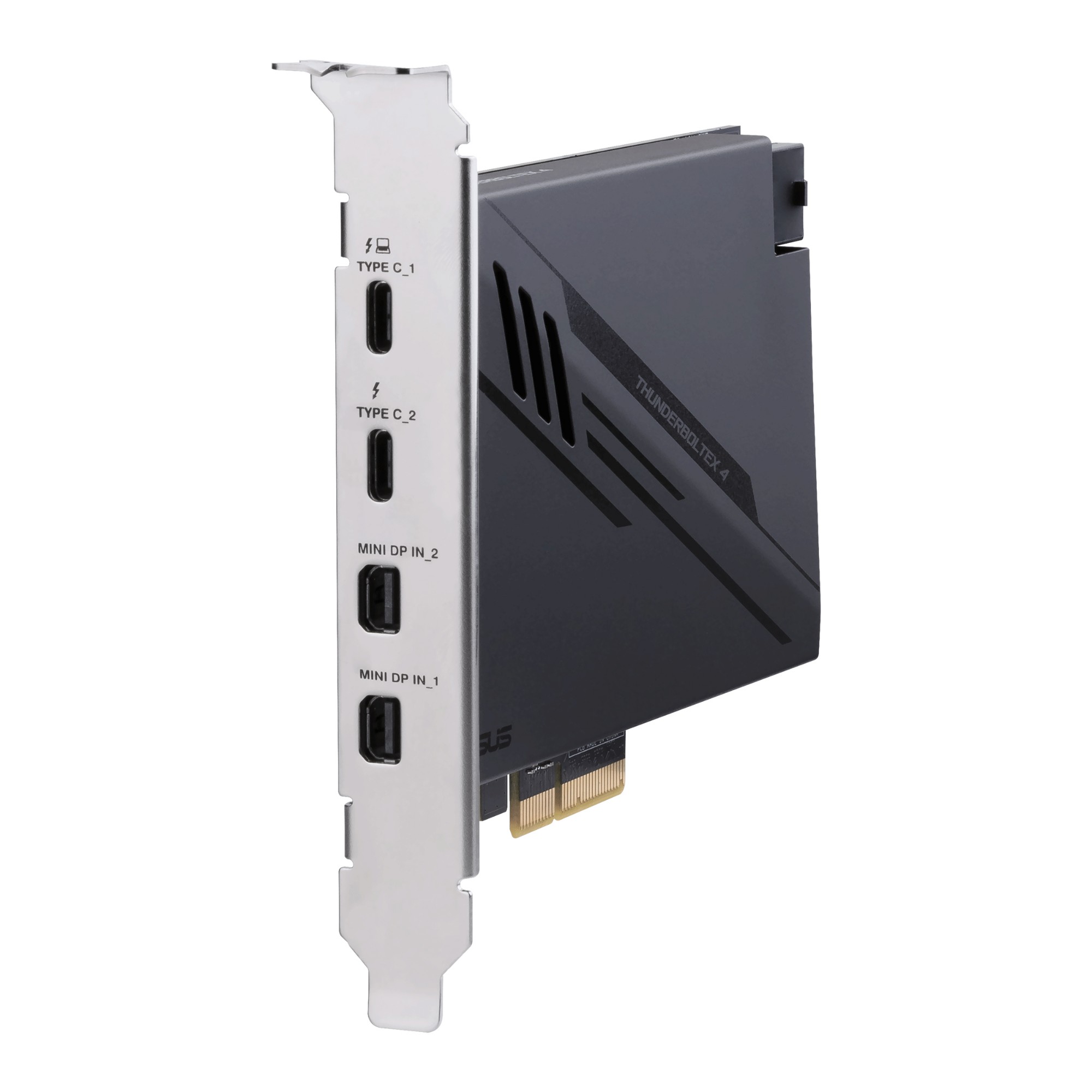

Intel Thunderbolt 4 JHL8540, 2 x USB Type-C (Thunderbolt 4), 2 x mini DisplayPort, 1 x 6-pin PCIe, 1 x USB 2.0 header, 1 x Thunderbolt header, PCIe 3.0 x4
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ThunderboltEX 4 - Thunderbolt adapter - PCIe 3.0 x4 - Thunderbolt 4 x 2 - black View on InTouch |
8570731 | |||
|
ThunderboltEX 4 Dual Thunderbolt 4 (USBC) DisplayPort 1.4 PCIe 3.0 x4 Expan |
CC-005-AS | |||
|
ThunderboltEX 4 |
90MC09P0-M0EAY0 | |||
|
ThunderboltEX 4 - Thunderbolt ada |
230734 | |||
|
ASUS Thunderbolt EX4 PCIe 3.0 x4 |
2110338 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EU Product - ASUS Thunderbolt EX4 PCIe 3.0 x4 |
90MC09P0-M0EAY0 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £176.00 | ||
| Amazon | New | £123.00 | ||
| Amazon | New | £109.99 | ||
| Amazon | New | £147.98 | ||
| Amazon | New | £109.99 | ||
| Amazon | New | £148.06 | ||
| Amazon | New | £110.99 |
Description
Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Output interface | Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2) |
| USB 2.0 ports quantity | 1 |
| Host interface | PCIe |
| Expansion card standard | PCIe 3.0 |
| Technical details | |
| Plug and Play | Yes |
| Chipset | Intel Thunderbolt 4 JHL8540 |
| Purpose | PC |
| Data transfer rate (max) | 40 Gbit/s |
| Compatibility | ASUS Intel 500 |
| Performance | |
| Plug and Play | Yes |
| Chipset | Intel Thunderbolt 4 JHL8540 |
| Purpose | PC |
| Data transfer rate (max) | 40 Gbit/s |
| Product colour | Black |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Black |
| Design | |
| Purpose | PC |
| Internal | Yes |
| Product colour | Black |
| Features | |
| Plug and Play | Yes |
| Chipset | Intel Thunderbolt 4 JHL8540 |
| Data transfer rate (max) | 40 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| System requirements | |
| Windows operating systems supported | Windows 10 x64 |
| Weight & dimensions | |
| Width | 117.7 mm |
| Depth | 180.5 mm |
| Packaging data | |
| Manual | Yes |
| Drivers included | Yes |
| Package type | Box |

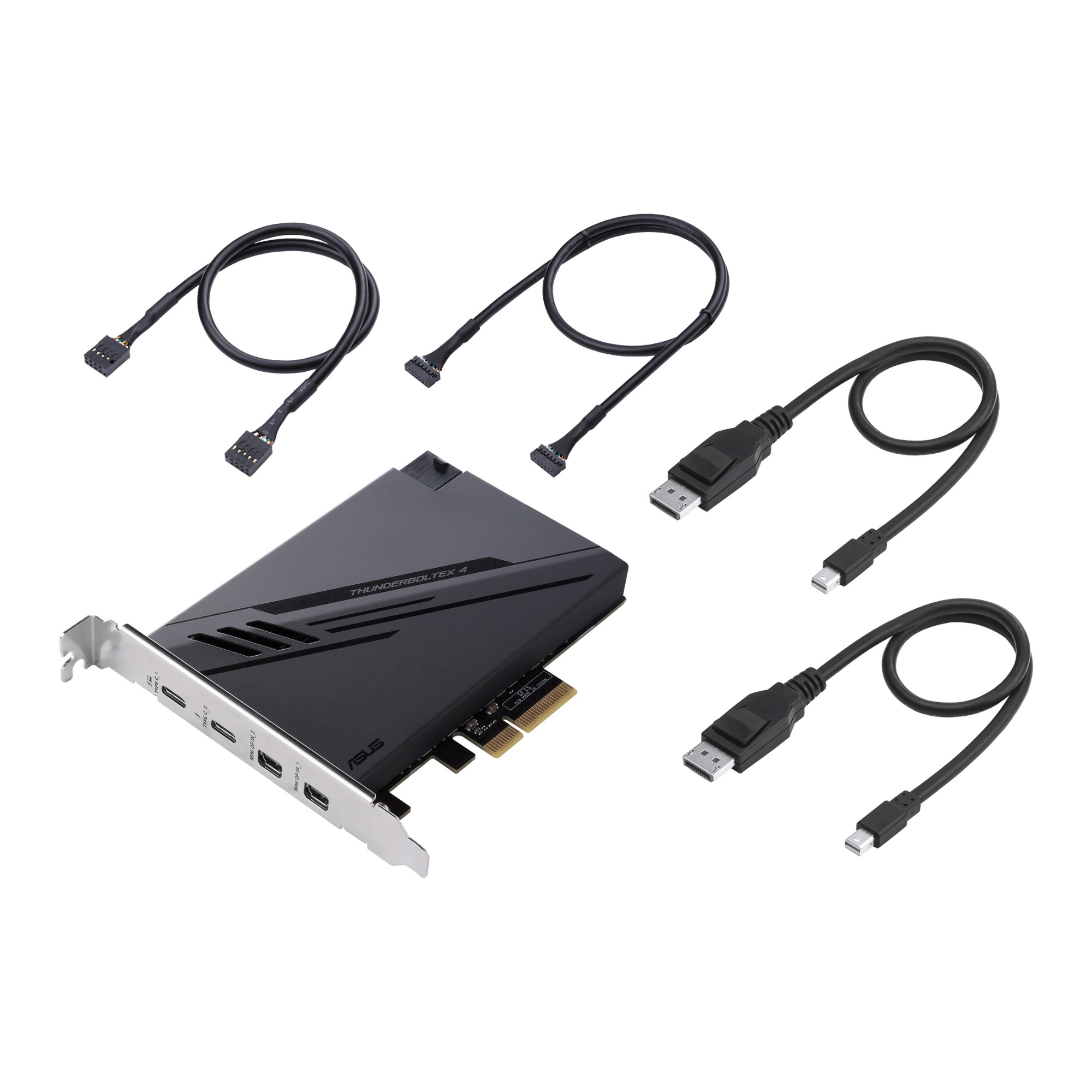

| Cables included | Mini DisplayPort, Thunderbolt, USB |
| Quantity | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Compatibility | ASUS Intel 500 |
| Maximum resolution | 7680 x 4320 pixels |
| Chipset | Intel Thunderbolt 4 JHL8540 |

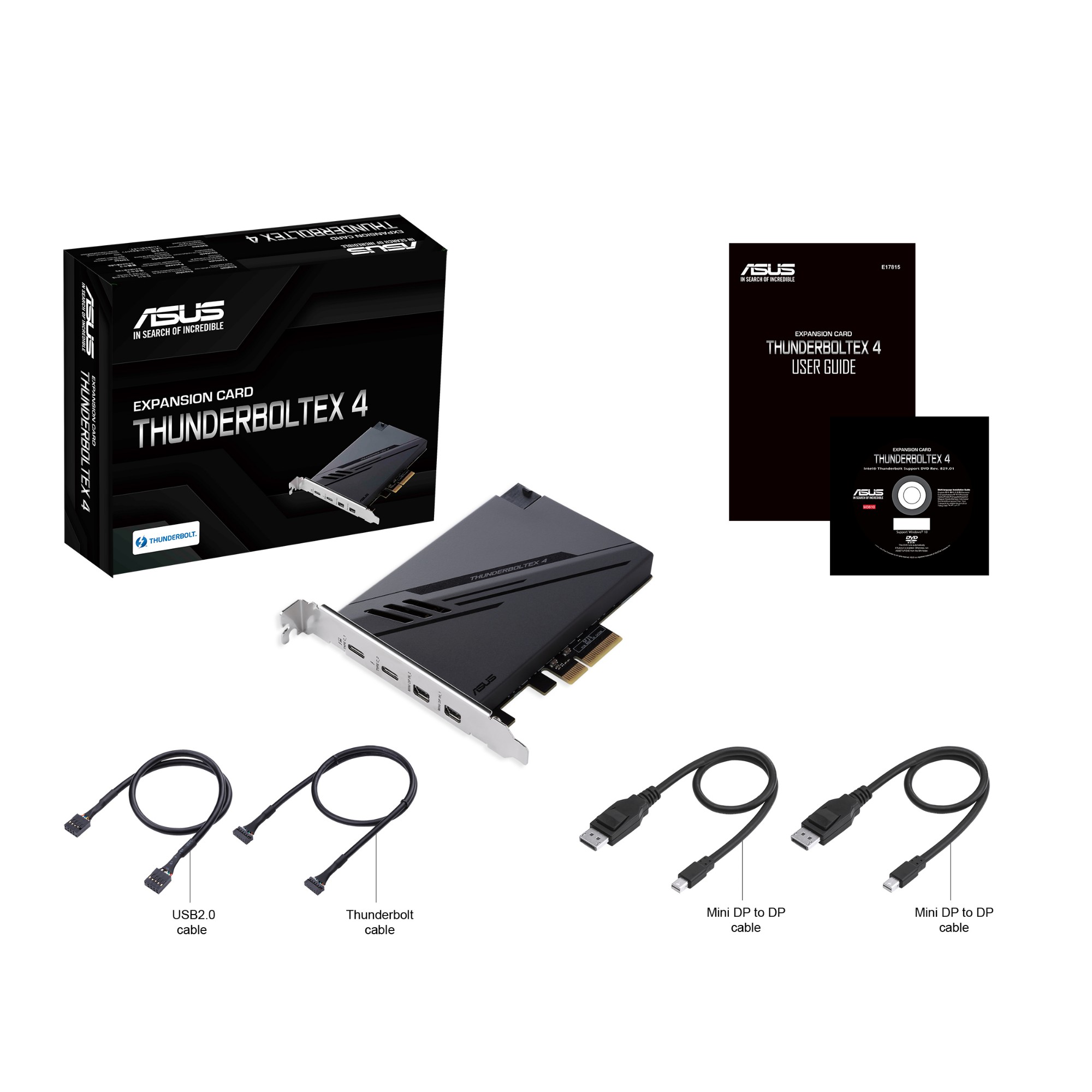

| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
| Package type | Box |
| Cables included | Mini DisplayPort, Thunderbolt, USB |
| Quantity | 1 |
