Asrock C2750D4I motherboard BGA 1283 Mini-ITX
- Brand: Asrock
- Category:
- SKU: C2750D4I
- EAN: 4717677322224 5054629407837 08 ...9407837 0804891033235 0565585971829 4053162379725 0851975732836 0163121395124 0807320214434 0832042333729more
Intel Avoton C2750 Octa-Core, DDR3 1600/1333, 8 x SATA3 6.0Gbps, 4 x SATA2 3.0, Dual Intel i210, 3 x USB 2.0, 1 x PCI-E x8
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
- Mini-ITX C2750D4I Motherbd |
C2750D4I |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | Used | £400.00 |
Description
- Intel Avoton C2750 Octa-Core Processor
- DDR3 1600/1333 Dual-channel Max. 64GB
- 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2750
- 4 x SATA3 6.0 Gb/s by Marvell SE9230, 2 x SATA3 6.0 Gb/s by Marvell SE9172
- Dual Intel i210 Gigabit LAN ports (with Teaming function)
- 3 x USB 2.0 ports (2 rear ports + 1 via headers or 1 rear ports + 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
- 1 x PCI-E x8 slot
- DDR3 1600/1333 Dual-channel Max. 64GB
- 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2750
- 4 x SATA3 6.0 Gb/s by Marvell SE9230, 2 x SATA3 6.0 Gb/s by Marvell SE9172
- Dual Intel i210 Gigabit LAN ports (with Teaming function)
- 3 x USB 2.0 ports (2 rear ports + 1 via headers or 1 rear ports + 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
- 1 x PCI-E x8 slot
Specifications
| Technical details | |
|---|---|
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Performance | |
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | BGA 1283 |
| Processor number of cores supported | 8 |
| Memory | |
| Supported memory types | DDR3-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.35,1.5 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported UDIMM clock speeds | 1333,1600 MHz |
| Maximum internal memory | 64 GB |
| Storage controllers | |
| Supported storage drive interfaces | SATA II, SATA III |
| Graphics | |
| On-board graphics card model | Aspeed AST2300 |
| On-board graphics card memory | 16 MB |
| Internal I/O | |
| Supported storage drive interfaces | SATA II, SATA III |
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 4 |
| ATX Power connector (24-pin) | Yes |

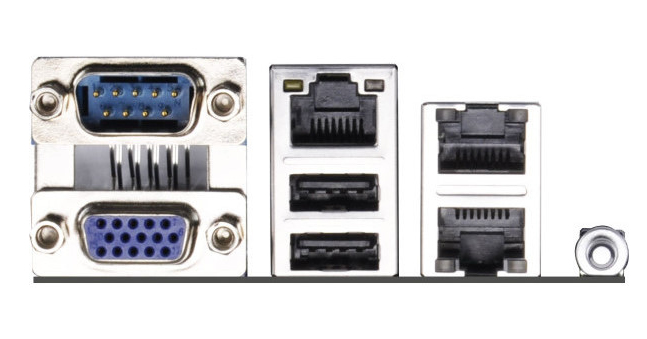

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I210, Realtek RTL8111E |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Expansion slots | |
| PCI Express x8 (Gen 2.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 1.1 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Other features | |
| PCI Express x8 (Gen 2.x) slots | 1 |
| Supported UDIMM clock speeds | 1333,1600 MHz |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
