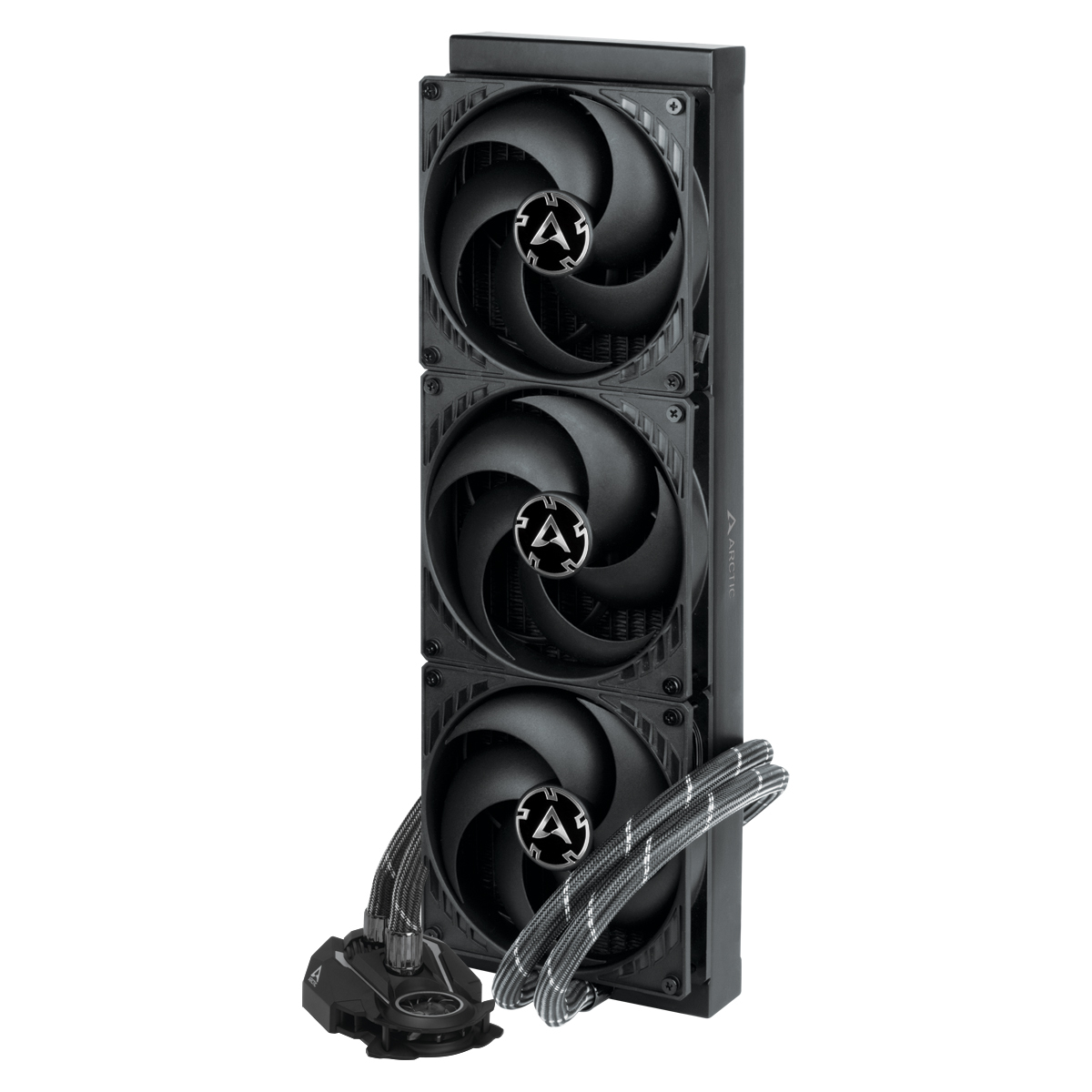

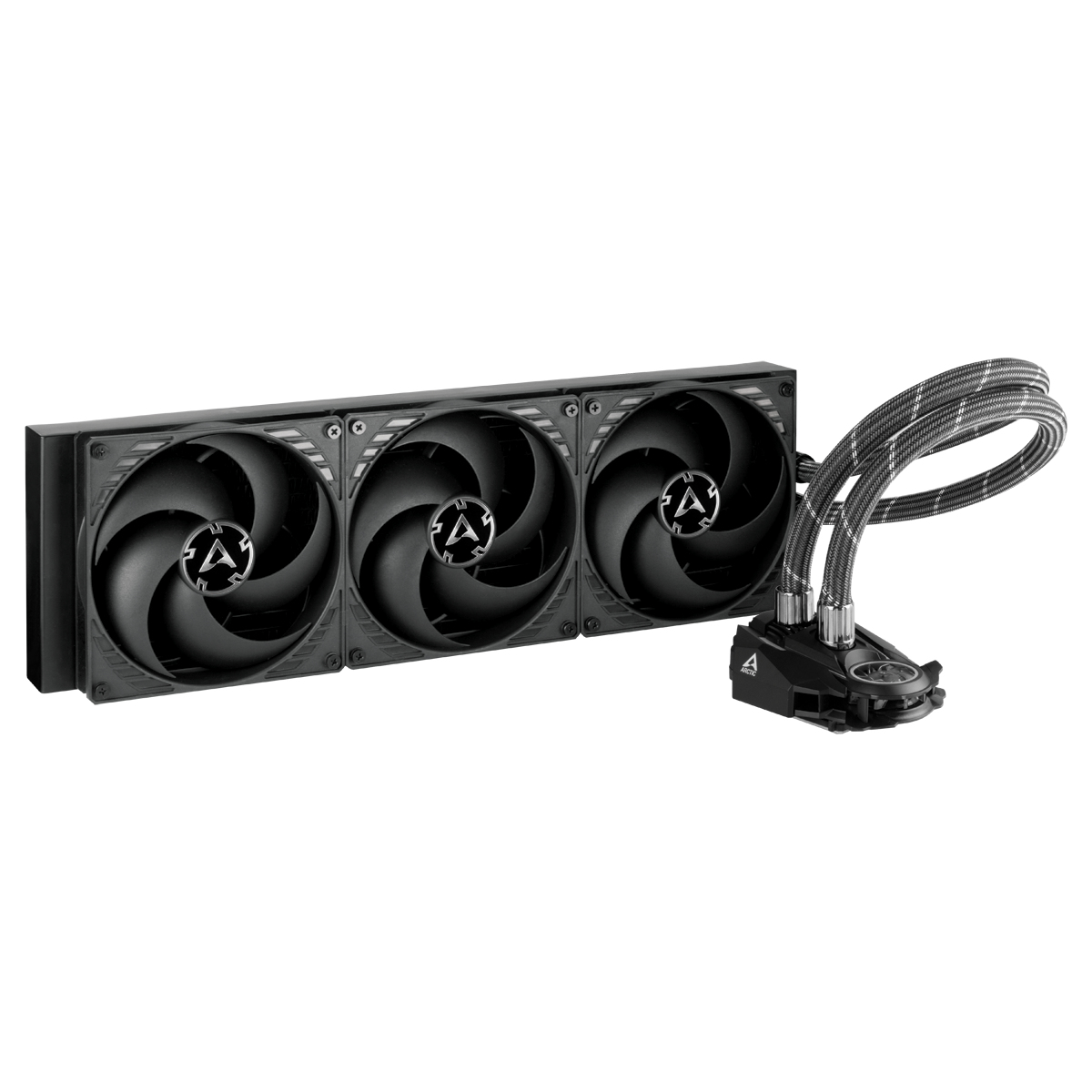

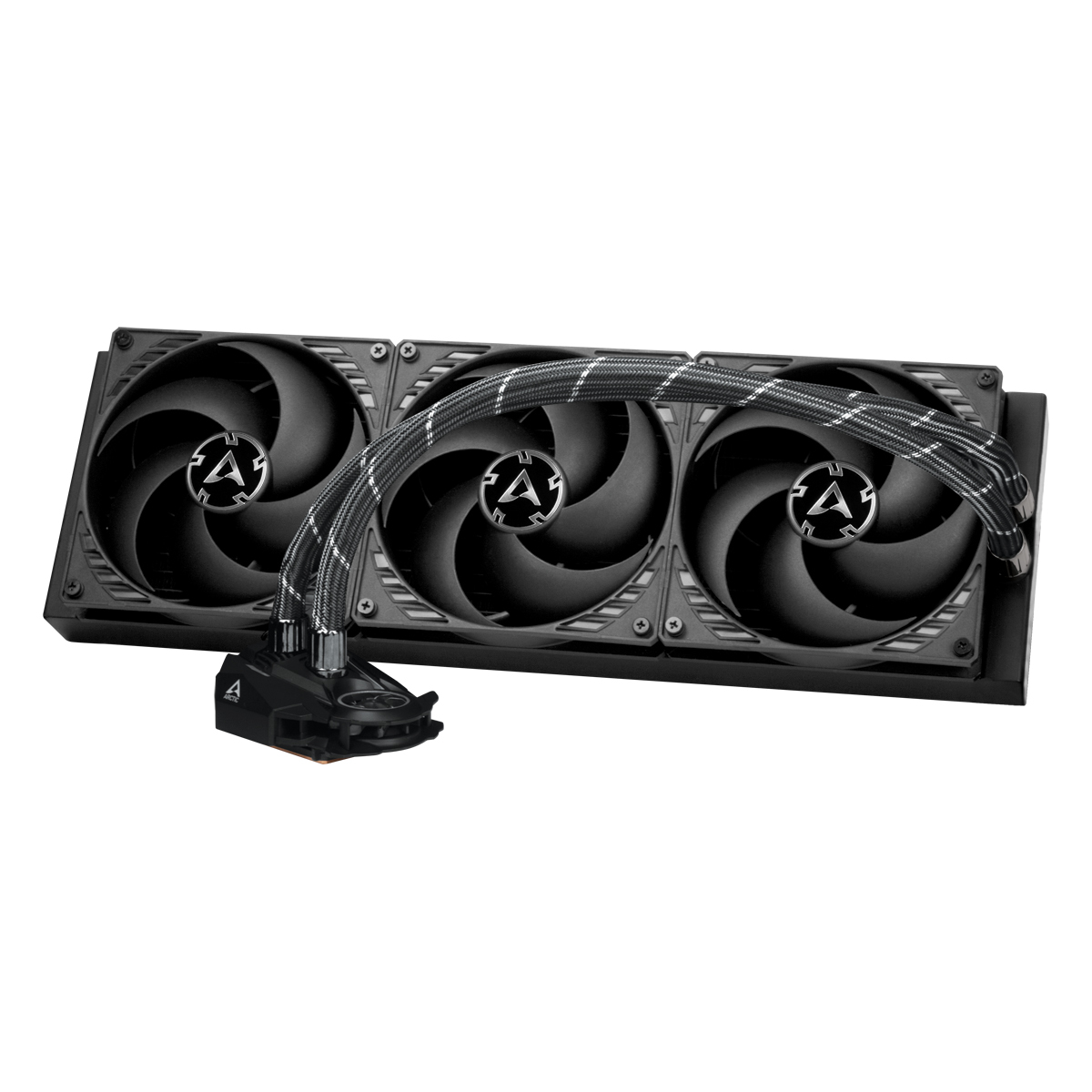

ARCTIC Liquid Freezer II - 420 - Multi Compatible All-In-One CPU Water Cooler
- Brand: ARCTIC
- Category:
- SKU: ACFRE00092A
- EAN: 4895213702812 0840033400619
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Liquid Freezer II High Performance CPU Water Cooler - 420mm |
HS-07M-AR | |||
|
Liquid Freezer Ii - 420 - |
ACFRE00092A |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £195.71 | ||
| Amazon | New | £170.32 |
Reasons To Buy
«SECOND GENERATION PRICE-PERFORMANCE-CHAMP»
The Liquid Freezer II has been tested numerous times by independent reviewers and has been awarded for its performance, price and quiet operation. Dabei übertrifft er alle Erwartungen und setzt neue Maßstäbe im Bereich der Kompaktwasserkühlung. It exceeds all expectations and has set new standards in the field of compact water cooling. The Liquid Freezer II was also awarded the "European Hardware Award 2020" for the best liquid cooler in the 240 variant.

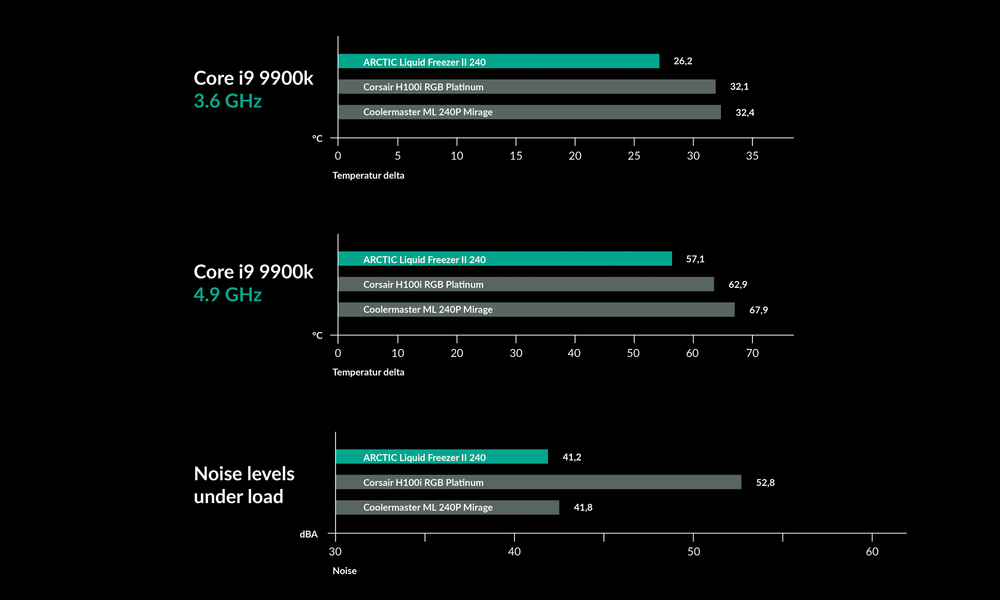

OUTSTANDING PERFORMANCE
The all-in-one cooling handles the entire cooling requirements - even of the most powerful processors from Intel® and AMD®. It performs effortlessly with over 200 W of heat to be dissipated, which is why your CPU can be kept cool even in extreme overlocking. When it comes to competitive products from leading cooler manufacturers, the Liquid Freezer II leaves them behind in terms of both performance and noise level.

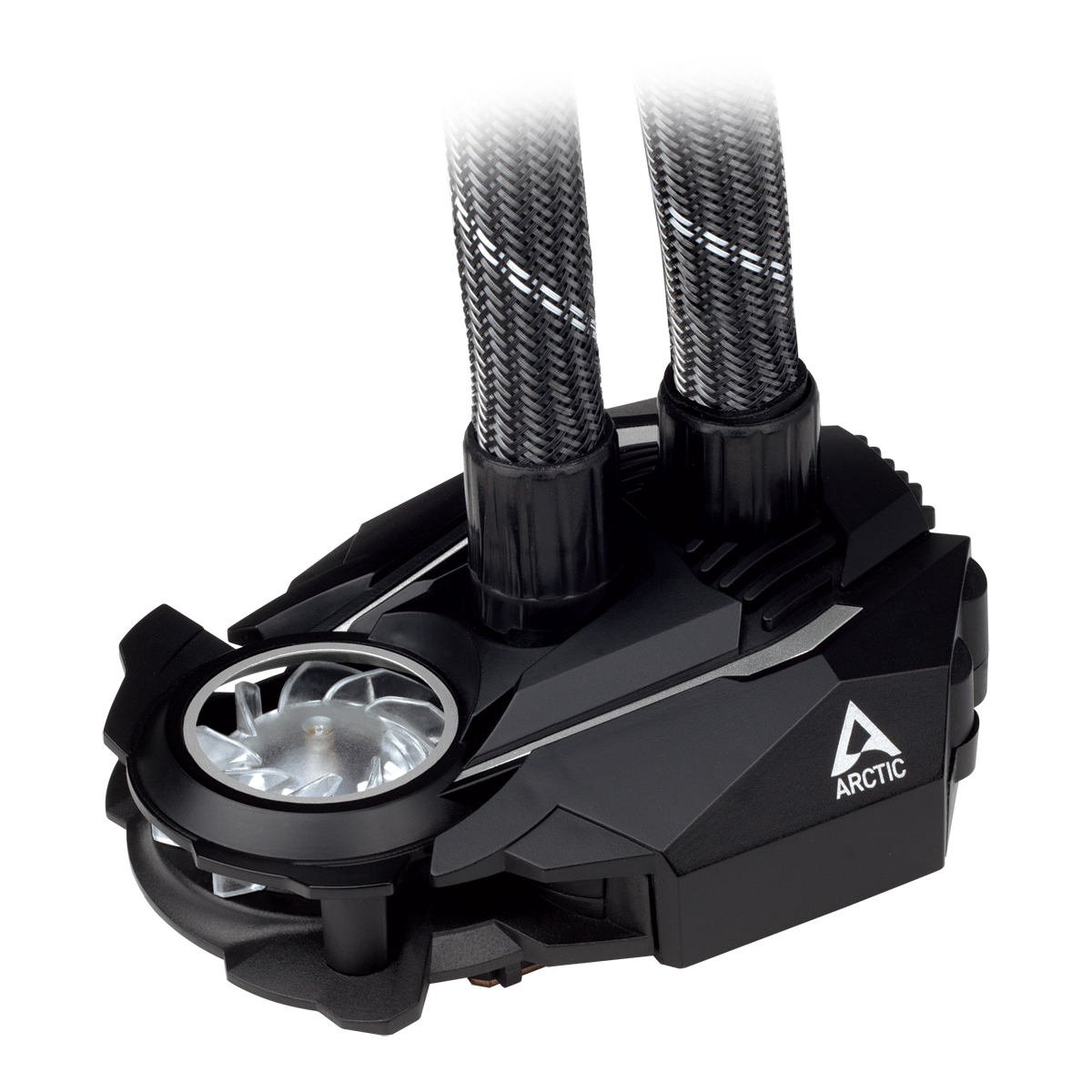

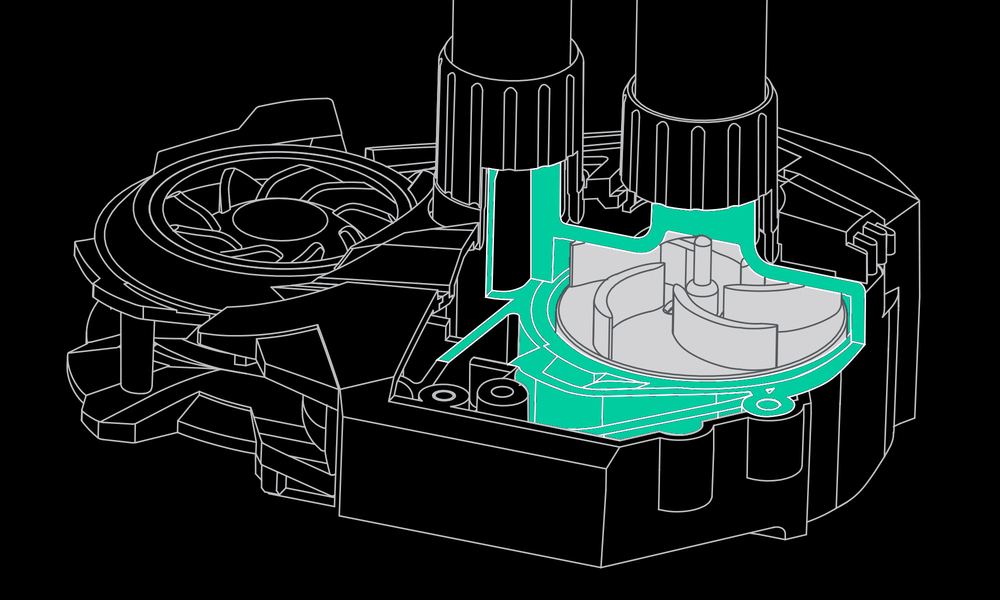

EFFICIENT, IN-HOUSE DEVELOPED PUMP
Unlike many of our competitors, we went to great lengths to develop the water pump. The result is greatly reduced humming and higher efficiency. Like the other components, the pump is also PWM controlled. This leads to a significantly lower noise level at low and typical loads, but also to much lower power consumption, with a maximum of of 0.9 W at no load, 2.5 W under typical load and a maximum of 5.3 W under full load for the entire AiO.

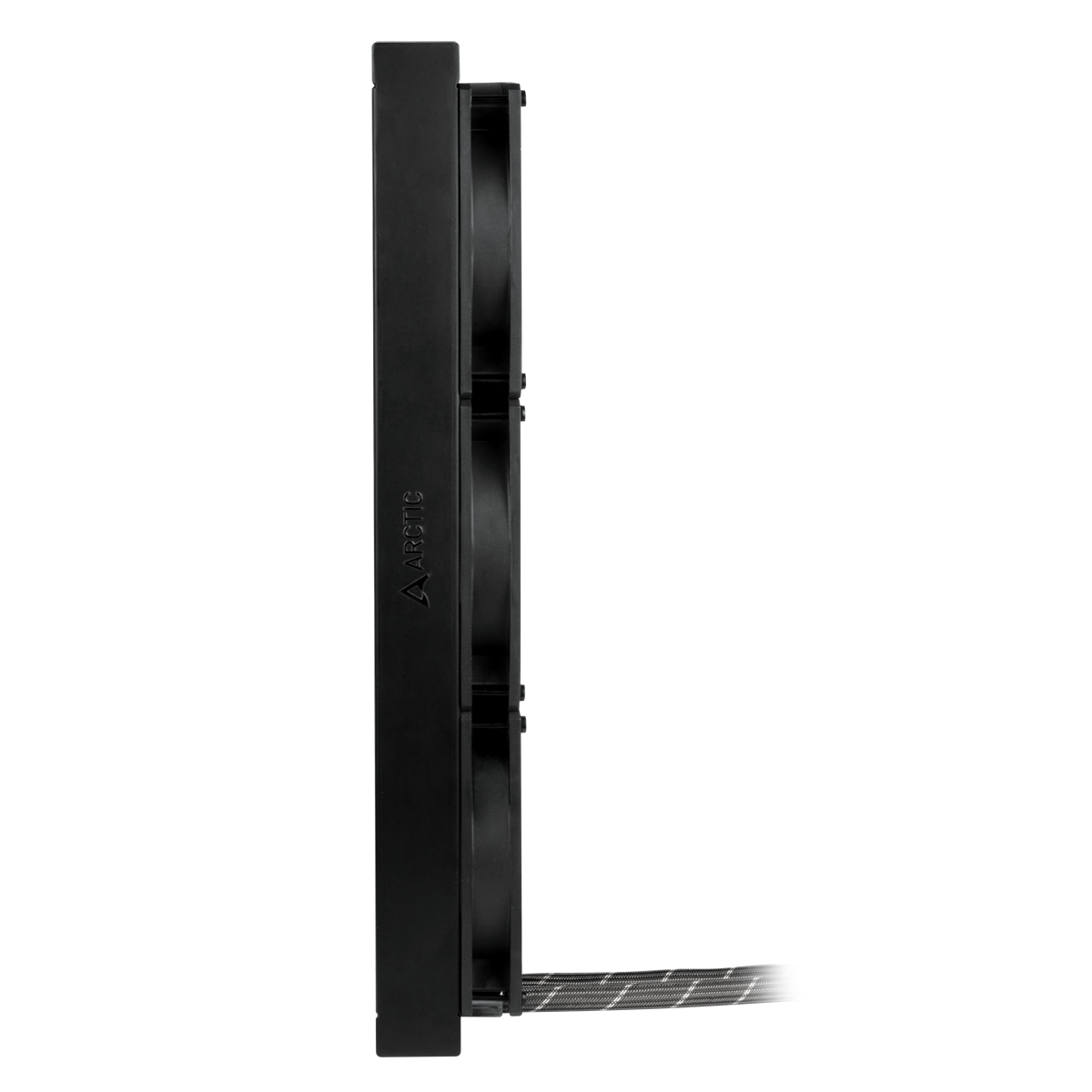

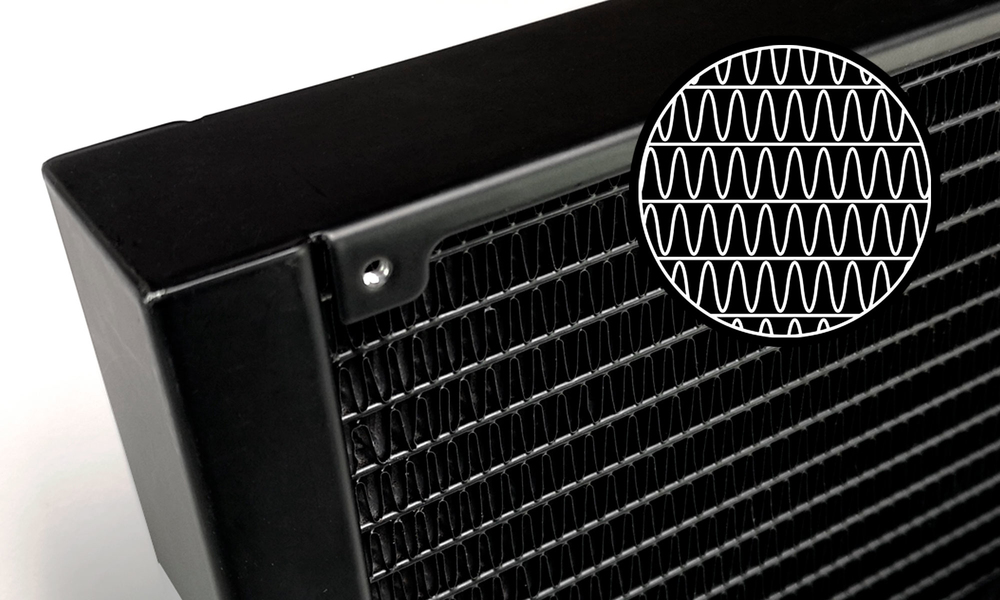

PREMIUM CLASS RADIATOR
Unlike most other all-in-one liquid cooling manufacturers, we rely on 38 mm thick radiators with a high fin density. This means that a larger amount of water can be used in the circuit, and the cooling surface can be significantly increased.<br><br>Water has a much higher heat capacity than aluminum or copper. This leads to a slower and up to 5 °C lower temperature increase in the temporary turbo mode of modern CPUs.

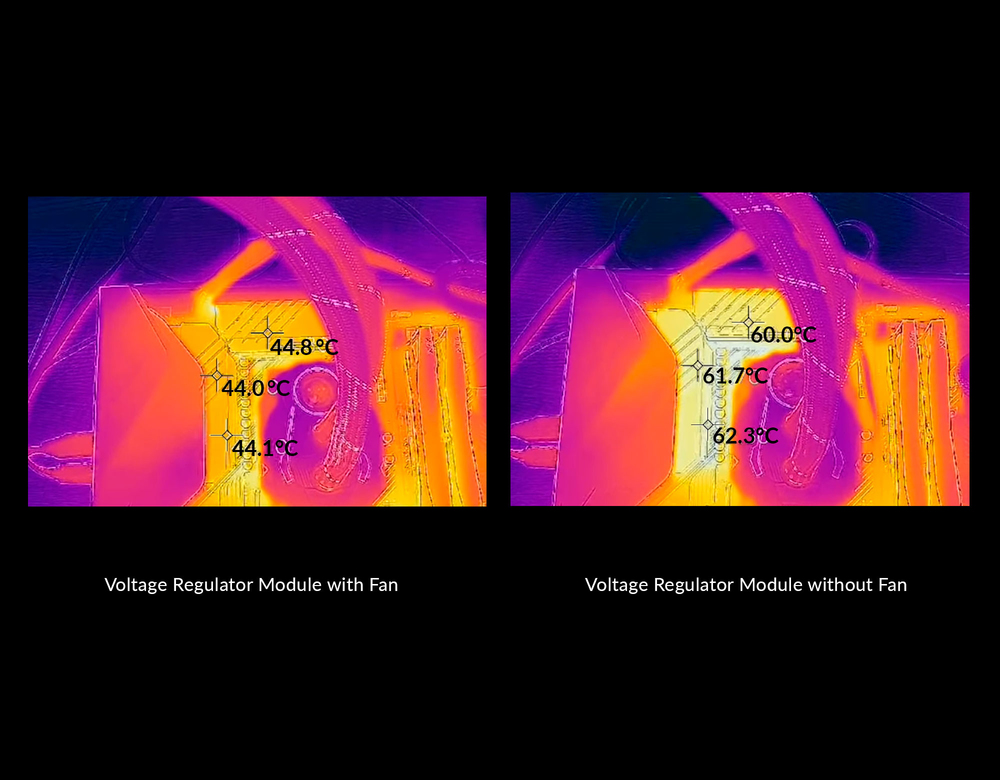

SMOOTH VRM FAN
Small fans have a reputation for being particularly loud and not very durable. However, we have developed a quiet and durable diagonal fan especially for the Liquid Freezer II and are 100 % convinced that this 40 mm fan is just as durable as our other case fans. In the unlikely event that it should fail, our customer service team will send you a replacement free of charge and easily, without a need to replace the entire unit.<br><br>The fan is PWM-controlled and can cool your voltage transformers and the base area almost inaudibly by up to 15 °C. This is especially effective in overclocking scenarios, inadequate VRM cooling or in housings with poor airflow, thus permitting continuously high loads. If sufficient VRM cooling is available, it can be switched off at will.

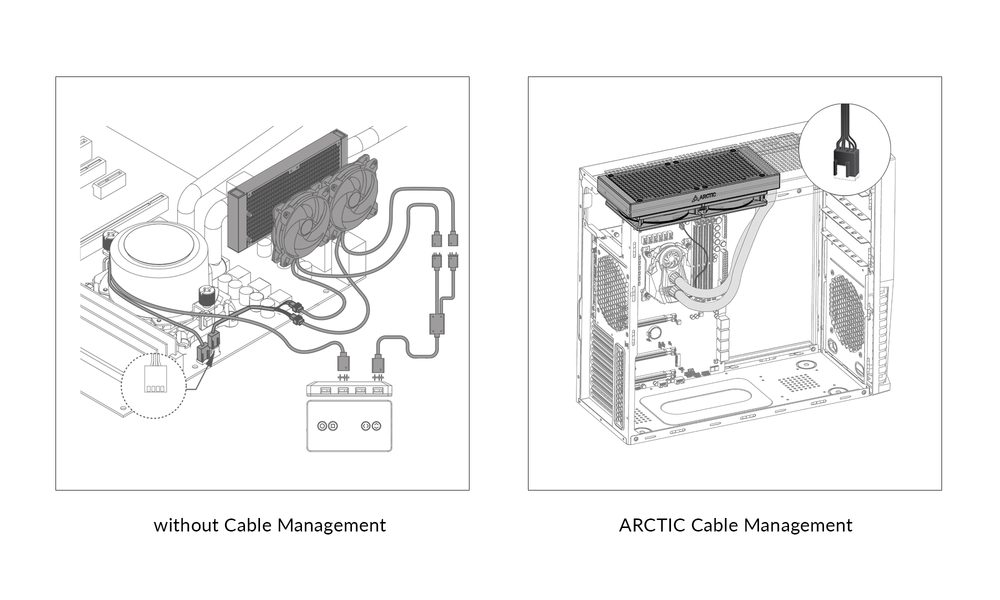

HIGH QUALITY HOSES WITH INTEGRATED CABLE MANAGEMENT
The fiber-reinforced, long EPDM tubing of the Liquid Freezer II enables installation even in large cases and effectively prevents the cooling liquid from evaporating, so that you do not have to worry about refilling the compact water cooling system.<br><br>It also hides the cables of your radiator fans thanks to sophisticated cable management. So you only have to connect a plug to the mainboard, saving valuable time during installation. In the end, you won't need to hide any more cables and your view is reduced to just the essentials.

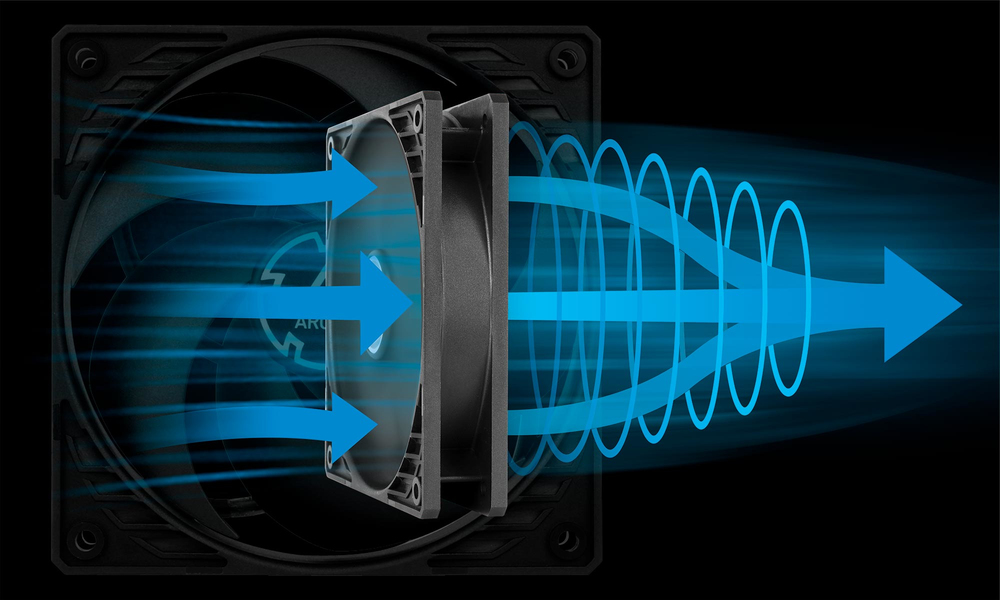

FAN OPTIMIZED ON STATIC PRESSURE
The popular P-fans are already installed on the compact water cooling from the factory, lending the following advantages:<br>• High static pressure for improved cooling performance 2,4 mm H2O<br>• Extended speed range 200 - 1700 RPM<br>• Lower power consumption 0,12 A<br>• Less vibration reduced by 95 %<br>• Improved lifespan 10 year guarantee<br>• High quality fluid dynamic bearing<br>• PWM for synchronous pump/fan control
Description
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | All-in-one liquid cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket AM5 |
| Maximum airflow | 72.8 cfm |
| Maximum air pressure | 2.4 mmH2O |
| Number of fans | 3 fan(s) |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| VRM fan speed (min) | 1000 RPM |
| VRM fan speed (max) | 3000 RPM |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2000 RPM |
| Fan speed (min) | 200 RPM |
| Fan speed (max) | 1700 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 3 fan(s) |
| Product colour | Black |
| Radiator material | Aluminium |
| Base plate material | Copper |
| Technical details | |
| Type | All-in-one liquid cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket AM5 |
| Maximum airflow | 72.8 cfm |
| Maximum air pressure | 2.4 mmH2O |
| Number of fans | 3 fan(s) |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| VRM fan power consumption | 2.7 W |
| Pump power consumption | 1 W |
| Fan voltage | 12 V |
| Fan current | 0.12 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 140 x 27 x 140 mm |
| Package depth | 155 mm |
| Package width | 473 mm |
| Package height | 170 mm |
| Package weight | 2.73 kg |
| Weight | 1.98 kg |
| Radiator width | 45.8 cm |
| Radiator depth | 13.8 cm |
| Radiator height | 3.8 cm |
| Tube length | 45 cm |
| Tube inner diameter | 6 mm |
| Tube diameter | 1.24 cm |
| Pump width | 9.8 cm |
| Pump depth | 5.3 cm |
| Pump height | 7.8 cm |
| Packaging data | |
| Package depth | 155 mm |
| Package width | 473 mm |
| Package height | 170 mm |
| Package weight | 2.73 kg |
| Package type | Box |

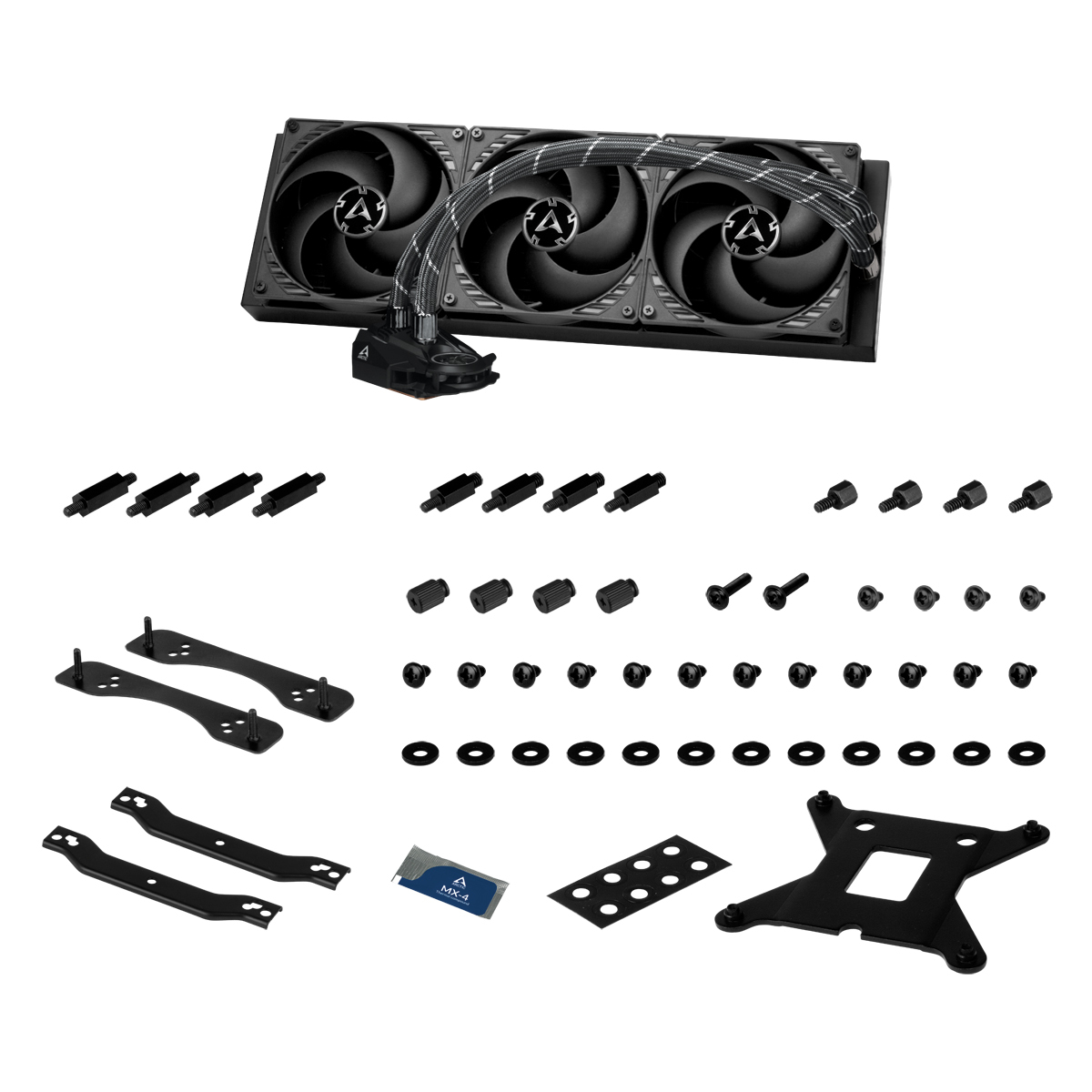

| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Thermal grease | Yes |
| CPU bracket(s) | Yes |
| Other features | |
| Country of origin | China |
| Thermal grease | Yes |
| Harmonized System (HS) code | 84733080 |
