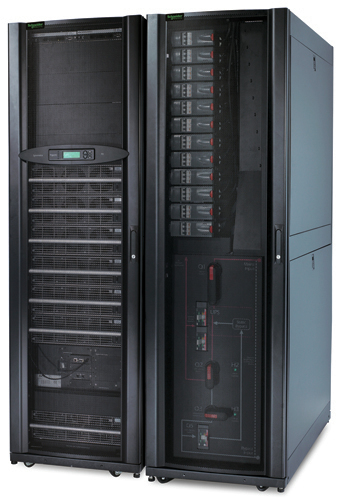

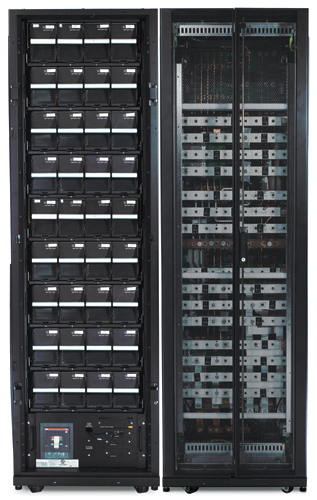

APC Symmetra PX 96kW Scalable, 400V with Modular Power Distribution
- Brand: APC
- Category:
- SKU: SY96K96H-PD
- EAN:
Symmetra PX 96kW Scalable, 400V with Modular Power Distribution
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
SYMMETRA PX 96KW SCALABLE View on Xvantage |
2707738 | |||
| Ingram Micro CS |
SYMMETRA PX 96KW SCALABLE |
2707738 |
Related Products
-
Category: Maintenance & Support Fees
-
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions
Description
A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With scalable power, distribution and run-time, this UPS grows with your data center up to 96 kW/96 kVA. Suitable for small to medium data centers or individual zones of large data centers.
Specifications
| Power | |
|---|---|
| Output power | 96000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 400 V |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 96 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Noise level | 63 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 96000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 400 V |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 63 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 96 kVA |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| AC outlets quantity | 1 AC outlet(s) |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Power plug | Terminal |
| Battery | |
| Battery voltage | 192 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3.5 h |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Package width | 1696 mm |
| Package depth | 1210 mm |
| Package height | 2140 mm |
| Weight | 1814 kg |
| Width | 1200 mm |
| Package weight | 1963 kg |
| Height | 1991 mm |
| Depth | 1070 mm |
| Packaging data | |
| Package width | 1696 mm |
| Package depth | 1210 mm |
| Package height | 2140 mm |
| Package weight | 1963 kg |
