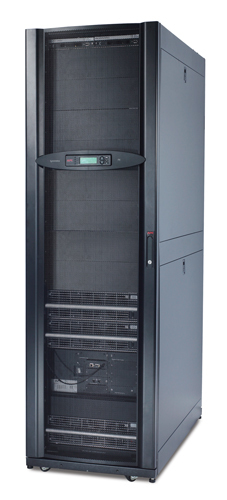

APC Symmetra PX 32kW Scalable to 96kW, without Bypass, Distribution, or Batteries, 400V
- Brand: APC
- Category:
- SKU: SY32K96H-NB
- EAN:
Symmetra PX 32kW Scalable to 96kW, without Bypass, Distribution, or Batteries, 400V
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
SY32K96H-NB |
APC-SY32K96H-NB | |||
|
SYMMETRA PX 32KW SCALABLE View on Xvantage |
270B623 | |||
| Ingram Micro CS |
SYMMETRA PX 32KW SCALABLE |
270B623 |
Related Products
-
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions
Description
A high-efficiency, modular 3-phase UPS that offers internal redundancy for your data center requirements. With scalable power, this UPS grows with your data center up to 160 kW/160 kVA. Pair with the Classic Battery Cabinet and the wall mount or 300 mm maintenance bypass panel to complete your power protection solution. Suitable for small to medium data centers or individual zones of large data centers.
Specifications
| Power | |
|---|---|
| Output power | 32000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 400 V |
| Maximum current | 59 A |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Output power capacity | 32 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of phases | 3 |
| LED indicators | Status |
| Power protection features | Short circuit |
| Noise level | 63 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 32000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 400 V |
| Maximum current | 59 A |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Short circuit |
| Power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 63 dB |
| Input current Total Harmonic Distortion (THD) | 5% |
| Audible alarm(s) | Yes |
| Output power capacity | 32 kVA |
| Input frequency | 40/70 Hz |
| Number of phases | 3 |
| Ports & interfaces | |
| SmartSlot | Yes |
| Power plug | Terminal |
| RS-232 ports | 1 |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 42U |
| Form factor | Rackmount |
| LED indicators | Status |
| Product colour | Black |
| Certification | CE, EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3, FCC 15 A, ISO 14001, ISO 9001, VFI-SS-111 |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output voltage | 230 V |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Certificates | |
| Certification | CE, EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3, FCC 15 A, ISO 14001, ISO 9001, VFI-SS-111 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Package width | 848 mm |
| Package depth | 1210 mm |
| Package height | 2140 mm |
| Weight | 382 kg |
| Width | 600 mm |
| Package weight | 421 kg |
| Height | 1991 mm |
| Depth | 1070 mm |
| Packaging data | |
| Package width | 848 mm |
| Package depth | 1210 mm |
| Package height | 2140 mm |
| Package weight | 421 kg |
| Other features | |
| Output voltage | 230 V |
| Number of phases | 3 |
