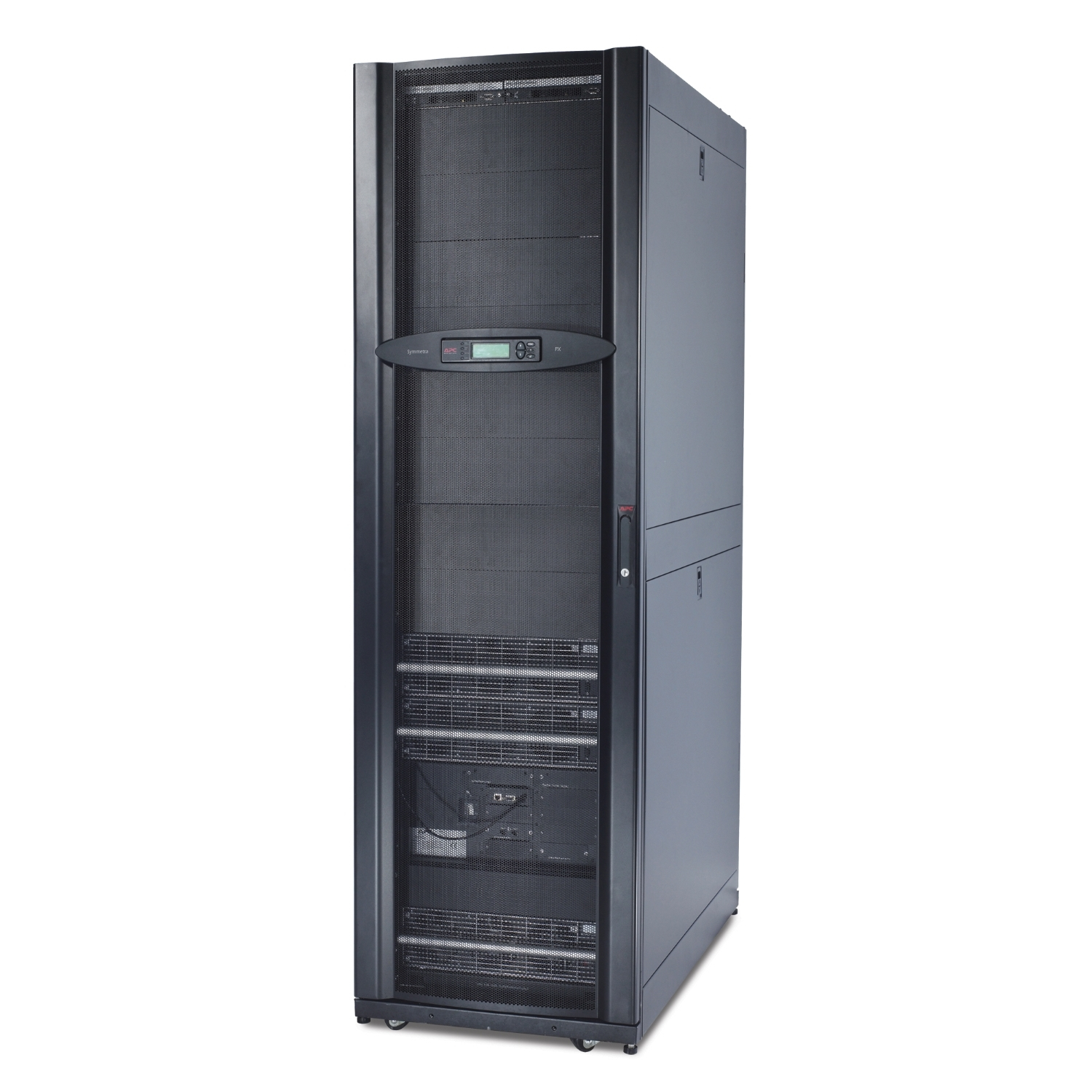

APC Symmetra PX 32kW Scalable to 160kW, without Bypass, Distribution, or Batteries, 400V

Symmetra PX 32kW Scalable to 160kW, without Bypass, Distribution, or Batteries, 400V

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

SYMMETRA PX 32KW SCALABLE TO

View on Xvantage open_in_new 		CO91970 Register free see stock
EET

Uninerrupile Power Supply

 SY32K160H-NB
Ingram Micro CS

SYMMETRA PX 32KW SCALABLE TO

 CO91970

Description

A high-efficiency, modular 3-phase UPS that offers internal redundancy for your data center requirements. With scalable power, this UPS grows with your data center up to 160 kW/160 kVA. Pair with the Classic Battery Cabinet and the wall mount or 300 mm maintenance bypass panel to complete your power protection solution. Suitable for small to medium data centers or individual zones of large data centers.

Specifications

Power
Output frequency regulation+/- 3 Hz
Input power factor0.99
Output power160000 W
Input operation voltage (min)340 V
Input operation voltage (max)477 V
Output operation voltage (min)230 V
Output operation voltage (max)415 V
Maximum current80 A
Efficiency95%
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)5%
Input current Total Harmonic Distortion (THD)5%
Output power capacity160 kVA
Performance
Audible alarm modesAlarm when on battery, Low battery alarm
UPS topologyDouble-conversion (Online)
WaveformSine
Number of output phases3
LED indicatorsYes
Power protection featuresOverload, Short circuit
Noise level63 dB
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
Audible alarm modesAlarm when on battery, Low battery alarm
UPS topologyDouble-conversion (Online)
WaveformSine
Output frequency regulation+/- 3 Hz
Number of output phases3
Input power factor0.99
Output power160000 W
Input operation voltage (min)340 V
Input operation voltage (max)477 V
Output operation voltage (min)230 V
Output operation voltage (max)415 V
Maximum current80 A
Efficiency95%
Emergency Power Off (EPO)Yes
Power protection featuresOverload, Short circuit
Output voltage Total Harmonic Distortion (THD)5%
Noise level63 dB
Input current Total Harmonic Distortion (THD)5%
Audible alarm(s)Yes
Output power capacity160 kVA
Input frequency40/70 Hz
Ports & interfaces
SmartSlotYes
AC outlet typesHard Wire 5-wire (3PH + N + G)
RS-232 ports1
Battery
Replacement battery cartridgeSYPBV96K160H
Design
International Protection (IP) codeIP20
Rack capacity42U
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationEN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 15000 m
Technical details
Output frequency50/60 Hz
Certificates
CertificationEN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111
Packaging content
ManualYes
Weight & dimensions
Package width848 mm
Package depth1210 mm
Package height2140 mm
Weight382 kg
Width600 mm
Package weight421 kg
Height1991 mm
Depth1070 mm
Packaging data
ManualYes
Package width848 mm
Package depth1210 mm
Package height2140 mm
Package weight421 kg
