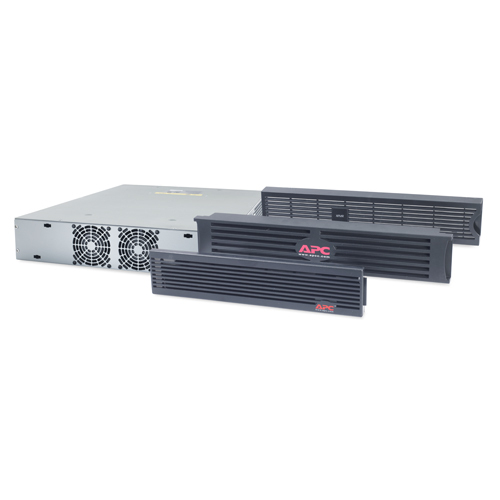

APC Step-Down Transformer RM 2U 208V IN 120V OUT w/Hardwire Input/Output

APC Step-Down Transformer RM 2U 208V IN 120V OUT w/Hardwire Input/Output

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

STEP-DOWN TRANSFORMER RM 2U US-

View on Xvantage open_in_new 		2707775 Register free see stock
Ingram Micro CS

STEP-DOWN TRANSFORMER RM 2U US-

 2707775

Description

Transformer for Step-down or Step-up or Isolation
Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer

Meets UL Requirements

Specifications

Design
Product colourBlack
CertificationCSA,UL 1778,UL Listed
Ports & interfaces
Output connections1x Hard Wire 3-wire (H N + G)
Input connection typeHard Wire 3-wire (2PH + G)
Features
CertificationCSA,UL 1778,UL Listed
Power
Nominal input voltage208 V
Nominal output voltage120 V
Maximum input current per phase26 A
Load capacity5000 VA
Certificates
CertificationCSA,UL 1778,UL Listed
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)0 - 95%
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Weight43.2 kg
Width445 mm
Depth610 mm
Height89 mm
Package width622 mm
Package depth953 mm
Package height254 mm
Package weight50 kg
Packaging data
Package width622 mm
Package depth953 mm
Package height254 mm
Package weight50 kg
