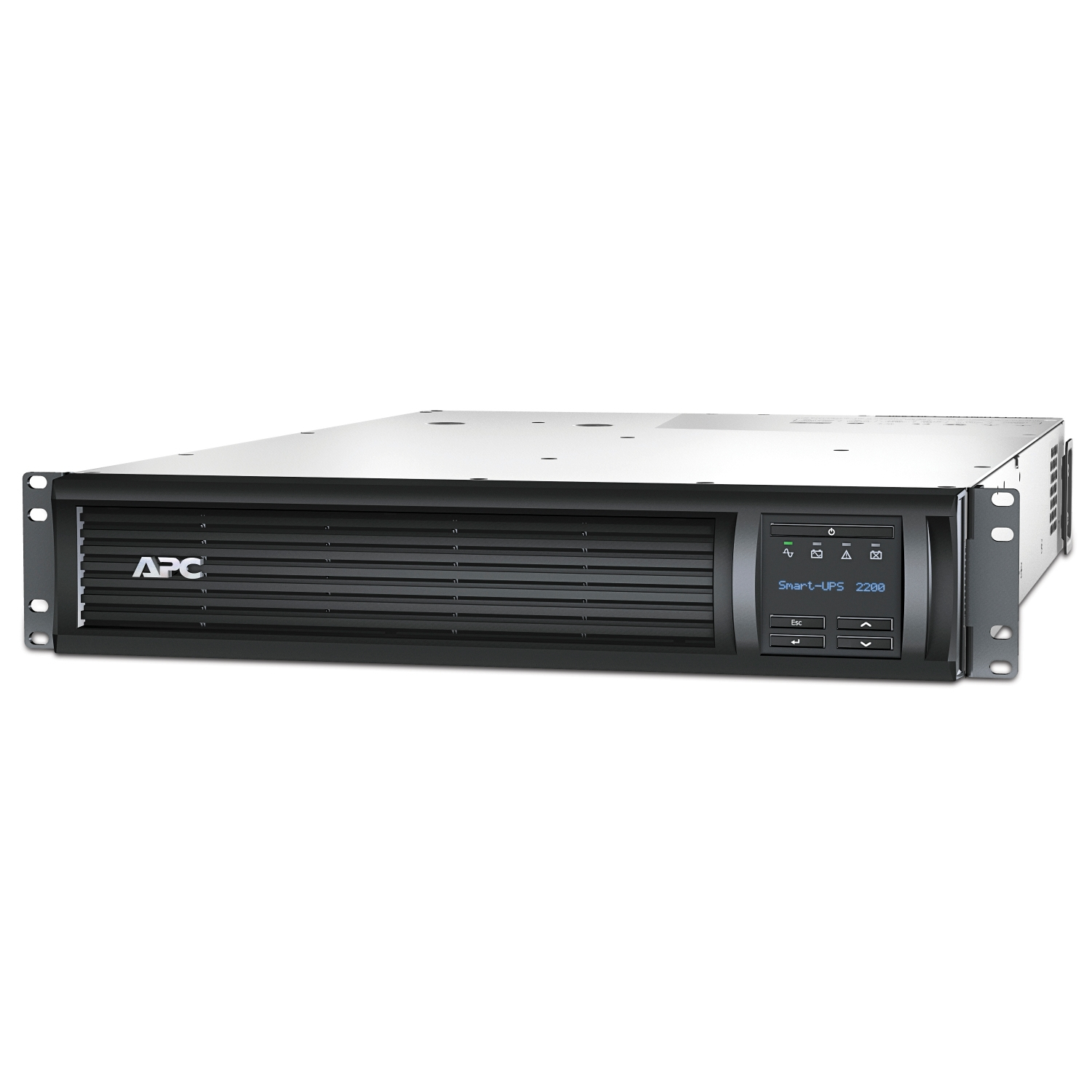

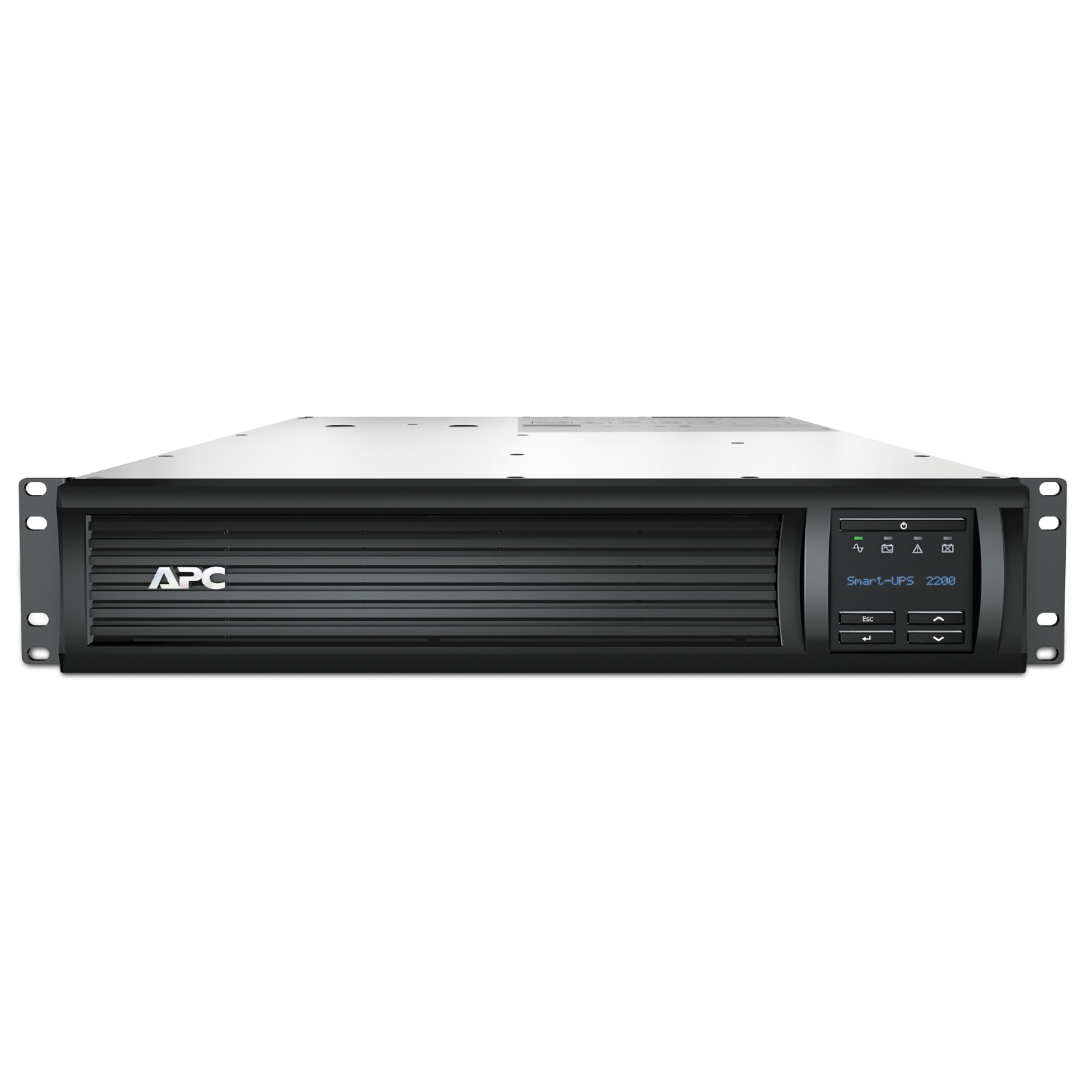

APC Smart-UPS, Line Interactive, 2200VA, Rackmount, 120V, 10x NEMA 5-15R outlets, SmartSlot, Auto Sense Voltage 120V/230V, AVR, LCD
- Brand: APC
- Category:
- SKU: SMT2200R2X167
- EAN: 0731304423393
Smart-UPS, Line Interactive, 2200VA, Rackmount, 120V, 10x NEMA 5-15R outlets, SmartSlot, Auto Sense Voltage 120V/230V, AVR, LCD
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
S-UPS LINEIN 2200VA RCK 120V 10X NEM View on Webshop |
SMT2200R2X167 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
S-UPS LINEIN 2200VA RCK 120V 10X NEM |
CLSMT2200R2X167 | |||
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS with 2-post rack kit provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. It has a embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
| Power | |
|---|---|
| Output power | 1980 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 1366 J |
| Output power capacity | 2.2 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 6 ms |
| LED indicators | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 6 ms |
| Output power | 1980 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 1366 J |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 2.2 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 480 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Design | |
| Rack capacity | 0U |
| Form factor | Rackmount |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CSA, REACH, RoHS, WEEE |
| Control type | Buttons |
| Display type | LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Doesn't contain | Mercury |
| Warranty period | 3 year(s) |
| Compliance certificates | REACH, RoHS, WEEE |
| Certificates | |
| Certification | CSA, REACH, RoHS, WEEE |
| Compliance certificates | REACH, RoHS, WEEE |
| Packaging content | |
| Manual | Yes |
| Sustainability | |
| Doesn't contain | Mercury |
| Weight & dimensions | |
| Package width | 980 mm |
| Package depth | 600 mm |
| Package height | 254 mm |
| Weight | 42.4 kg |
| Width | 432 mm |
| Package weight | 49.7 kg |
| Height | 86 mm |
| Depth | 683 mm |
| Packaging data | |
| Manual | Yes |
| Package width | 980 mm |
| Package depth | 600 mm |
| Package height | 254 mm |
| Package weight | 49.7 kg |
| Logistics data | |
| Warranty period | 3 year(s) |
