APC Smart-UPS 750VA 120V SHIPBOARD

APC Smart-UPS 750VA 120V SHIPBOARD

Smart-UPS 750VA 120V SHIPBOARD

Trade Prices

Distributor Product SKU Stock Updated Price
Hammer Distribution

SMT750X93

 APC-SMT750X93 Register free see stock
TD Synnex UK

Smart-UPS 750 - UPS - AC 120 V - 500 Watt - 750 VA - 1-phase - USB, serial - output connectors: 6 - black - APC Take-Back - TAA Compliant

View on InTouch open_in_new 		12238623
Westcoast

S-UPS 750VA 120V SHIPBOARD

View on Webshop open_in_new 		SMT750X93
EET

Uninerrupile Power Supply

 SMT750X93
Alternative Suppliers
Memory Bank

S-UPS 750VA 120V SHIPBOARD

 CLSMT750X93 Register free see stock

Related Products

Description

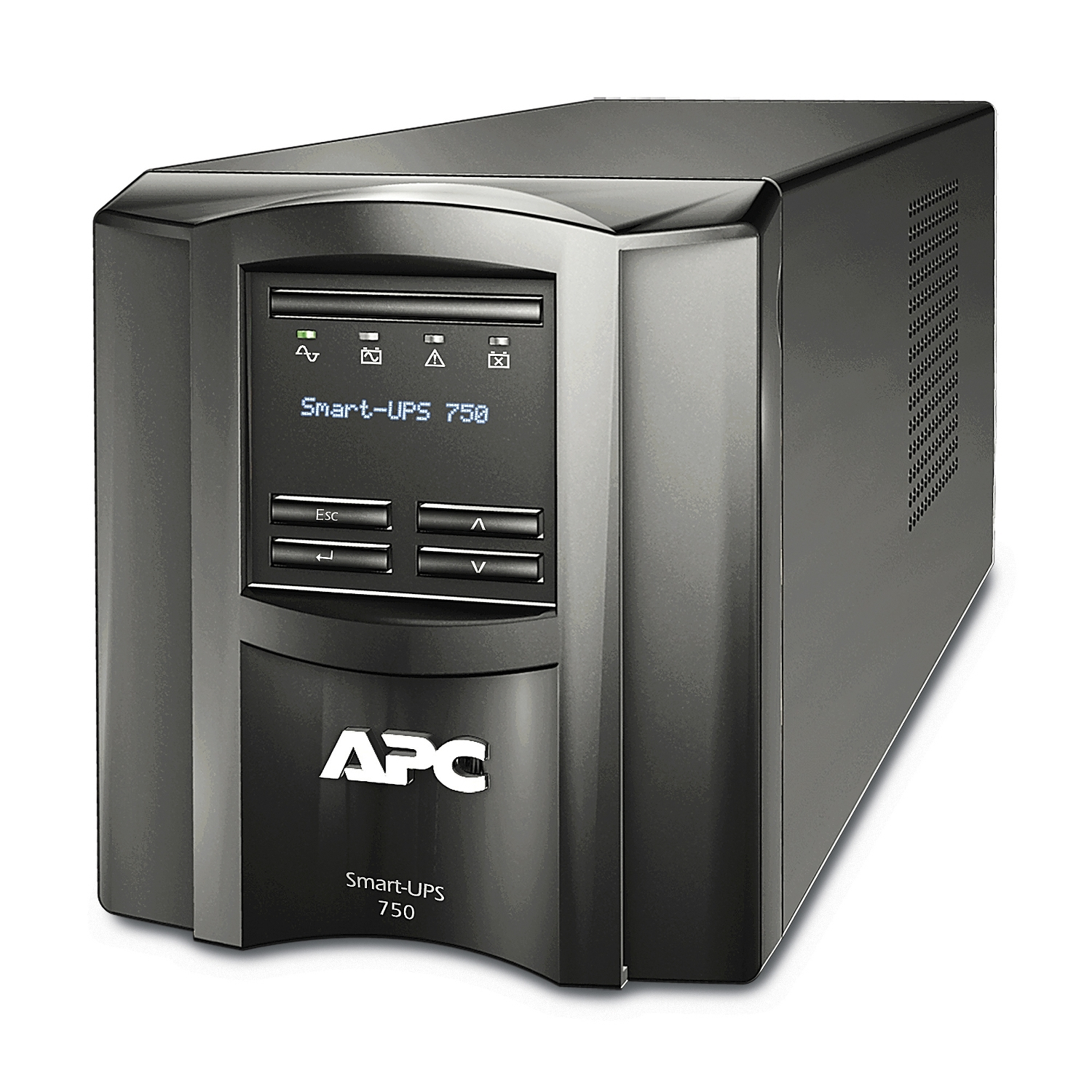

The APC Smart-UPS 750VA 120V Shipboard (SMT750X93) is a robust and reliable uninterruptible power supply (UPS) designed specifically for marine and shipboard applications. This UPS ensures continuous power supply during outages, protecting critical equipment and preserving data integrity.

Specifications

Power
Output power500 W
Input operation voltage (min)82 V
Input operation voltage (max)144 V
Output operation voltage (max)120 V
Surge energy rating593 J
Output power capacity0.75 kVA
Performance
UPS topologyLine-Interactive
WaveformSine
Response time6 ms
LED indicatorsYes
Noise level41 dB
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
UPS topologyLine-Interactive
WaveformSine
Response time6 ms
Output power500 W
Input operation voltage (min)82 V
Input operation voltage (max)144 V
Output operation voltage (max)120 V
Surge energy rating593 J
Noise level41 dB
Audible alarm(s)Yes
Output power capacity0.75 kVA
Input frequency50/60 Hz

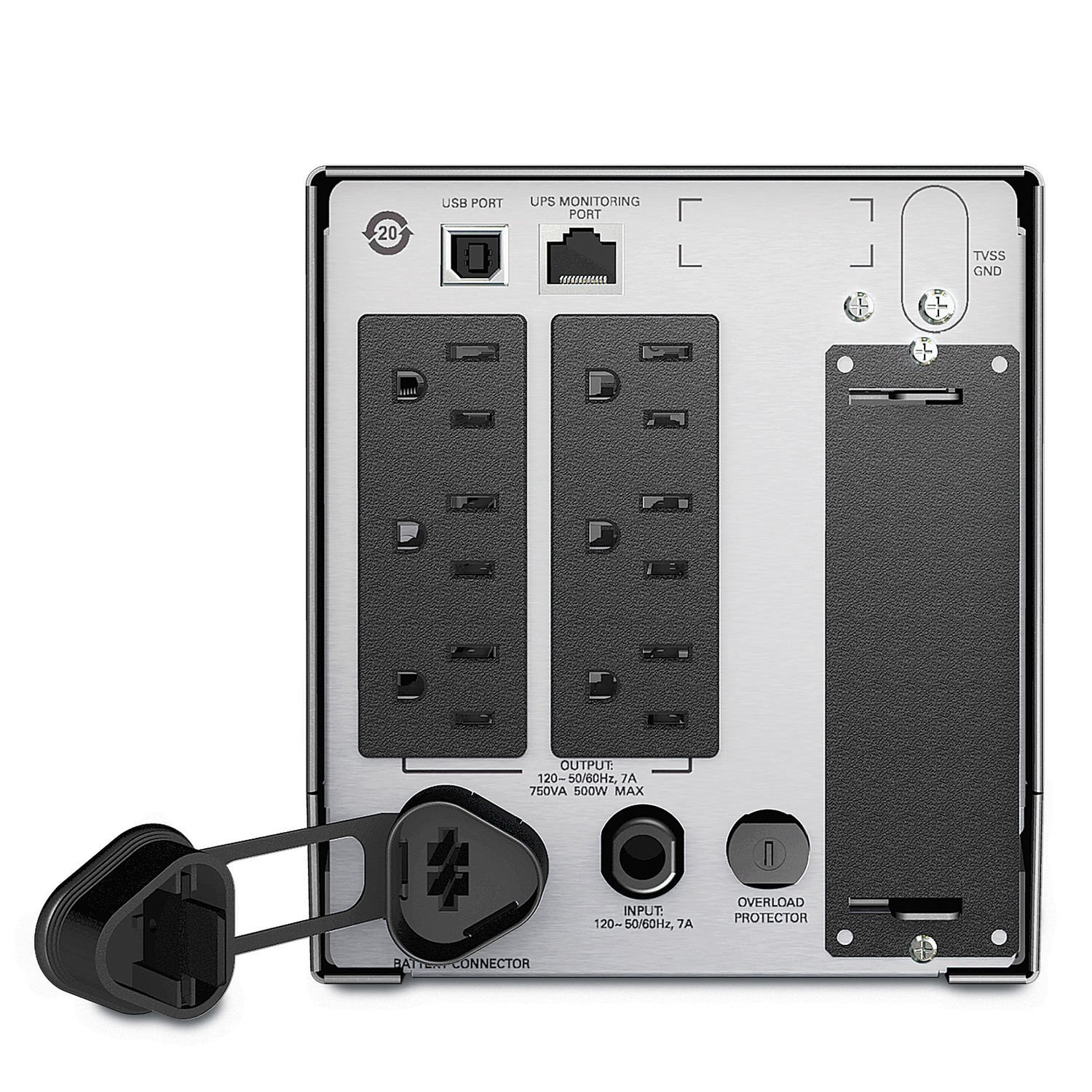

Ports & interfaces
USB portYes
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5-15R
Power plugNEMA 5-15P
USB port typeUSB Type-B
Battery
Battery life (max)5 year(s)
Battery capacity172 Ah
Battery technologySealed Lead Acid (VRLA)
Battery recharge time3 h
Typical backup time at half load15 min
Typical backup time at full load5 min
Design
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationCSA C22.2 No 107.1, REACH, RoHS, WEEE
Control typeButtons
Display typeLED
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Technical details
Output frequency50/60 Hz
Doesn't containMercury
Warranty period3 year(s)
Compliance certificatesREACH, RoHS, WEEE
Certificates
CertificationCSA C22.2 No 107.1, REACH, RoHS, WEEE
Compliance certificatesREACH, RoHS, WEEE
Packaging content
ManualYes
Sustainability
Doesn't containMercury
Weight & dimensions
Package width499 mm
Package depth278 mm
Package height301 mm
Weight12.5 kg
Width138 mm
Package weight14 kg
Height161 mm
Depth369 mm
Packaging data
ManualYes
Package width499 mm
Package depth278 mm
Package height301 mm
Package weight14 kg
Logistics data
Warranty period3 year(s)
