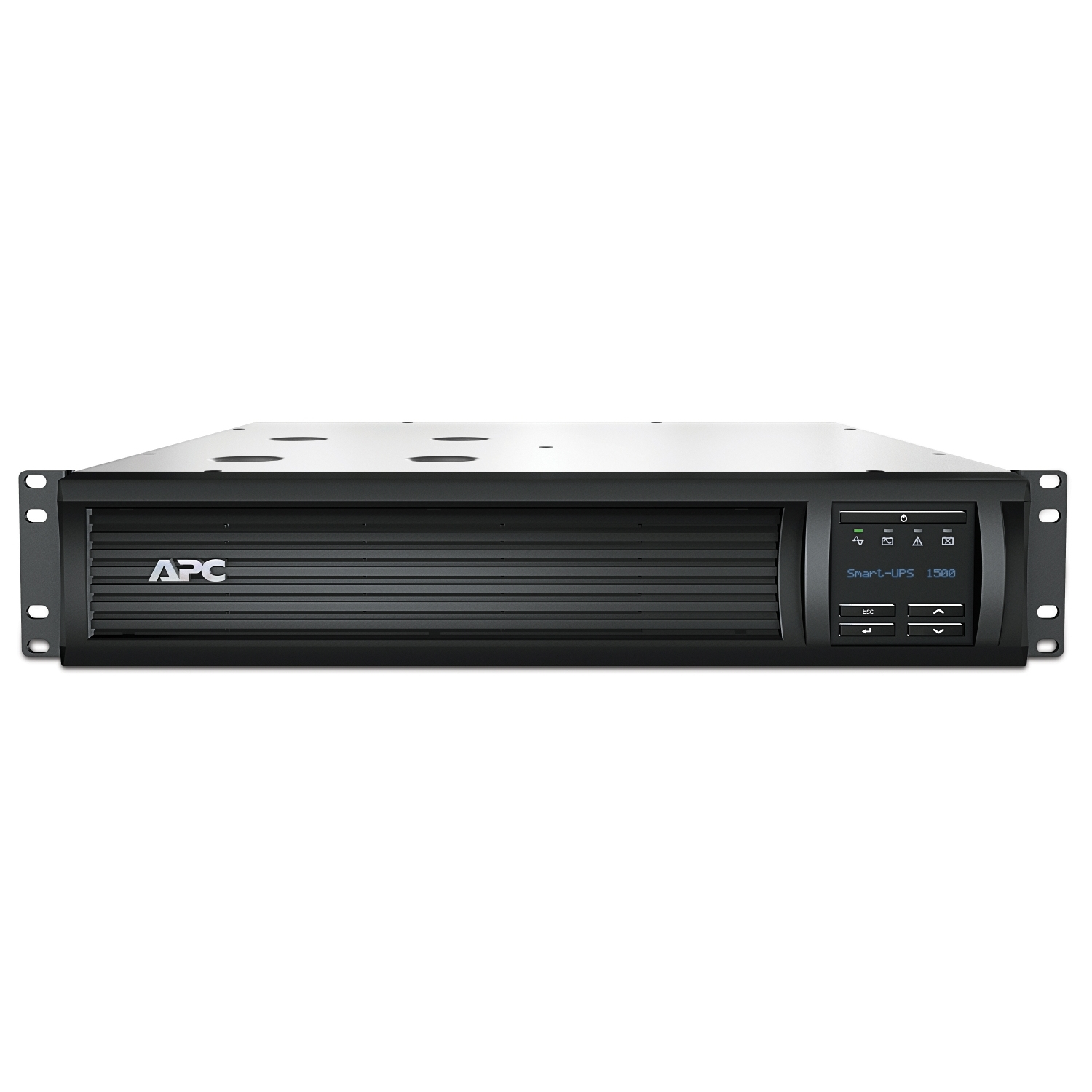

APC Smart-UPS 1.5kVA 120V RM SHIPBOARD
- Brand: APC
- Category:
- SKU: SMT1500RMX93
- EAN: 0731304433651
APC Smart-UPS 1.5kVA 120V RM SHIPBOARD
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
UPS 1500VA RM |
000000000000346600 | |||
|
Smart-UPS 1500 - UPS (rack-mountable) - AC 120 V - 1000 Watt - 1440 VA - 1-phase - USB, serial - output connectors: 6 - 2U - black - TAA Compliant View on InTouch |
11259582 |
Specifications
| Power | |
|---|---|
| Output power | 1000 W |
| Input operation voltage (min) | 82 V |
| Input operation voltage (max) | 144 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 693 J |
| Output power capacity | 1.44 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Response time | 6 ms |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Response time | 6 ms |
| Output power | 1000 W |
| Input operation voltage (min) | 82 V |
| Input operation voltage (max) | 144 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 693 J |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 1.44 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 432 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 26 min |
| Typical backup time at full load | 7 min |
| Design | |
| Rack capacity | 0U |
| Form factor | Rackmount |
| Product colour | Black |
| Certification | REACH, RoHS, WEEE, CSA C22.2 No 107.1 |
| Control type | Buttons |
| Display type | LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Doesn't contain | Mercury |
| Warranty period | 3 year(s) |
| Compliance certificates | REACH, RoHS, WEEE |
| Certificates | |
| Certification | REACH, RoHS, WEEE, CSA C22.2 No 107.1 |
| Compliance certificates | REACH, RoHS, WEEE |
| Packaging content | |
| Manual | Yes |
| Sustainability | |
| Doesn't contain | Mercury |
| Weight & dimensions | |
| Package width | 610 mm |
| Package depth | 590 mm |
| Package height | 235 mm |
| Weight | 26.5 kg |
| Width | 432 mm |
| Package weight | 26.5 kg |
| Height | 86 mm |
| Depth | 477 mm |
| Packaging data | |
| Manual | Yes |
| Package width | 610 mm |
| Package depth | 590 mm |
| Package height | 235 mm |
| Package weight | 26.5 kg |
| Logistics data | |
| Warranty period | 3 year(s) |
