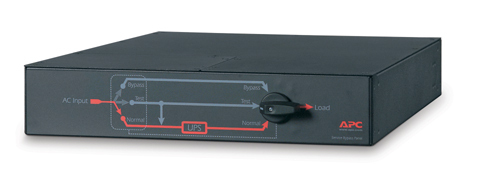

APC Service Bypass Panel- 100-120V; 30A; BBM; L5-30P input; (2) 5-20R (6) 5-15R output
- Brand: APC
- Category:
- SKU: SBP3000RM2U
- EAN: 7313042125772 0731304212577
APC Service Bypass Panel- 100-120V; 30A; BBM; L5-30P input; (2) 5-20R (6) 5-15R output
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
SERVICE BYPASS PANEL- 100-120V 30A BBM L5-30P INPUT (2) 5-20R (6) 5-15R OUTPUT |
SBP3000RM2U |
Description
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Ports & interfaces | |

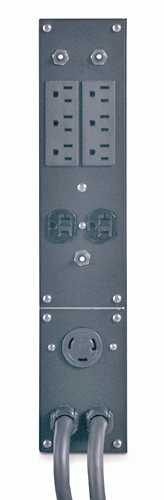

| Output connections | 6x NEMA 5-15R 2x NEMA 5-20R |
| Input connection type | NEMA L5-30P |
| Features | |
| Cable length | 3.05 m |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Ergonomics | |
| Cable length | 3.05 m |
| Power | |
| Maximum total current draw per phase | 30 A |
| Maximum input current per phase | 24 A |
| Load capacity | 3000 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 13.6 kg |
| Width | 432 mm |
| Depth | 648 mm |
| Height | 89 mm |
| Package width | 610 mm |
| Package depth | 991 mm |
| Package height | 203 mm |
| Package weight | 24.6 kg |
| Packaging data | |
| Package width | 610 mm |
| Package depth | 991 mm |
| Package height | 203 mm |
| Package weight | 24.6 kg |
