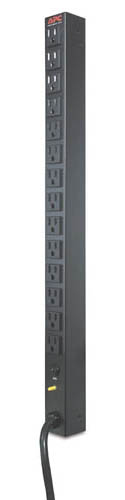

APC Rack PDU- Basic- Zero U power distribution unit (PDU) Black
- Brand: APC
- Category:
- SKU: AP9551
- EAN: 0731304021247 0803982732323 01 ...2732323 0191120031989 7426101850802 0777787359842 0163120850310 0172302768985 0168141579721 0763615800211 5554442343317 0854587231667 0778888668833 0151903094860 7313040212474 0132017602592more
Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15 |
AP9551 | |||
|
Rck PDU, sic, Zero U, |
AP9551 | |||
|
- power distribution strip |
STD10195927 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £195.99 |
Description
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Certification | cUL,CSA,UL 1363,UL |
| Ports & interfaces | |
| Output connections | (14) NEMA 5-15R |
| Input connection type | NEMA L5-20P |
| Features | |
| Cable length | 3.66 m |
| Certification | cUL,CSA,UL 1363,UL |
| Ergonomics | |
| Cable length | 3.66 m |
| Power | |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Maximum total current draw per phase | 20 A |
| Maximum input current per phase | 20 A |
| Load capacity | 2400 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL,CSA,UL 1363,UL |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 2.19 kg |
| Width | 44 mm |
| Depth | 44 mm |
| Height | 620 mm |
