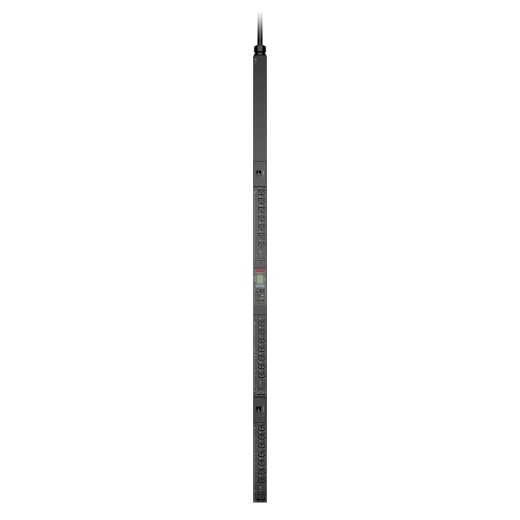

APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets
- Brand: APC
- Category:
- SKU: APDU9941
- EAN: 0731304356264
Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
APDU9941 |
APC-APDU9941 | |||
|
RACK PDU 9000 SWITCHED, ZEROU, 30A, 200/208V, (21) C13 & (3) C19 |
APDU9941 | |||
|
Rack PDU 9000 Switched APDU9941 - Power distribution unit (rack-mountable) - AC 200/208 V - 4992 VA - Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 24 (21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21) - 0U - 3 m cord - black - for P/N: SMTL View on InTouch |
6354299 | |||
|
RACK PDU 9000 SWITCHED 0U 30A 200V A View on Webshop |
APDU9941 | |||
|
NeSheler 9000 power |
APDU9941 | |||
|
Rack PDU 9000 Switched APDU9941 - power distribution unit - 4992 VA |
STD10193308 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
RACK PDU 9000 SWITCHED 0U 30A 200V A |
CLAPDU9941 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £1,468.24 | ||
| Amazon | New | £1,859.94 | ||
| Amazon | New | £1,468.24 |

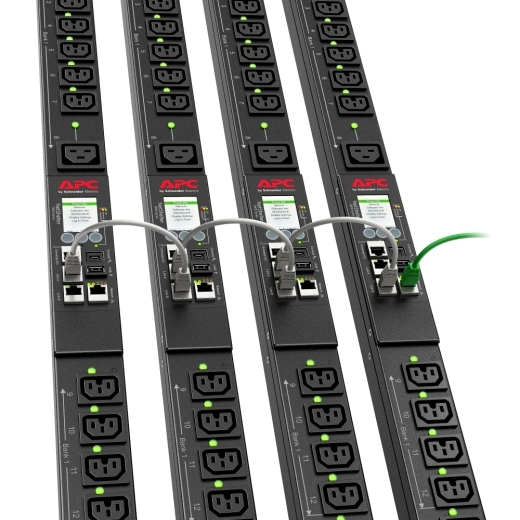

Description

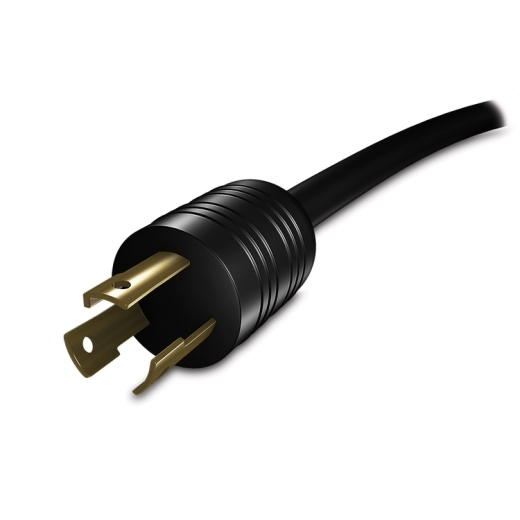

The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Switched |
| Mounting | Vertical |
| Product colour | Black |
| Certification | CUL , FCC 15 A, ICES-003, PSE |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Power plug | NEMA L6-30P |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Certification | CUL , FCC 15 A, ICES-003, PSE |
| Power | |
| Nominal input voltage | 90 - 264 V |
| Nominal output voltage | 200 - 208 V |
| Maximum current | 30 A |
| Load capacity | 4992 VA |
| Certificates | |
| Certification | CUL , FCC 15 A, ICES-003, PSE |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Weight & dimensions | |
| Weight | 8.5 kg |
| Width | 55 mm |
| Depth | 46 mm |
| Height | 1829 mm |
| Package width | 165 mm |
| Package depth | 124 mm |
| Package height | 2040 mm |
| Package weight | 10 kg |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 124 mm |
| Package height | 2040 mm |
| Package weight | 10 kg |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
