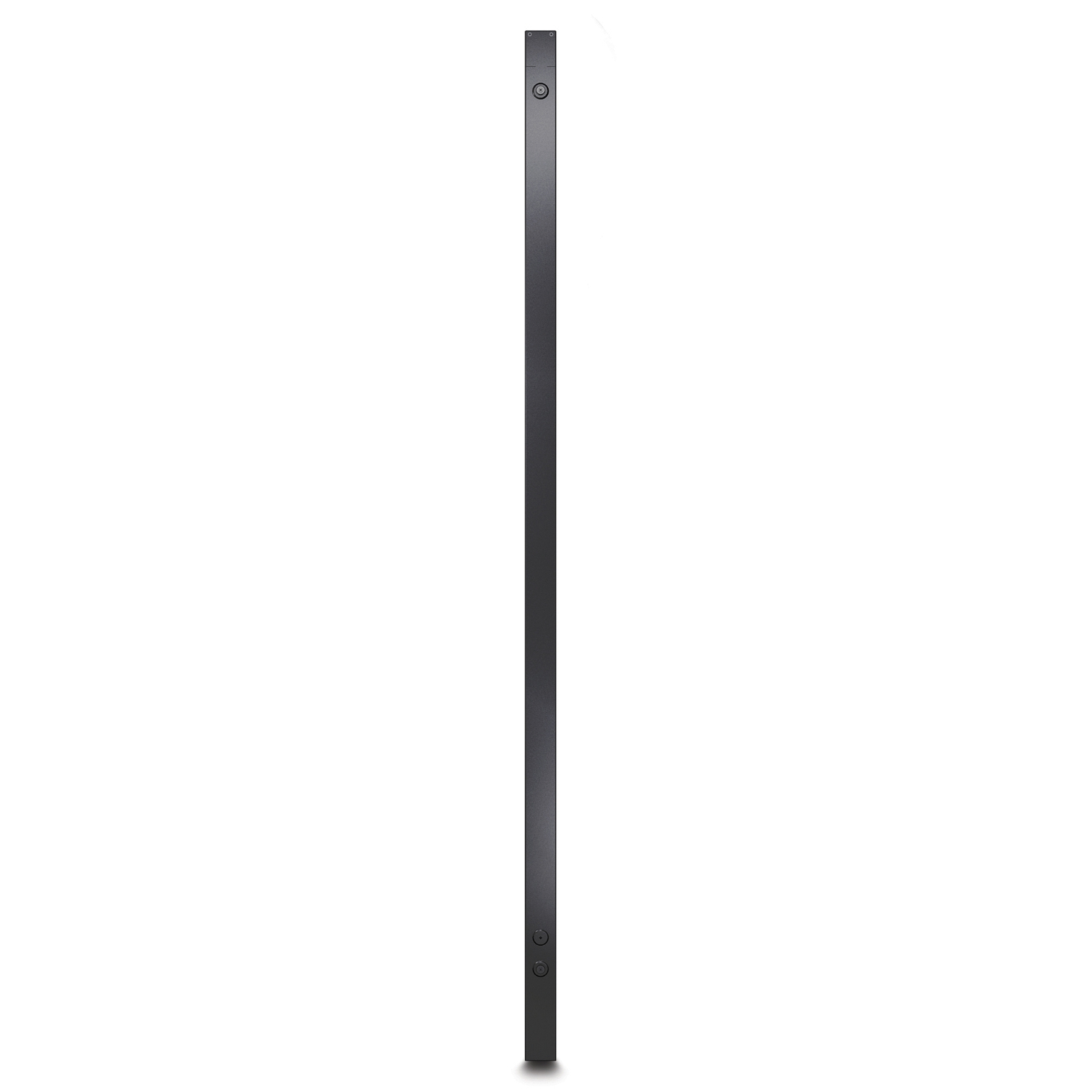

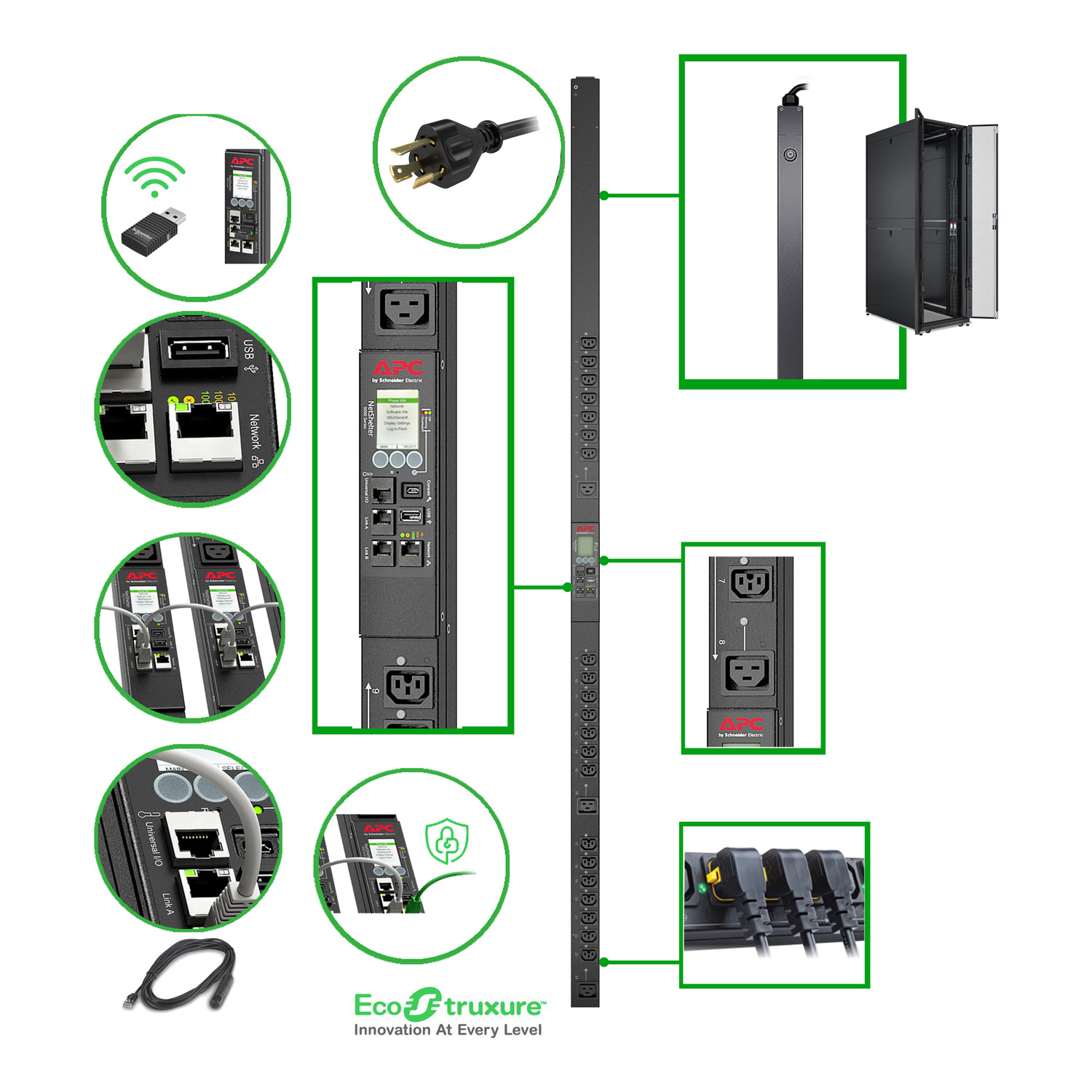

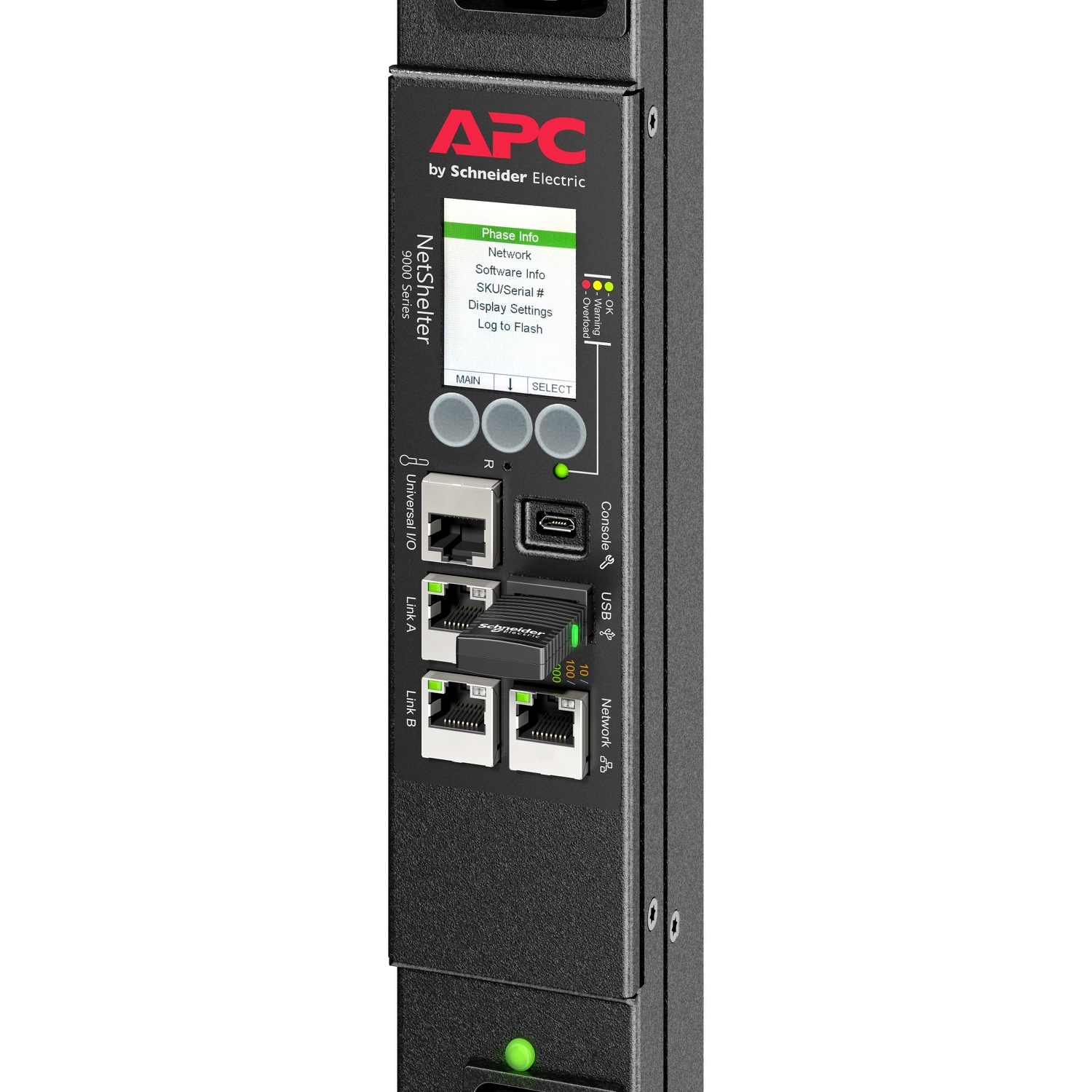

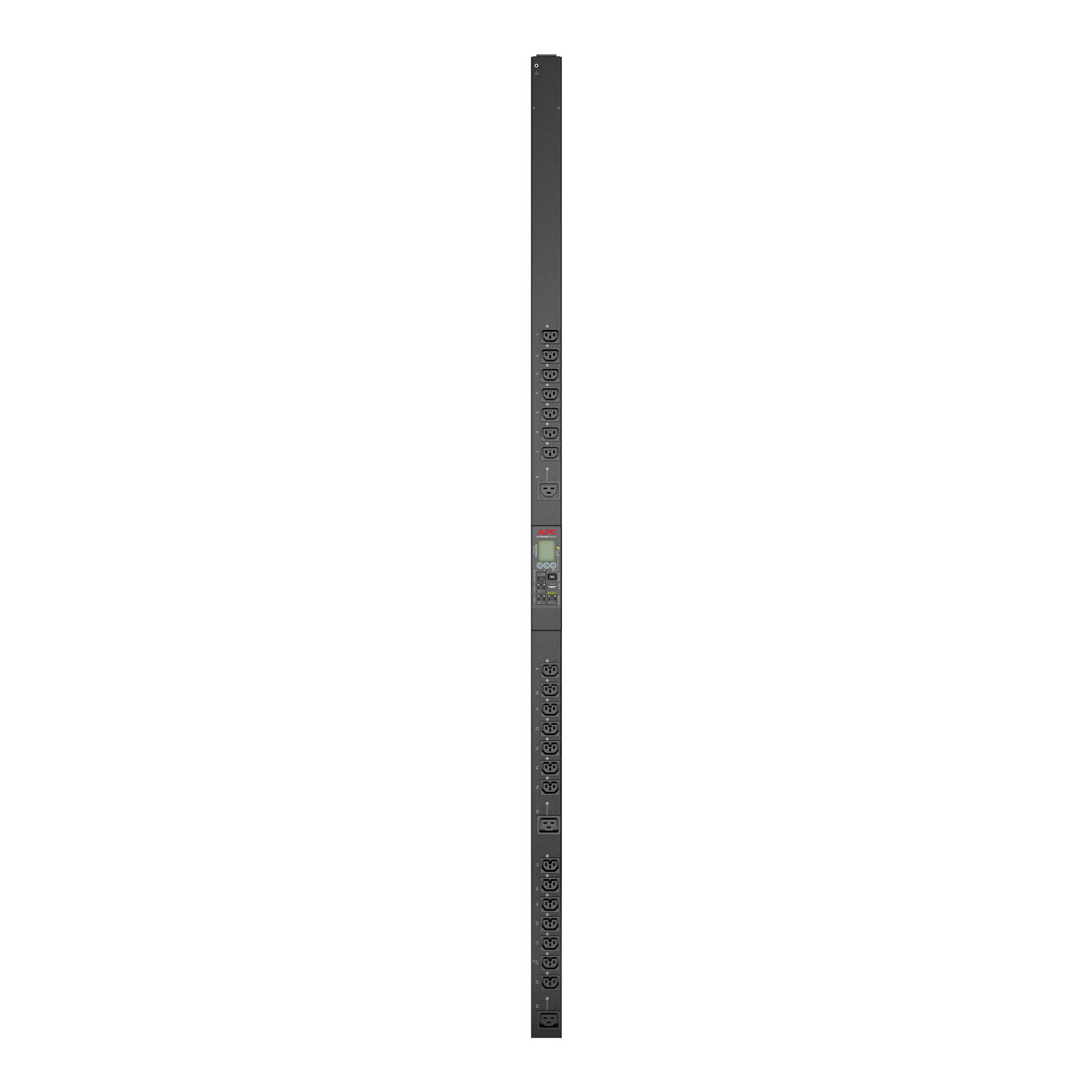

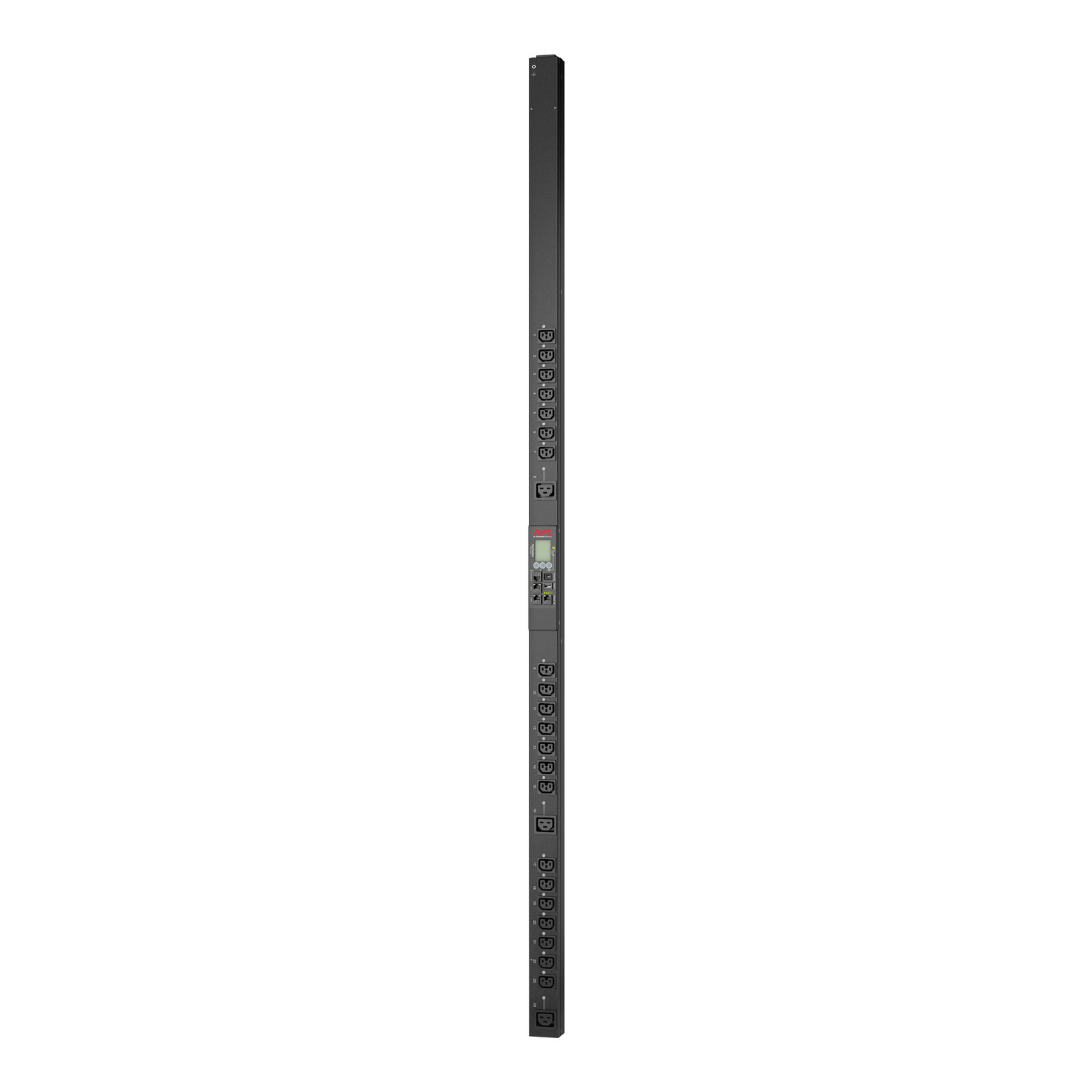

APC Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord

APC Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord

Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

RACK PDU 9000 SWITCHED ZEROU

View on Xvantage open_in_new 		CA81518 Register free see stock
EET

Nesheler 9000 Power

 APDU9959NA3
Ingram Micro CS

RACK PDU 9000 SWITCHED ZEROU

 CA81518
SYNAXON

NetShelter 9000 power distribution unit (PDU) 24 AC outlet(s) 0U Black

 STD10219367

Related Products

Description

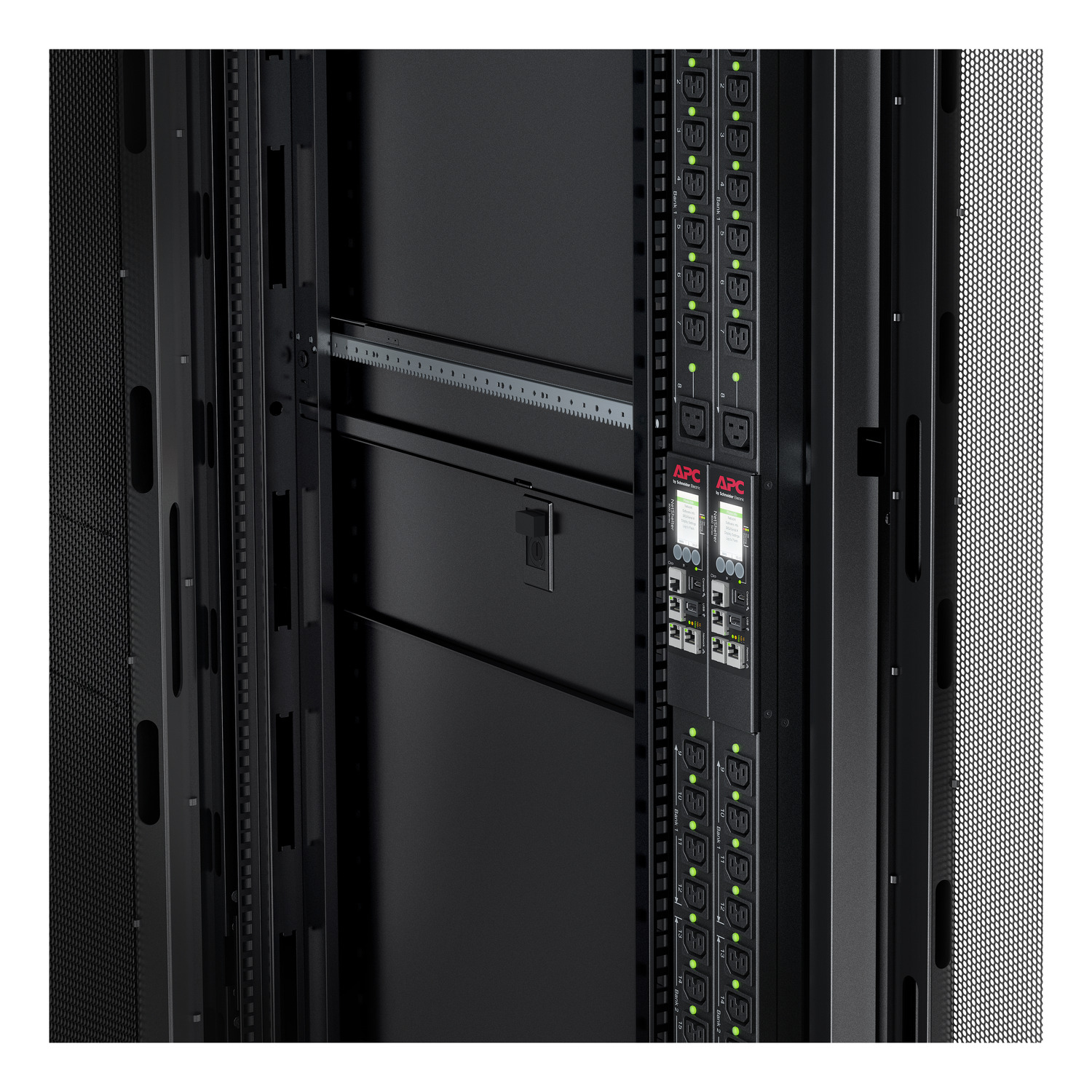

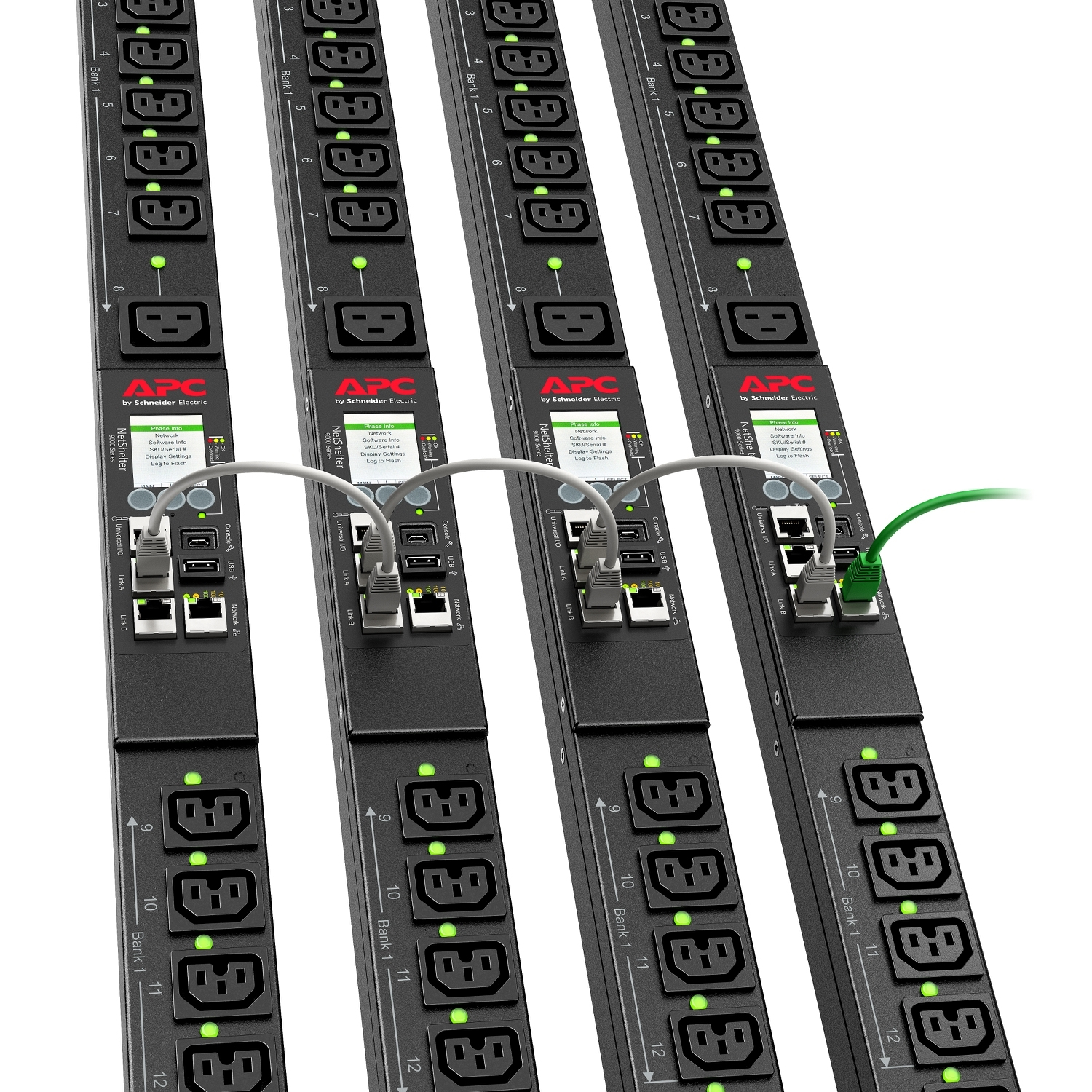

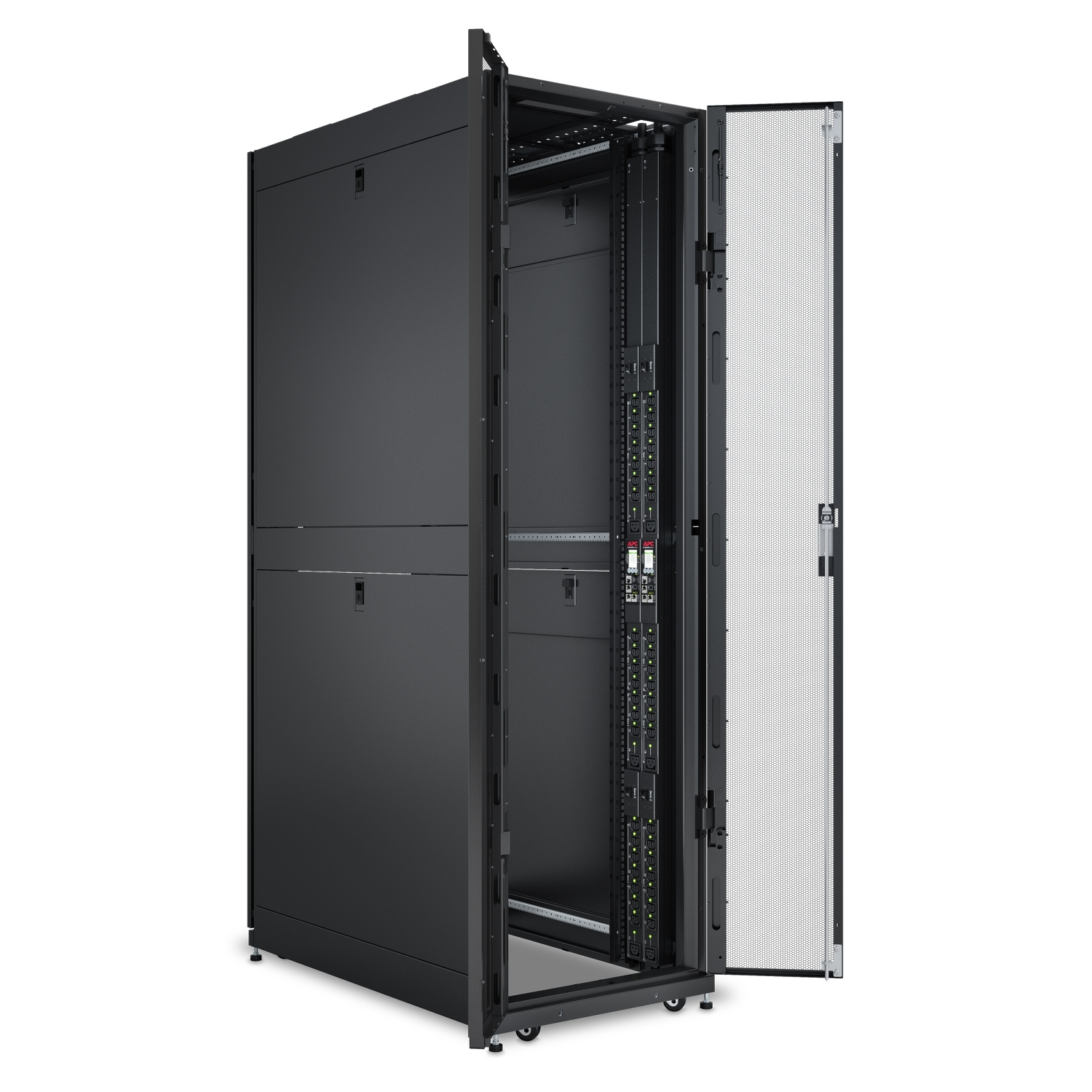

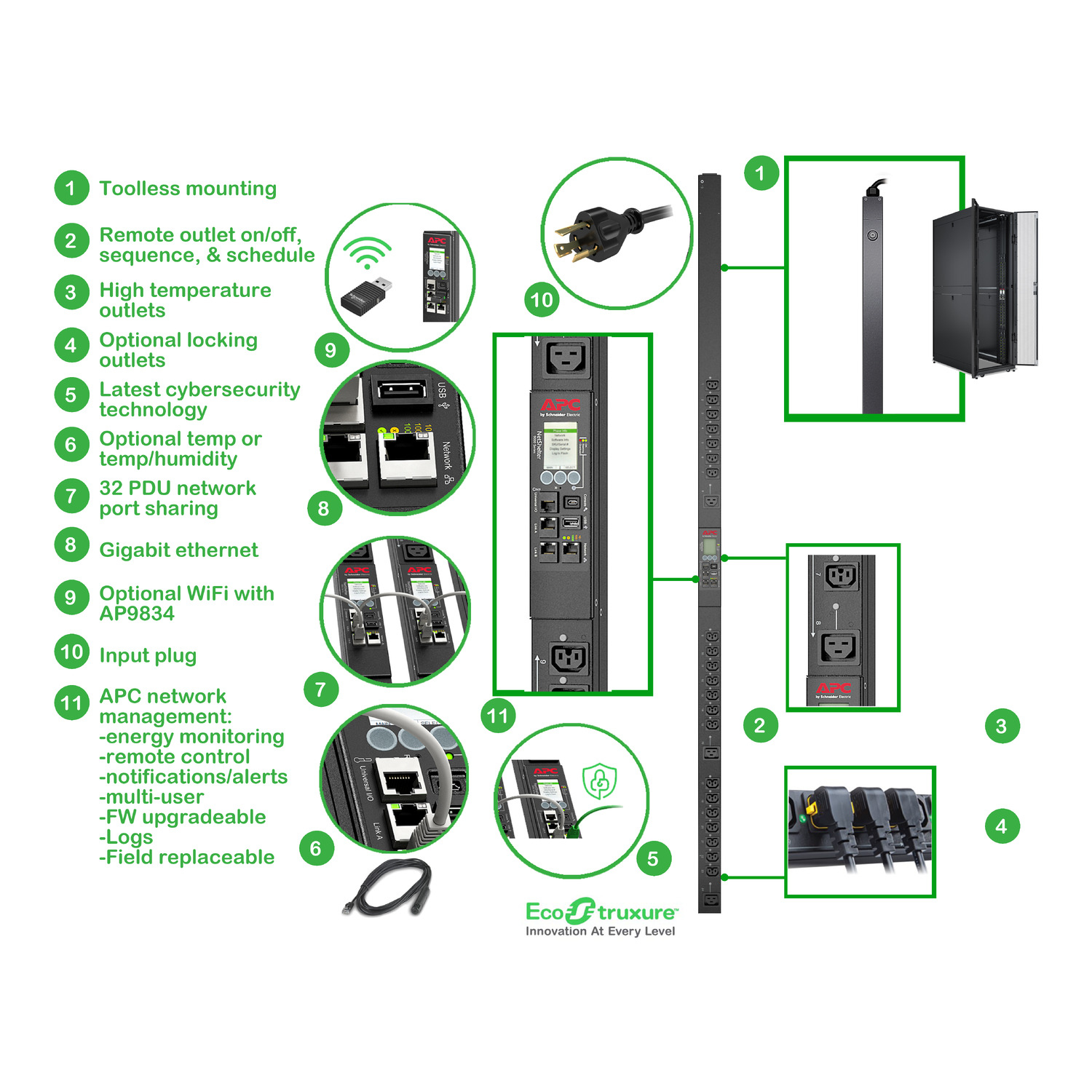

It is a switched rack PDU with maximum current capacity of 20A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60320 L6-20P plug. This PDU is designed for ZeroU mounting.

Specifications

Design
PDU typesSwitched
MountingVertical
Product colourBlack
CertificationCUL, FCC 15 A, IEC 62368-1, PSE
Rack capacity0U
Ports & interfaces
AC outlets quantity24 AC outlet(s)

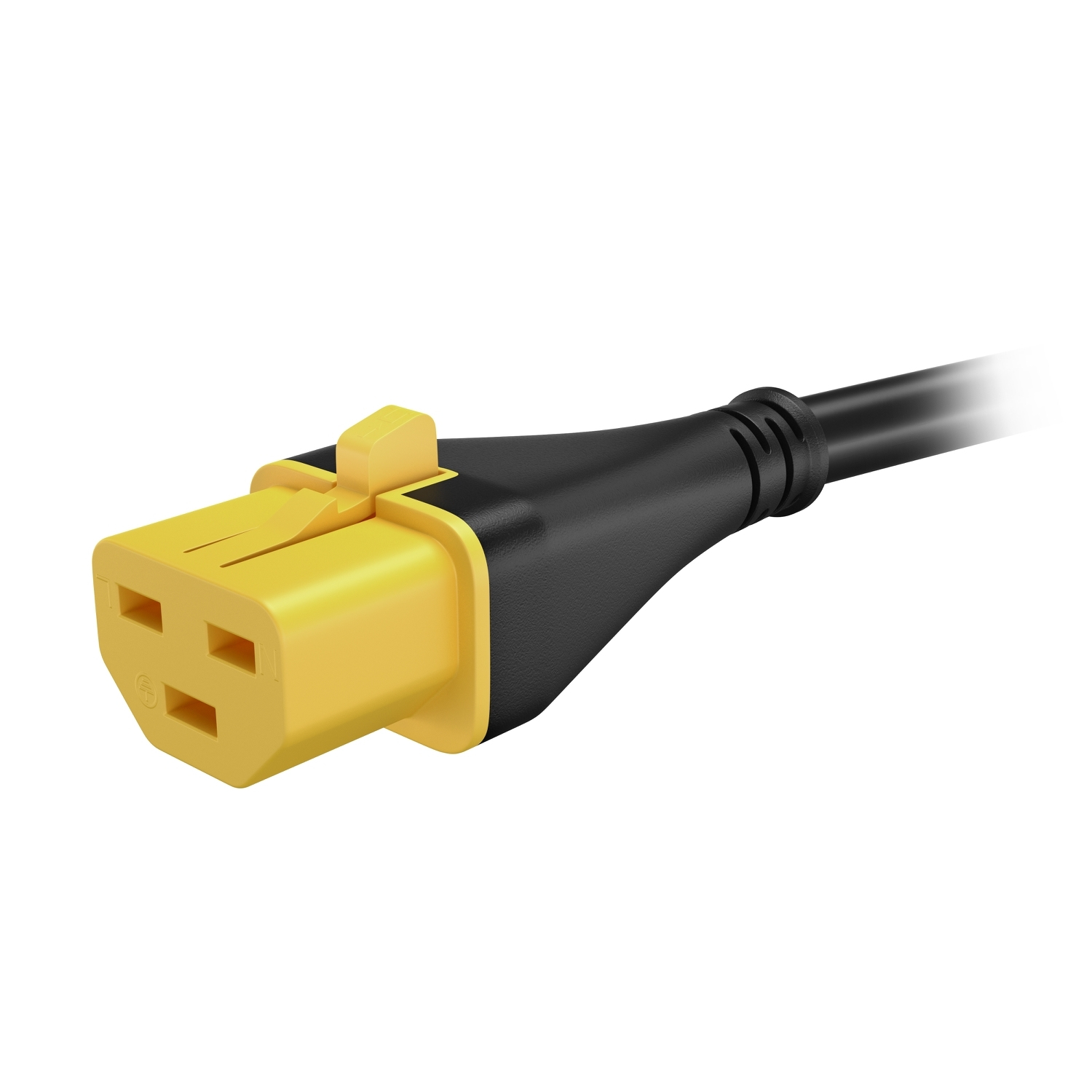

AC outlet typesC13 coupler, C15 coupler, C19 coupler, C21 coupler

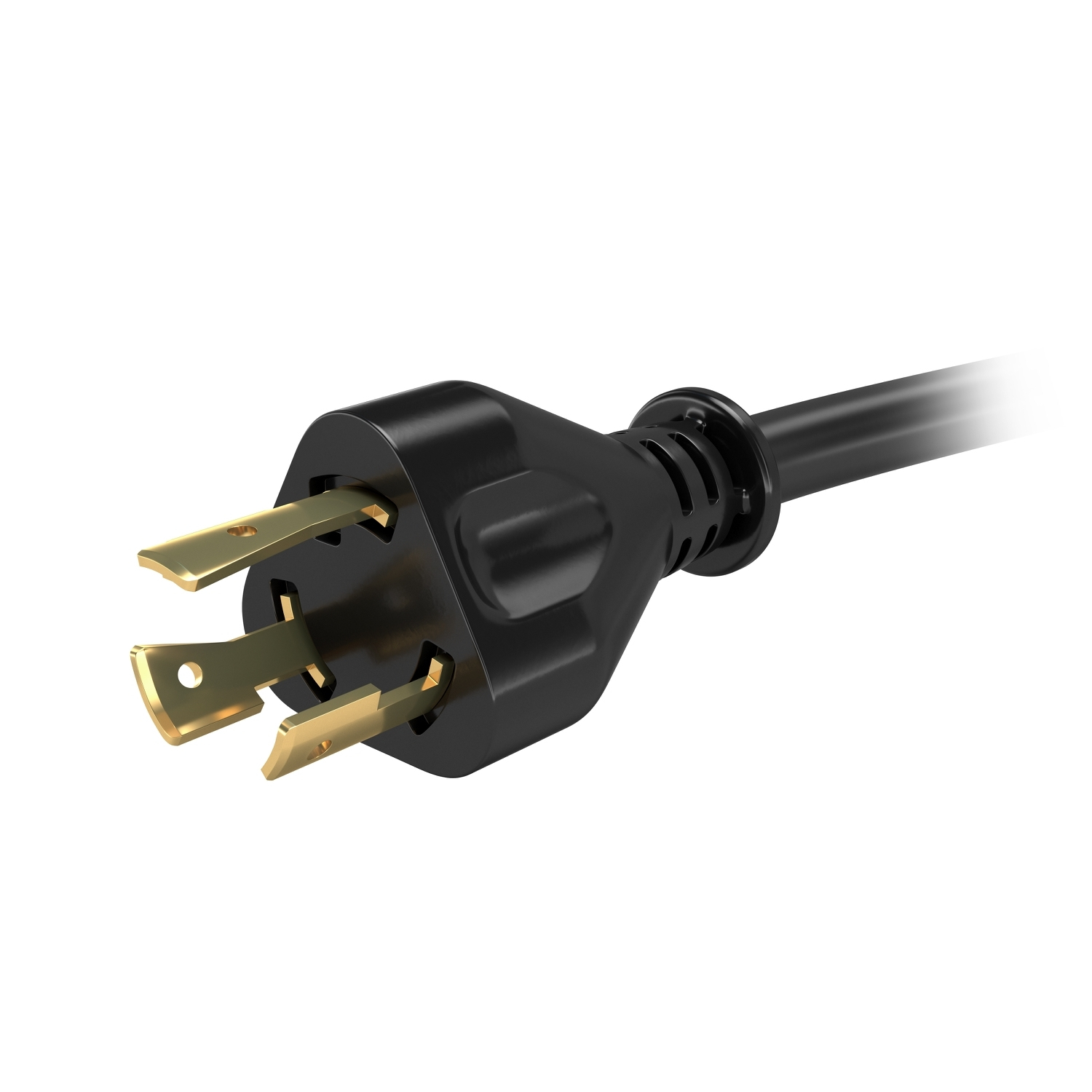

Power plugNEMA L6-20P
Features
CertificationCUL, FCC 15 A, IEC 62368-1, PSE
Power
Nominal input voltage200 - 208 V
Nominal output voltage200 - 208 V
Output voltage200 - 208 V
Maximum current20 A
Load capacity3300 VA
AC input frequency50 - 60 Hz
Certificates
CertificationCUL, FCC 15 A, IEC 62368-1, PSE
Operational conditions
Operating temperature (T-T)-5 - 60 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 15240 m
Weight & dimensions
Weight5.61 kg
Width55 mm
Depth46 mm
Height1797 mm
Package width165 mm
Package depth114 mm
Package height2002 mm
Package weight7.86 kg
Packaging data
Package width165 mm
Package depth114 mm
Package height2002 mm
Package weight7.86 kg
Technical details
Warranty period3 year(s)
Logistics data
Warranty period3 year(s)
