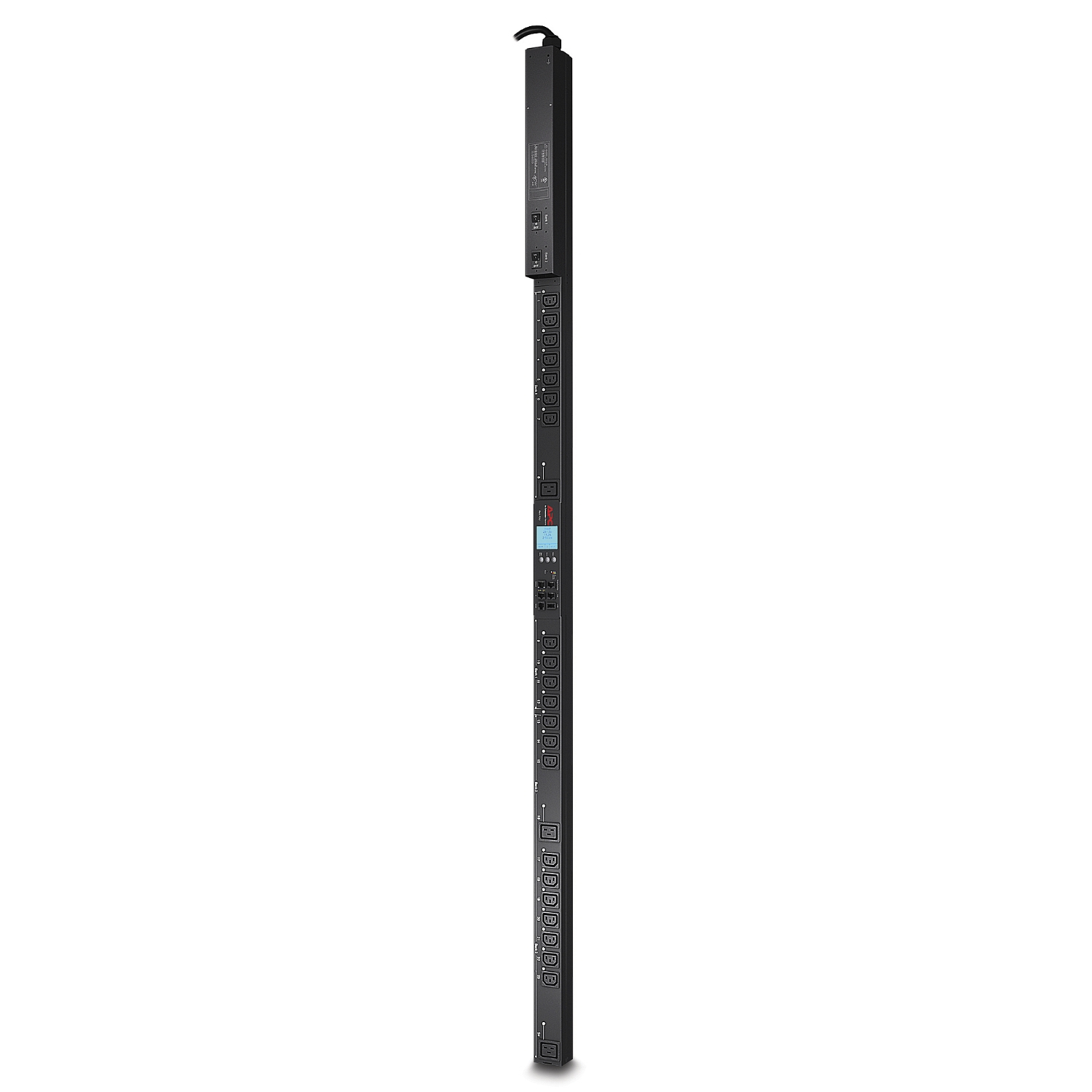

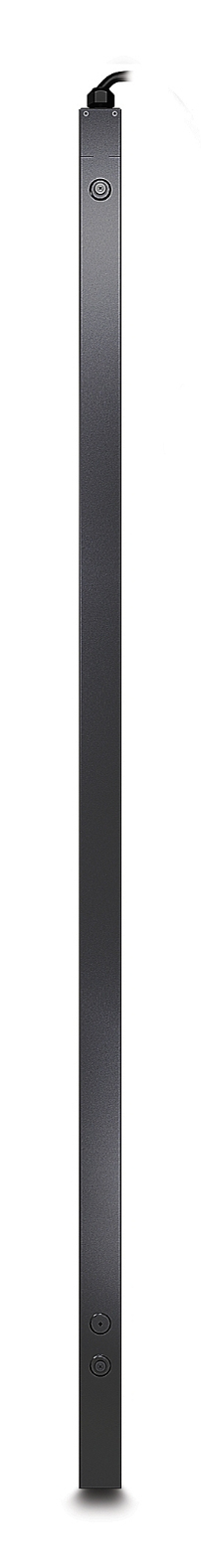

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets

  • Brand: APC
  • Category:
  • SKU: AP8641
  • EAN: 0731304276975 0042111829606 00 ...1829606 0012303055533 4521557897593 7313042769754 0132017657233more
Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets

Trade Prices

Distributor Product SKU Stock Updated Price
Hammer Distribution

AP8641

 APC-AP8641 Register free see stock
TD Synnex UK

Switched Rack PDU 2G Zero U - Power distribution unit (rack-mountable) - AC 200/208/230 V - Ethernet 10/100, RS-232 - input: NEMA L6-30 - output connectors: 24 - 0U - 2.9 m cord - black - for P/N: SMTL2K2RM2UCL, SMTL2K2RM2UCLNC, SMTL3KRM2UCL, SMTL3KRM2UCL

View on InTouch open_in_new 		2973268
Westcoast

RACK PDU 2G METERED BY OUTLET WITH S

View on Webshop open_in_new 		AP8641
EET

Rck PDU 2G Meered y Oule

 AP8641
Alternative Suppliers
Memory Bank

RACK PDU 2G METERED BY OUTLET WITH S

 CLAP8641 Register free see stock

Related Products

Reasons To Buy

Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.

The Side Airflow Duct Kit for Nexus 7018 and NetShelter® SX 1200-mm Deep Networking Enclosure have been tested and approved by Cisco® for supporting Nexus 7018 datacenter networking switches and Schneider Electric is listed as an approved vendor in the Nexus 7000 Series Site Preparation Guide.

Description

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Specifications

Design
PDU typesSwitched
Product colourBlack
CertificationcUL,FCC 15 A,ICES-003,UL,VCCI A
Rack capacity0U
Ports & interfaces
AC outlets quantity24 AC outlet(s)

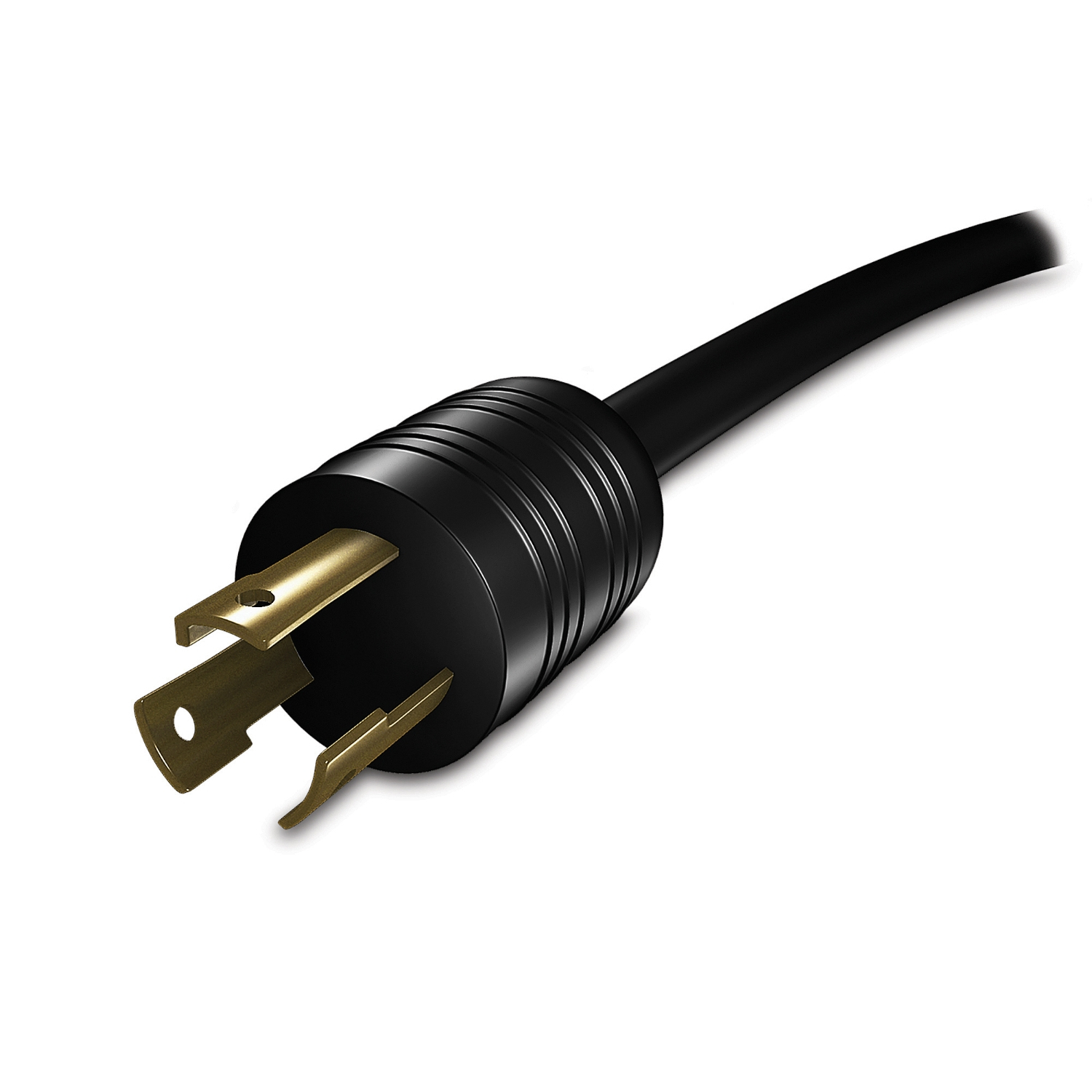

Power plugNEMA L6-30P
Features
Cable length3 m
CertificationcUL,FCC 15 A,ICES-003,UL,VCCI A
Ergonomics
Cable length3 m
Power
Nominal input voltage200-230 V
Nominal output voltage208 V
Power protection featuresOverload
Maximum current30 A
Maximum total current draw per phase30 A
AC input frequency50 - 60 Hz
Certificates
CertificationcUL,FCC 15 A,ICES-003,UL,VCCI A
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Weight & dimensions
Weight8.23 kg
Width56 mm
Depth51 mm
Height1829 mm
Package width162 mm
Package depth118 mm
Package height2038 mm
Package weight10.5 kg
Packaging data
Package width162 mm
Package depth118 mm
Package height2038 mm
Package weight10.5 kg
Technical details
Total carbon footprint (kg of CO2e)8153.67
Compliance certificatesRoHS
Logistics data
Total carbon footprint (kg of CO2e)8153.67
