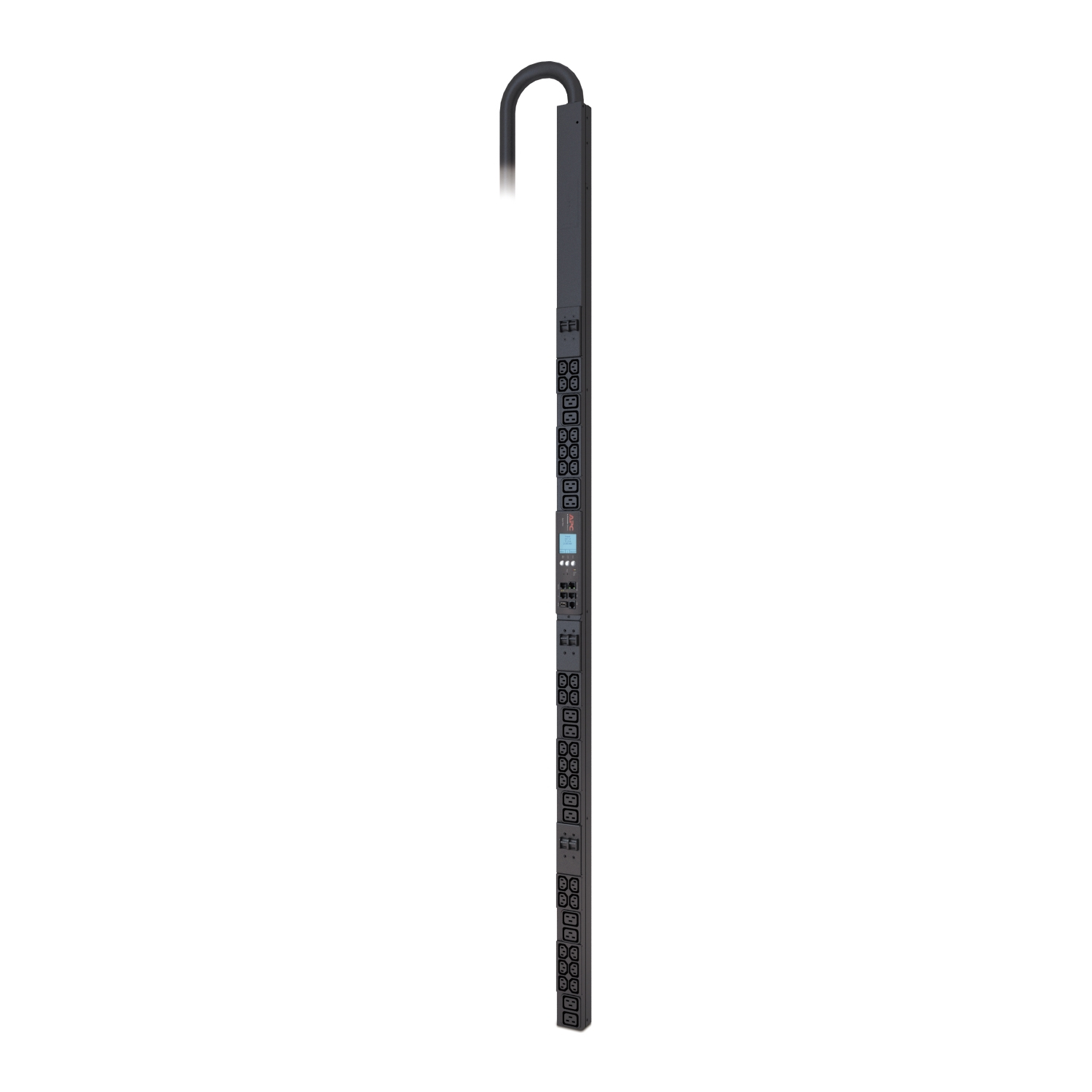

APC Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19

APC Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19

Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

RACK PDU 2G METERED ZEROU

View on Xvantage open_in_new 		270B065 Register free see stock
Microwarehouse Ireland

RACK PDU 2G, METERED, ZEROU, 23.0KW, 240V, (30) C13 & (12) C19

 AP8888
TD Synnex UK

Metered Rack PDU - Power distribution unit (rack-mountable) - AC 400 V - 23 kW - 3-phase - Ethernet 10/100, RS-232 - input: IEC 60309 - output connectors: 42 - 0U - 1.82 m cord - Canada, United States - black - for P/N: SMX1500RM2UCNC, SMX2KR2UX145, SMX3K

View on InTouch open_in_new 		13269200
EET

Rck PDU 2G, Meered, ZeroU,

 AP8888
Ingram Micro CS

RACK PDU 2G METERED ZEROU

 270B065
SYNAXON

Metered Rack PDU - power distribution unit - 23 kW

 STD10215455

Retail Prices

Merchant Product Condition Updated Price
Amazon New £2,268.06

Related Products

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

Specifications

Design
PDU typesMetered
MountingHorizontal/Vertical
DisplayLCD
Product colourBlack
CertificationcUL listed; UL listed; VCCI class A
Rack capacity0U
Ports & interfaces
AC outlets quantity42 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler

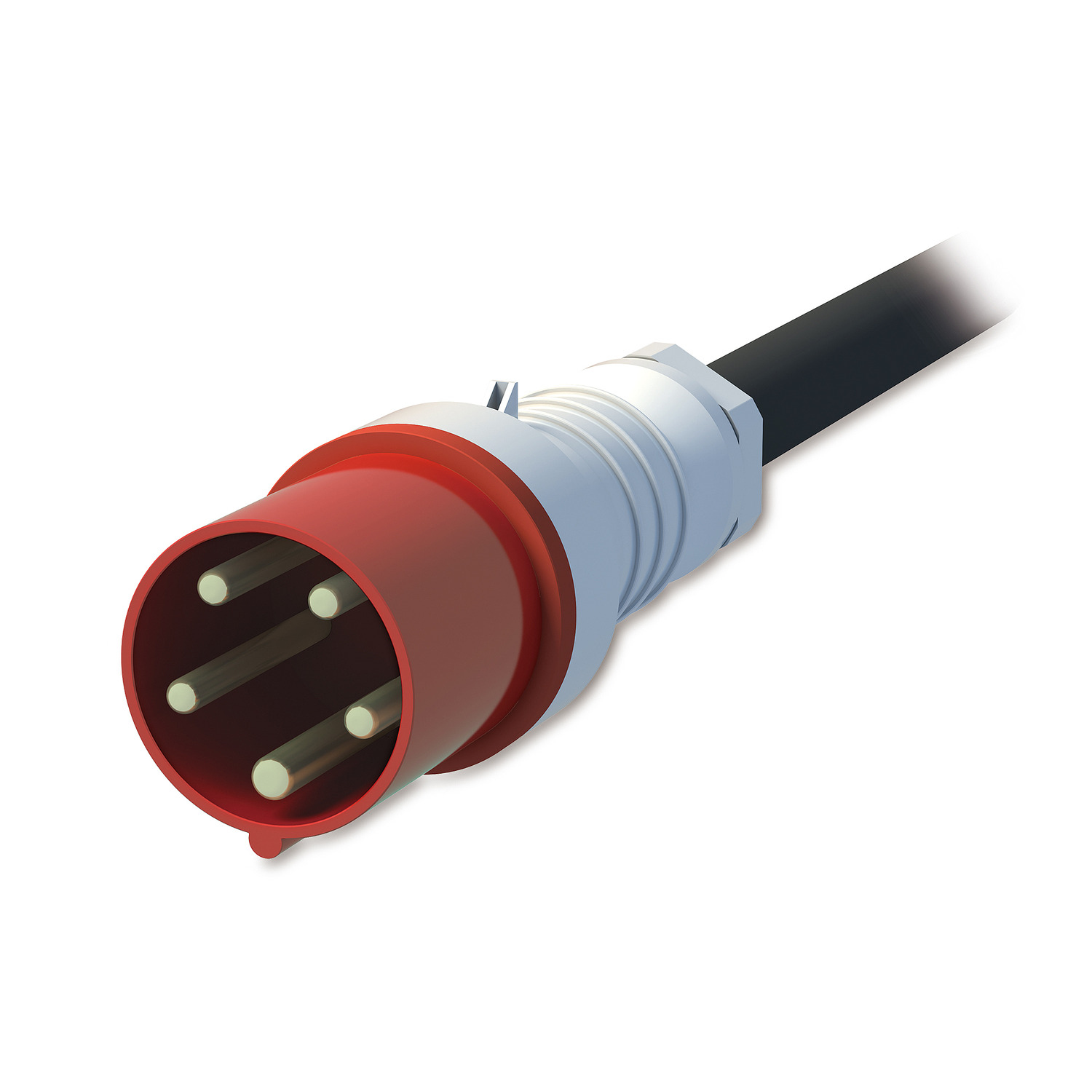

Input connection typeIEC 60309 60 A 3P + N + E
Features
Cable length1.82 m
CertificationcUL listed; UL listed; VCCI class A
Ergonomics
Cable length1.82 m
DisplayLCD
Power
Nominal input voltage400 3 phases
Nominal output voltage240 V
Output voltage240 V
Power protection featuresOverload
Maximum current40 A
Maximum total current draw per phase32 A
Maximum input current per phase40 A
Load capacity23000 VA
AC input frequency50 - 60 Hz
Number of phases3
Certificates
CertificationcUL listed; UL listed; VCCI class A
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesRoHS, REACH, WEEE
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Weight & dimensions
Weight10.1 kg
Width56 mm
Depth51 mm
Height1829 mm
Package width221 mm
Package depth112 mm
Package height2149 mm
Package weight14.1 kg
Packaging data
Package width221 mm
Package depth112 mm
Package height2149 mm
Package weight14.1 kg
Technical details
Total carbon footprint (kg of CO2e)413.9248554913295
Compliance certificatesRoHS, REACH, WEEE
Certification
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Logistics data
Country of originIndia
Customs product code (TARIC)8537109899
Total carbon footprint (kg of CO2e)413.9248554913295
