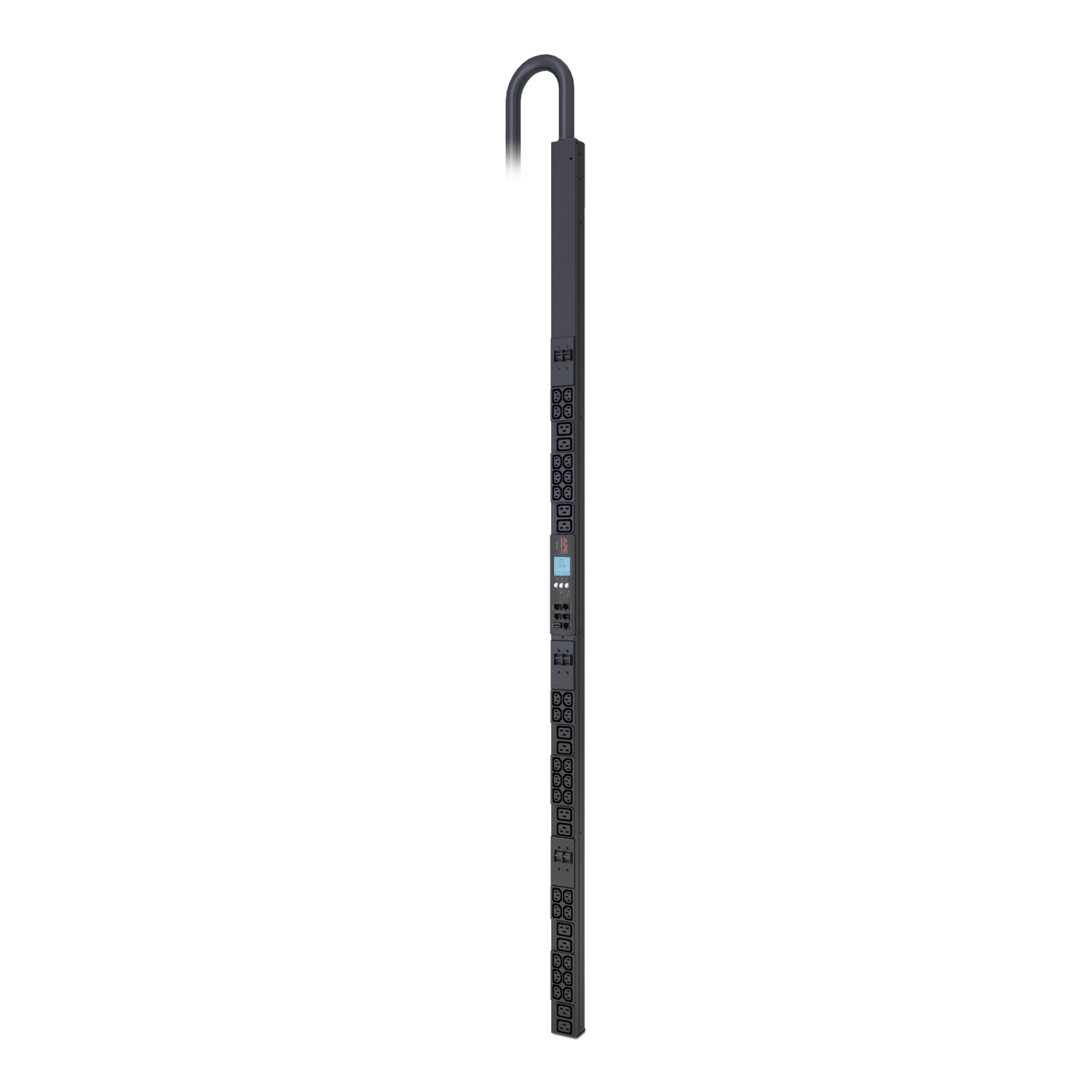

APC Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
- Brand: APC
- Category:
- SKU: AP8887
- EAN: 0731304292432 7313042924320
Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
RACK PDU 2G METERED ZEROU View on Xvantage |
270A516 | |||
|
RACK PDU 2G, METERED, ZEROU, 17.3KW, 240V, (30) C13 & (12) C19 |
AP8887 | |||
|
RACK PDU 2G METERED ZEROU 17.3KW 240 View on Webshop |
AP8887 | |||
| Ingram Micro CS |
RACK PDU 2G METERED ZEROU |
270A516 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
RACK PDU 2G METERED ZEROU 17.3KW 240 |
CLAP8887 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £3,303.18 |
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Specifications
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Display | LCD |
| Product colour | Black |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 30A 3P+N+E |
| Features | |
| Cable length | 1.83 m |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A |
| Ergonomics | |
| Cable length | 1.83 m |
| Display | LCD |
| Power | |
| Nominal input voltage | 400 V |
| Nominal output voltage | 240 V |
| Output voltage | 240 V |
| Power protection features | Overload |
| Maximum current | 30 A |
| Maximum total current draw per phase | 24 A |
| Maximum input current per phase | 30 A |
| Load capacity | 17300 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 9.6 kg |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Package width | 221 mm |
| Package depth | 112 mm |
| Package height | 2149 mm |
| Package weight | 13.6 kg |
| Packaging data | |
| Package width | 221 mm |
| Package depth | 112 mm |
| Package height | 2149 mm |
| Package weight | 13.6 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 67314.89 |
| Compliance certificates | RoHS |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 67314.89 |
