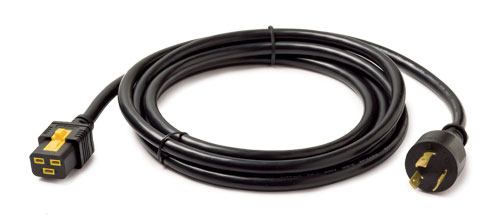

APC Power Cord, Locking C19 to L6-20P, 3.0m
- Brand: APC
- Category:
- SKU: AP8753J
- EAN: 0731304279778
Power Cord, Locking C19 to L6-20P, 3.0m
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
POWER CORD LOCKING View on Xvantage |
2709577 | |||
| Ingram Micro CS |
POWER CORD LOCKING |
2709577 |
Related Products
-
Category: Power Cables -
Category: Power Cables -
Category: Power Cables -
Category: Power Cables
-
Category: Power Cables
-
Category: Power Cables
Description
This product AP8753J can free up space and secure power cords between rack-mount PDUs and attached IT equipment with the exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | IEC C19 |
| Connector 1 | NEMA L6-20P |
| Cable length | 3.05 m |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Certification | PSE |
| Connector 2 | IEC C19 |
| Connector 1 | NEMA L6-20P |
| Cable length | 3.05 m |
| Connector 2 lockable | Yes |
| Suitable for use in country/location | Japan |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Product colour | Black |
| Power | |
| Maximum current | 20 A |
| Input current | 20 A |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 105 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Certification | PSE |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 45 mm |
| Height | 230 mm |
| Weight | 720 g |
| Package width | 230 mm |
| Package depth | 45 mm |
| Package height | 230 mm |
| Package weight | 720 g |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 45 mm |
| Package height | 230 mm |
| Package weight | 720 g |
| Technical details | |
| Maximum current | 20 A |
| Compliance certificates | RoHS |
