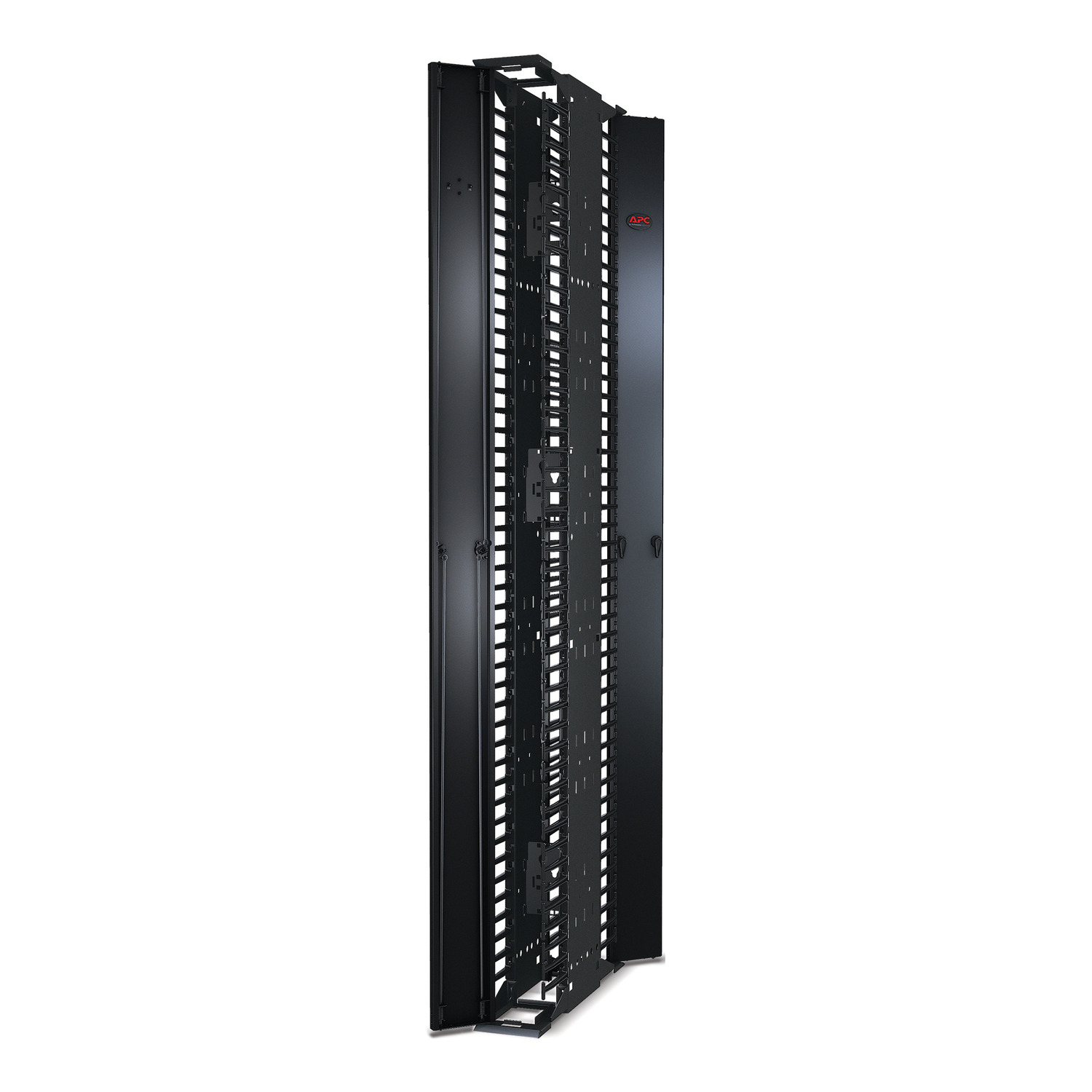

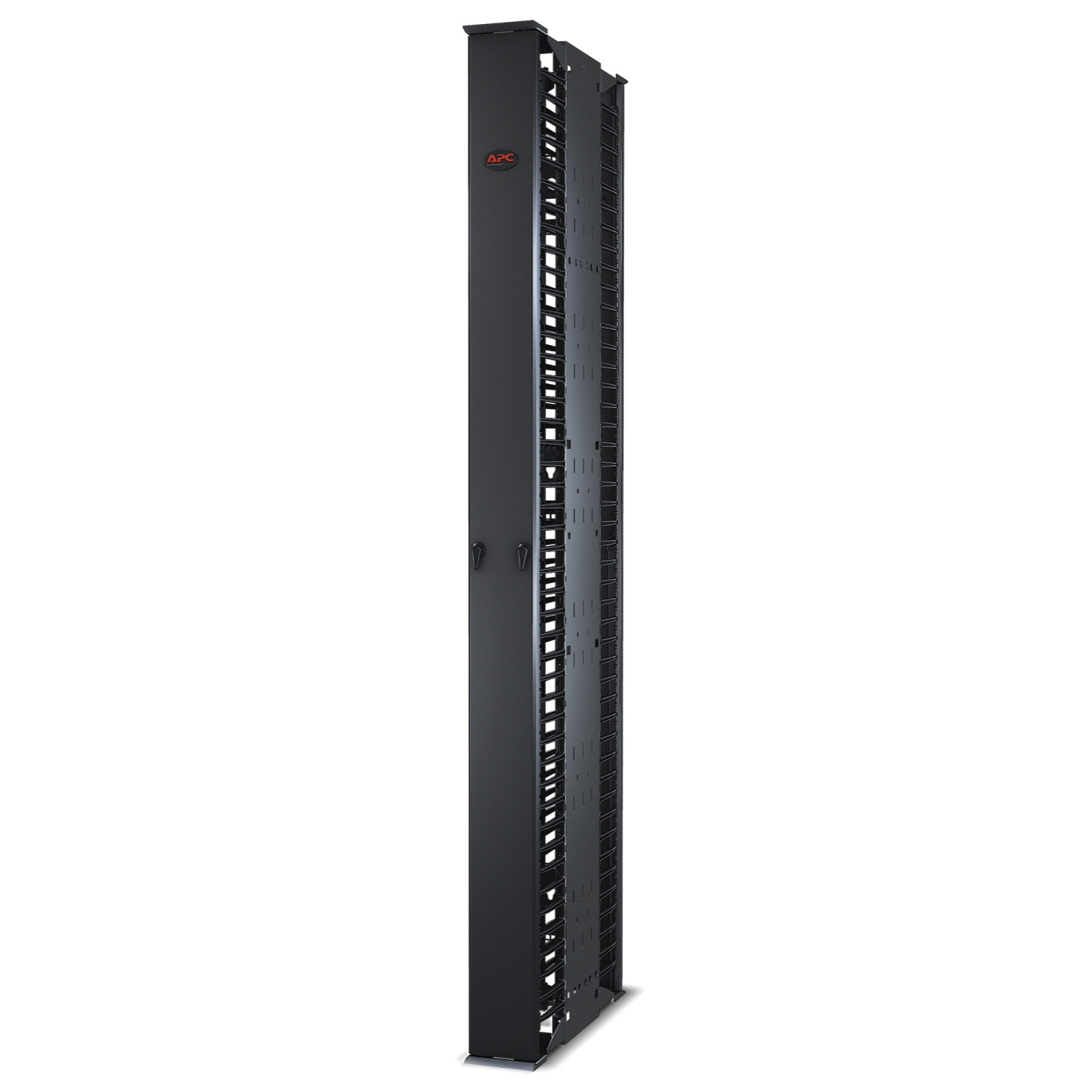

APC Performance,Vertical Cable Manager for 2 & 4 Post Racks, 84"H x 6"W, Double-Sided with Doors
- Brand: APC
- Category:
- SKU: AR8625
- EAN: 0731304291572 7313042915724
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
AR8625 |
APC-AR8625 | |||
|
CDX VERTICAL CABLE MANAGER View on Xvantage |
CA07507 | |||
|
Cable Management - Rack cable management kit - black - for P/N: NBWL0355A, SMX2000LVNCUS, SMX2KR2UX145, SMX3000HV-BR, SMX3000LV2U-BR, SMX3KR2UNCX145 View on InTouch |
8622332 | |||
|
CDX VERTICAL CABLE MANAGER 84INX6IN View on Webshop |
AR8625 | |||
|
Rck ccessory Cle |
AR8625 | |||
| Ingram Micro CS |
CDX VERTICAL CABLE MANAGER |
CA07507 | |||
|
Cable Management - rack cable management kit |
STD10221356 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
CDX VERTICAL CABLE MANAGER 84INX6IN |
CLAR8625 | |||
Reasons To Buy
Smooth plastic fingers provide proper bend radius.
Deployment flexibility allows sensor pods to be up to 1000 meters from a compatible NetBotz appliance.
Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Toollessly mount vertical Rack PDUs
Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
Slam-to-latch full length door
Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
Mid-span bracket for 19" rackmount accessories and cable management
Double-sided vertical cable managers include three midspan brackets pre-installed that provide structural rigidity, 19" rackmount accessory mounting locations, and cable management tie-off using hook-and-loop cable managers (AR8621) or fiber spools (AR8444). Remove and re-arrange midspan brackets to divide the interior space of the cable manager and provide a deeper/shallower channel in 40-60, 50-50, or 60-40 splits.
Vertical cable managers ship fully assembled
Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
Grounding connection
Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
Similar look-and-feel to NetShelterT enclosures
Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
Horizontal cable routing front-to-back
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Description
Specifications
| Features | |
|---|---|
| Certification | UL, REACH |
| Hot-swap | No |
| On/off switch | No |
| Type | Cable management panel |
| Product colour | Black |
| Castor wheels | No |
| Built-in fan | No |
| Locking | No |
| Harmonized System (HS) code | 85389099 |
| Cooling | |
| Built-in fan | No |
| Weight & dimensions | |
| Package width | 826 mm |
| Package height | 304 mm |
| Package depth | 2287 mm |
| Package weight | 39 kg |
| Depth (max) | 66 cm |
| Width | 152 mm |
| Weight | 29.9 kg |
| Height | 2134 mm |
| Packaging data | |
| Package width | 826 mm |
| Package height | 304 mm |
| Package depth | 2287 mm |
| Package weight | 39 kg |
| Technical details | |
| Type | Cable management panel |
| Total carbon footprint (kg of CO2e) | 118.34 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
