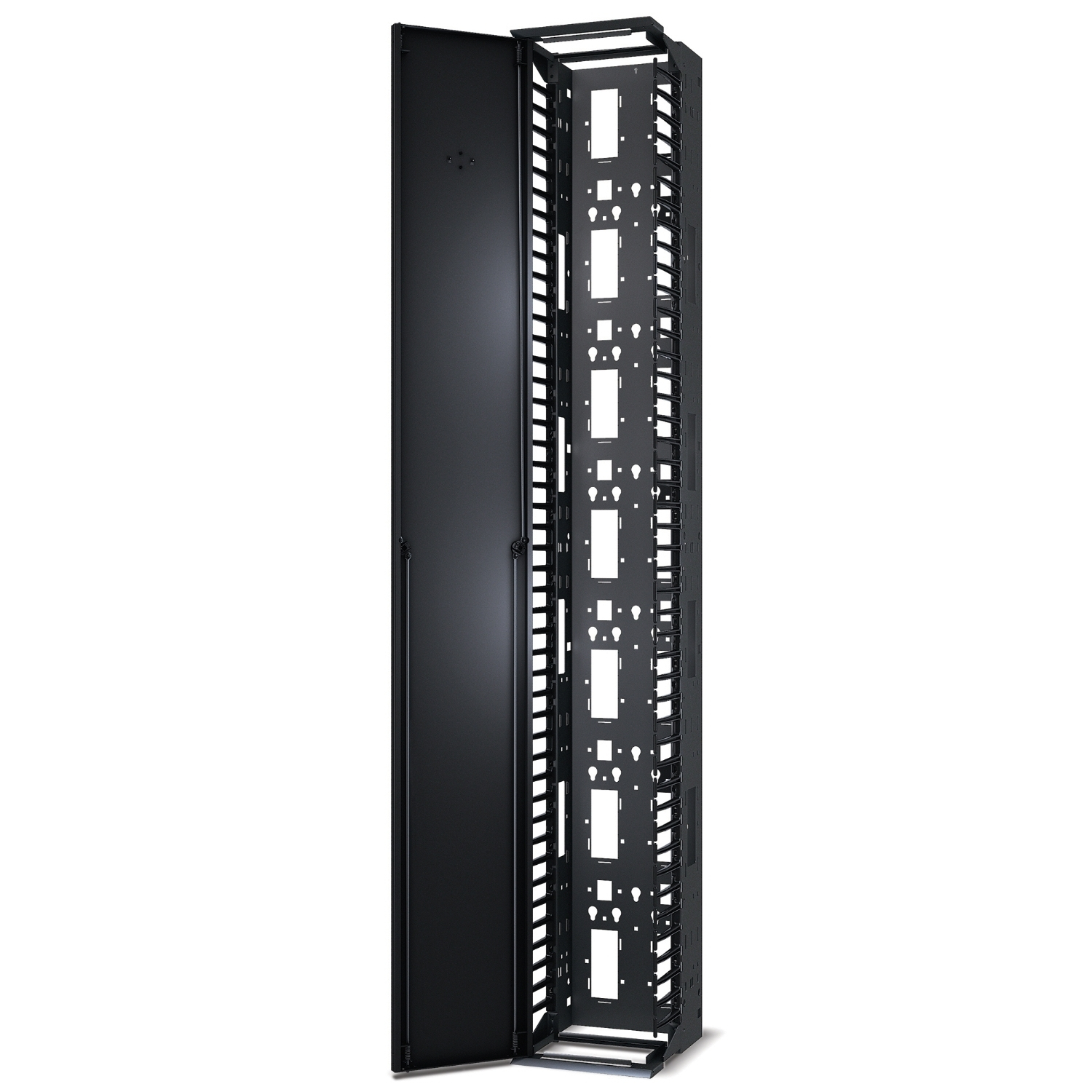

APC Performance, Vertical Cable Manager for 2 & 4 Post Racks, 84"H x 12"W, Single-Sided with Door
- Brand: APC
- Category:
- SKU: AR8665
- EAN: 0731304291602 7313042916028
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
CDX. VERTICAL CABLE MANAGEMENT View on Xvantage |
270D078 | |||
|
- Rack cable management kit - black - for P/N: NBWL0355A, SMX2000LVNCUS, SMX2KR2UX145, SMX3000HV-BR, SMX3000LV2U-BR, SMX3KR2UNCX145 View on InTouch |
5551850 | |||
|
CDX, Vericl Cle Mngemen |
AR8665 | |||
| Ingram Micro CS |
CDX. VERTICAL CABLE MANAGEMENT |
270D078 |
Related Products
-
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories
Reasons To Buy
Smooth plastic fingers provide proper bend radius.
Deployment flexibility allows sensor pods to be up to 1000 meters from a compatible NetBotz appliance.
Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Toollessly mount vertical Rack PDUs

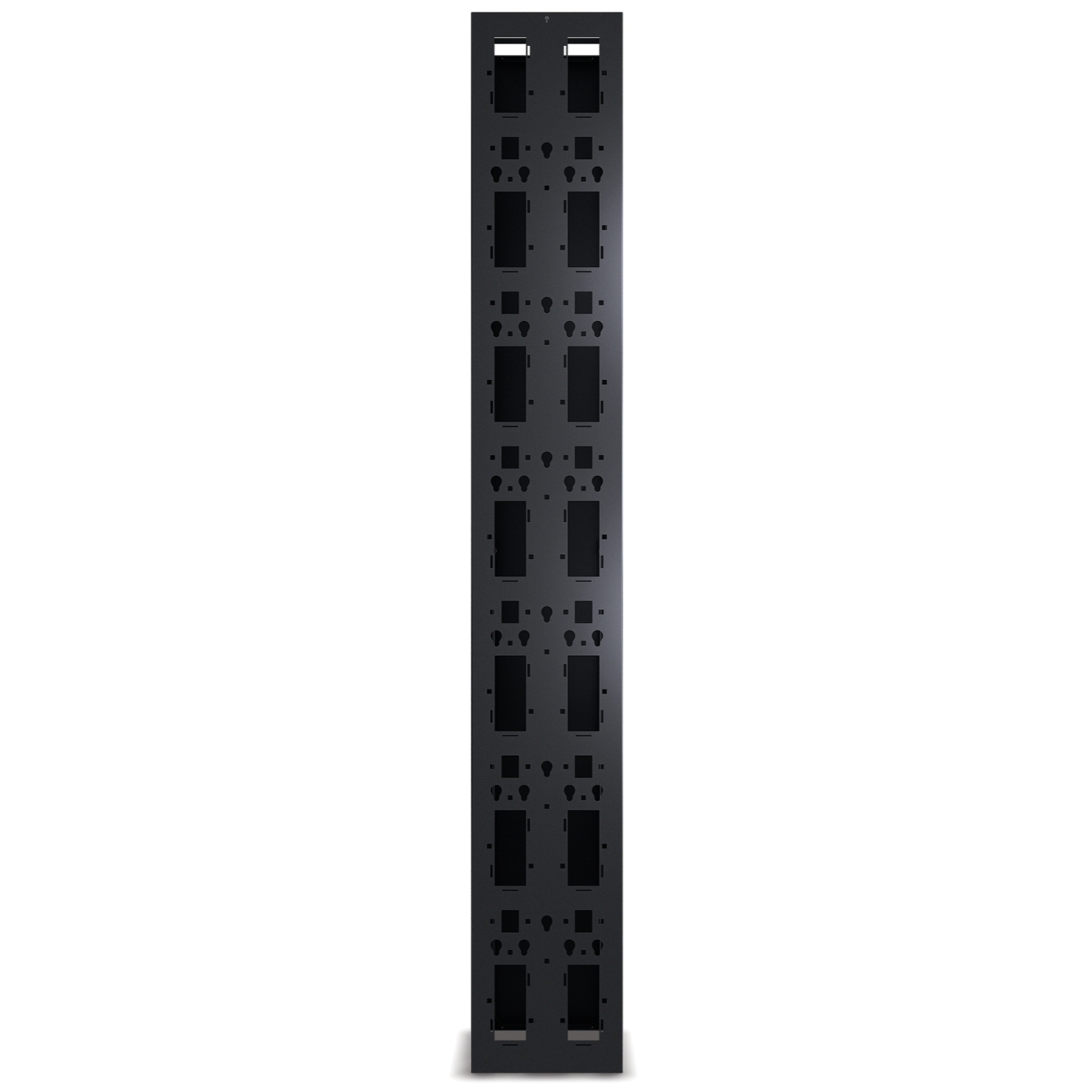

Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
Cable management tie-off backplate
Backplates feature multiple mounting holes for toolless accessory installation of vertical Rack PDUs and cable management accessories such as hook-and-loop cable managers for cable tie-off (AR8621) and fiber spools for excess fiber slack management (AR8444).

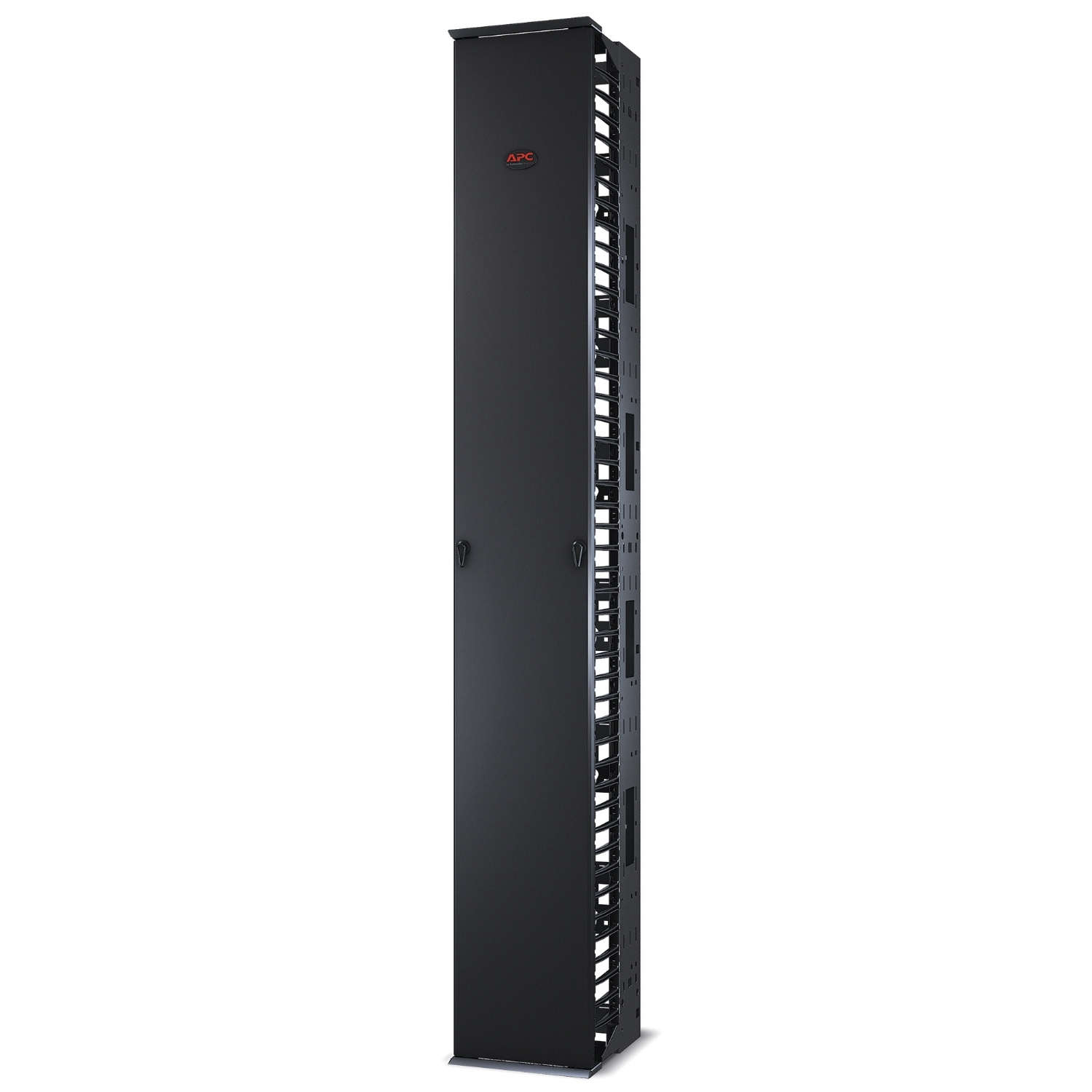

Slam-to-latch full length door
Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
Vertical cable managers ship fully assembled
Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
Grounding connection
Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
Similar look-and-feel to NetShelterT enclosures
Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
Horizontal cable routing front-to-back
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Description
Specifications
| Features | |
|---|---|
| Certification | UL, REACH |
| Hot-swap | No |
| On/off switch | No |
| Type | Cable management panel |
| Product colour | Black |
| Castor wheels | No |
| Built-in fan | No |
| Locking | No |
| Harmonized System (HS) code | 85389099 |
| Cooling | |
| Built-in fan | No |
| Weight & dimensions | |
| Package width | 540 mm |
| Package height | 402 mm |
| Package depth | 2280 mm |
| Package weight | 36.3 kg |
| Depth (max) | 36 cm |
| Width | 304 mm |
| Weight | 30.4 kg |
| Height | 2134 mm |
| Packaging data | |
| Package width | 540 mm |
| Package height | 402 mm |
| Package depth | 2280 mm |
| Package weight | 36.3 kg |
| Technical details | |
| Type | Cable management panel |
| Total carbon footprint (kg of CO2e) | 110.14 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
