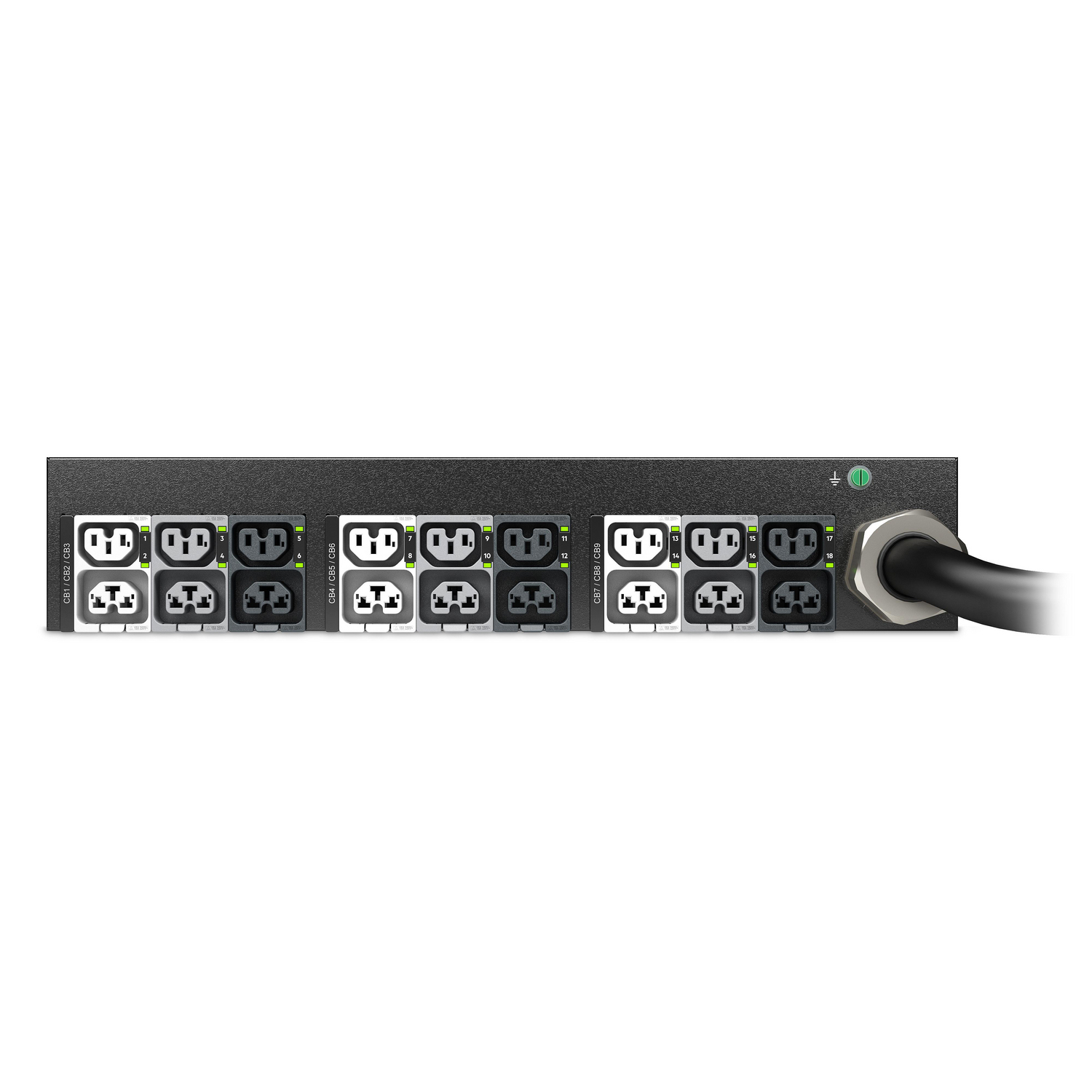

APC NetShelter Rack PDU Advanced Switched Metered, 2U, 3 Phase, 415V, 41.4kVA 60A, 18 Outlets

APC NetShelter Rack PDU Advanced Switched Metered, 2U, 3 Phase, 415V, 41.4kVA 60A, 18 Outlets

NetShelter Rack PDU Advanced Switched Metered, 2U, 3 Phase, 415V, 41.4kVA 60A, 18 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

APC NETSHELTER RACK PDU

View on Xvantage open_in_new 		CS02816 Register free see stock
TD Synnex UK

NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched, metered, 415 V - AC 415 V - 41400 VA - 3-phase - Ethernet 10/100/1000 - input: IEC 60309 60A - output connectors: 18 (9 x IEC 60320 C13/C15, 9 x IEC 60320 C13/C15/C19/C21)

View on InTouch open_in_new 		13242865
EET

Nesheler Rck Pdu dvnced

 APDU11454SM
Ingram Micro CS

APC NETSHELTER RACK PDU

 CS02816

Related Products

Description

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 50 percent of outlets on model are designed as 4 in 1 combination outlets which can be used as either C13, C19, C15, or C21 to provide unparalleled deployment flexibility. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today s high density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is 560P6 or 563P6 and features 9 count C13/C15 and 9 count C13/C15/C19/C21 outlets. A 9.8 foot (3 meter) input cord makes it easier for the PDU to reach the power supply.

Specifications

Design
TypeThree-phase
PDU typesMetered-by-outlet
MountingHorizontal
Product colourBlack
Rack capacity2U
Ports & interfaces
AC outlets quantity18 AC outlet(s)
AC outlet typesC13 coupler, C15 coupler, C19 coupler, C21 coupler
Power plugIEC309
Input connection typeIEC 309 60 A
Features
International Protection (IP) codeIP44
Management features
Management platformNMC3
Power
Nominal input voltage415 3 phases
Output voltage415 V AC 3 phases
Maximum current60 A
Load capacity41400 VA
AC input frequency50/60 Hz
Number of phases3
Certificates
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesRoHS, REACH, WEEE
Sustainability
Doesn't containSilicone
Operational conditions
Operating temperature (T-T)-5 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 90%
Non-operating altitude0 - 15240 m
Weight & dimensions
Weight16.3 kg
Width443 mm
Depth750 mm
Height85 mm
Package width600 mm
Package depth165 mm
Package height940 mm
Package weight22.8 kg
Packaging data
Package width600 mm
Package depth165 mm
Package height940 mm
Package weight22.8 kg
Technical details
Doesn't containSilicone
Compliance certificatesRoHS, REACH, WEEE
Certification
Waste Electrical and Electronic Equipment (WEEE) complianceYes
