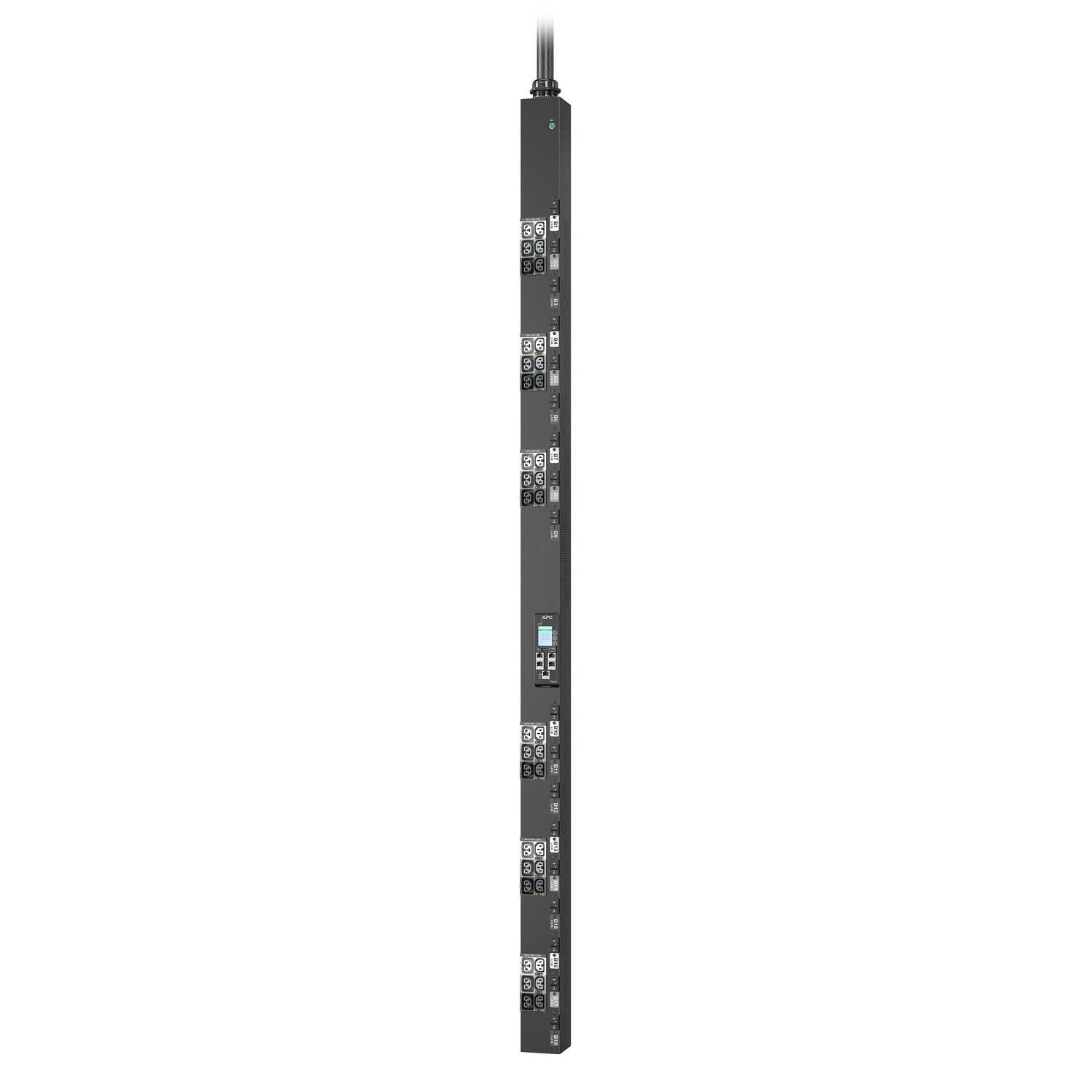

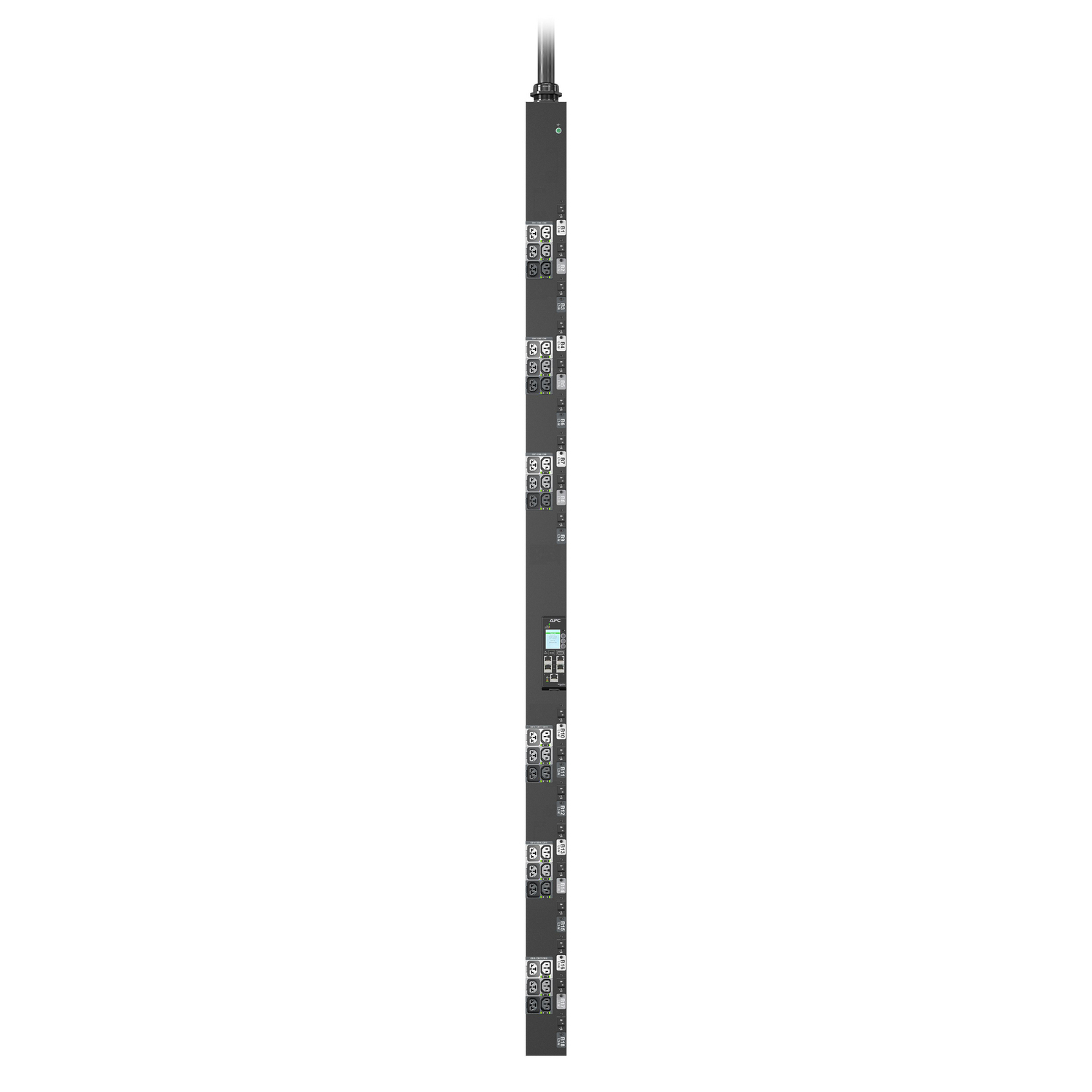

APC NetShelter Rack PDU Advanced Switched Metered, 0U, 3 Phase, 415V, 69.0kVA 100A, 36 Outlets

APC NetShelter Rack PDU Advanced Switched Metered, 0U, 3 Phase, 415V, 69.0kVA 100A, 36 Outlets

NetShelter Rack PDU Advanced Switched Metered, 0U, 3 Phase, 415V, 69.0kVA 100A, 36 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

APC NETSHELTER RACK PDU

View on Xvantage open_in_new 		CS02890 Register free see stock
Ingram Micro CS

APC NETSHELTER RACK PDU

 CS02890

Related Products

Description

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks in ZeroU form. PDU level power metering provides power visibility and notification of potential overload. 50 percent of outlets on model are designed as 4 in 1 combination outlets which can be used as either C13, C19, C15, or C21 to provide unparalleled deployment flexibility. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today s high density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is 5125P6W 100A and features 18 count C13/C15 and 18 count C13/C15/C19/C21 outlets. A 9.8 foot (3 meter) input cord makes it easier for the PDU to reach the power supply.

Specifications

Design
TypeThree-phase
PDU typesSwitched, Metered-by-outlet
MountingVertical
Product colourBlack
Rack capacity0U
Ports & interfaces
AC outlets quantity18 AC outlet(s)
AC outlet typesC13 coupler, C15 coupler, C19 coupler, C21 coupler
Power plugIEC309
Features
International Protection (IP) codeIP67
Management features
Management platformNMC3
Power
Nominal input voltage415 V
Output voltage415 V
Maximum current100 A
Load capacity69000 VA
AC input frequency50/60 Hz
Operational conditions
Operating temperature (T-T)-5 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 90%
Non-operating altitude0 - 15240 m
Weight & dimensions
Weight20.7 kg
Width85 mm
Depth85 mm
Height1980 mm
Package width350 mm
Package depth165 mm
Package height2320 mm
Package weight26.5 kg
Packaging data
Package width350 mm
Package depth165 mm
Package height2320 mm
Package weight26.5 kg
