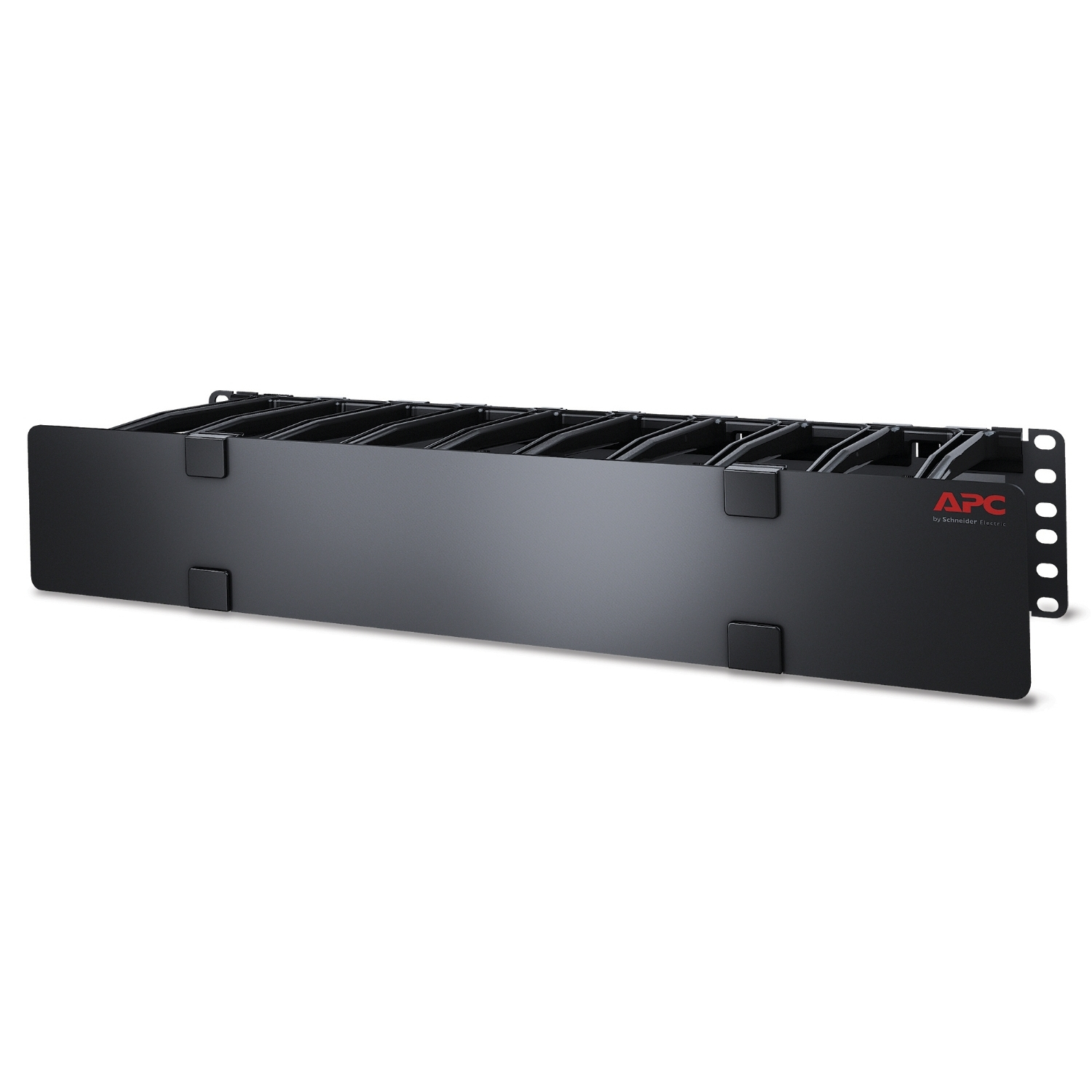

APC NetShelter Cable Management, Horizontal Cable Manager, 2U, with Cable Tie, Single Side with Cover, 482 x 89 x 165 mm
- Brand: APC
- Category:
- SKU: AR8603A
- EAN: 0731304291527 0042111554829 50 ...1554829 5054629201053 3609740049064 4053162538627 7313042915274more
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
AR8603A |
APC-AR8603A | |||
|
2U HORIZONTAL CABLE MANAGER View on Xvantage |
270A504 | |||
|
2U HORIZONTAL CABLE MANAGER, 6 FINGERS TOP, BOTTOM TIE DOWN |
AR8603A | |||
|
Cable Management - Rack cable management kit - black - 2U - TAA Compliant - for P/N: SCL500RM1U, SMX1500RM2UCNCUS, SMX1500RM2UCUS, SMX2KR2UX145, SMX3KR2UNCX145, SMX750CUS View on InTouch |
2425297 | |||
|
CABLE MANAGEMENT HORIZONTAL CABLE MA View on Webshop |
AR8603A | |||
|
2U Horizonl Cle Mnger |
AR8603A | |||
| Ingram Micro CS |
2U HORIZONTAL CABLE MANAGER |
270A504 | |||
|
Cable Management - rack cable management kit - 2U |
STD10072789 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
CABLE MANAGEMENT HORIZONTAL CABLE MA |
CLAR8603A | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £125.87 | ||
| Amazon | New | £167.48 | ||
| Amazon | New | £118.45 | ||
| Amazon | New | £125.88 |
Reasons To Buy

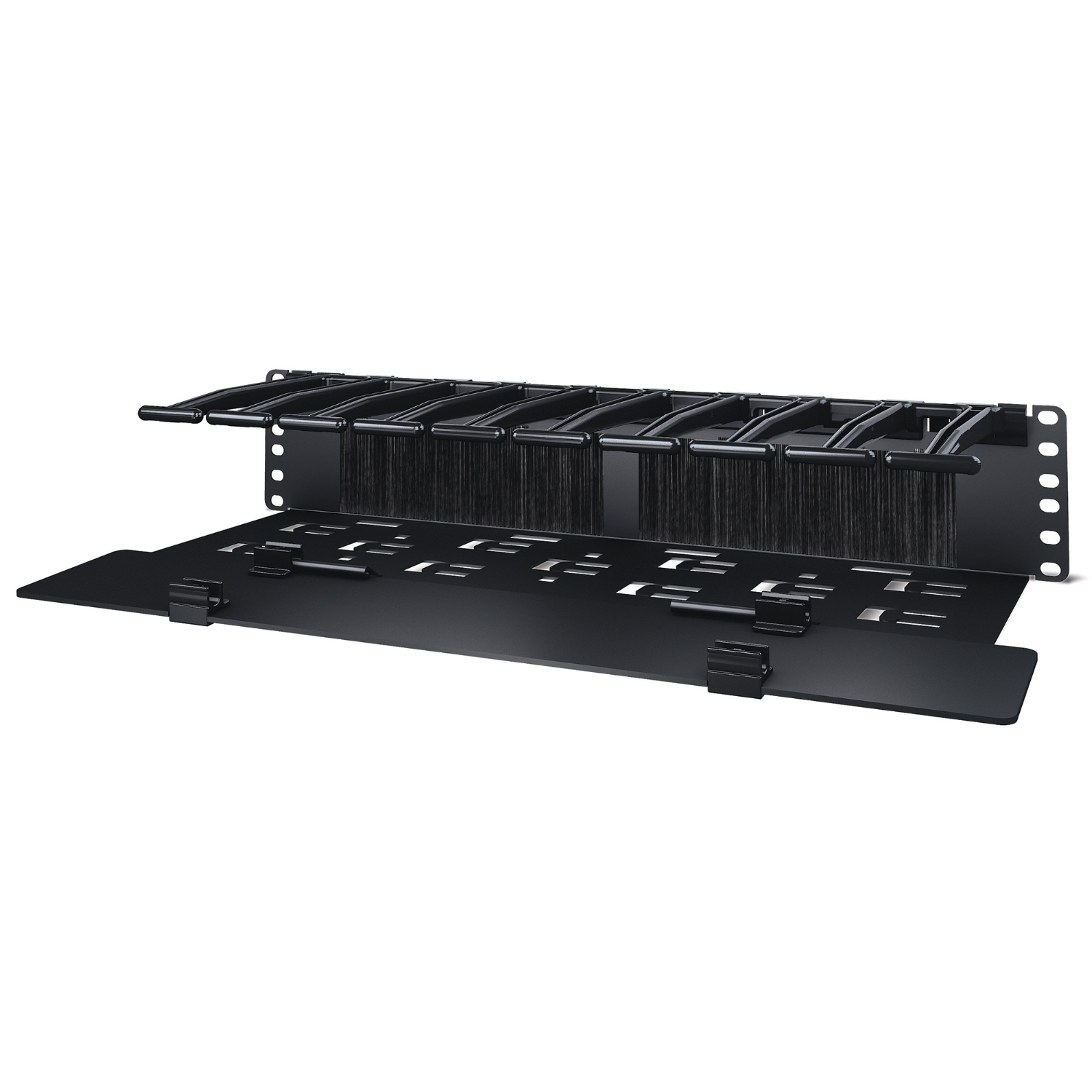

Covers with snap hinges provide trouble-free access to cables.
Supports toolless installation of AR8444 fiber spools.
Smooth plastic fingers provide proper bend radius.
Deployment flexibility allows sensor pods to be up to 1000 meters from a compatible NetBotz appliance.
Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Horizontal cable routing front-to-back
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Pre-installed brush strips provide air containment and accessibility from the front to the rear of the enclosure.
Horizontal cable managers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.
Double-sided capable
Horizontal cable managers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.
Horizontal cable manager bottom plate provides cable tie-off features for bundling cable with toolless hook-and-loop cable managers (AR8621).
The equipment mounting rails, front and rear, are fully adjustable for various mounting depths, for rear-facing equipment mounting or additional clearance from the front door. Maximum rack depth 88 cm/34.6 in. Minimum rack depth 12 cm/4.7 in.
Description
Specifications
| Features | |
|---|---|
| Certification | TAA, REACH |
| Hot-swap | No |
| On/off switch | No |
| Type | Cable management panel |
| Rack capacity | 2U |
| Product colour | Black |
| Castor wheels | No |
| Built-in fan | No |
| Locking | No |
| Harmonized System (HS) code | 85389099 |
| Cooling | |
| Built-in fan | No |
| Weight & dimensions | |
| Package width | 521 mm |
| Package height | 153 mm |
| Package depth | 200 mm |
| Package weight | 1.5 kg |
| Depth (max) | 16.6 cm |
| Width | 483 mm |
| Weight | 1.2 kg |
| Height | 89 mm |
| Packaging data | |
| Package width | 521 mm |
| Package height | 153 mm |
| Package depth | 200 mm |
| Package weight | 1.5 kg |
| Technical details | |
| Type | Cable management panel |
| Rack capacity | 2U |
| Total carbon footprint (kg of CO2e) | 4.55 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
