APC AP8867 power distribution unit (PDU) 30 AC outlet(s) 0U Black

APC AP8867 power distribution unit (PDU) 30 AC outlet(s) 0U Black

PDU 2G, Metered, ZeroU, 17.2kW, 208V, 48A, 50/60Hz, 30xC13, 1.83m, 10.2kg, Black

Trade Prices

Distributor Product SKU Stock Updated Price
Hammer Distribution

AP8867

 APC-AP8867 Register free see stock

Description

- Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
- The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
- Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
- Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
- An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
- Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Specifications

Design
PDU typesMetered
MountingHorizontal/Vertical
DisplayLCD
Product colourBlack
CertificationcUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A
Rack capacity0U
Ports & interfaces
AC outlets quantity30 AC outlet(s)
AC outlet typesC13 coupler

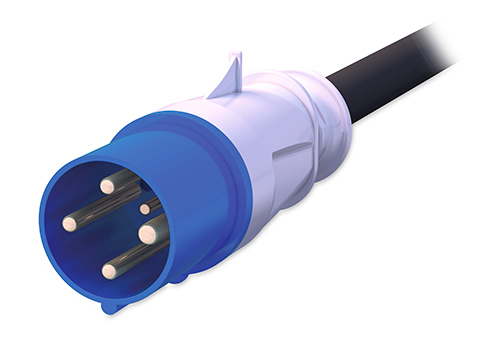

Input connection typeIEC 309 60A 3P+PE
Features
Cable length1.83 m
CertificationcUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A
Ergonomics
Cable length1.83 m
DisplayLCD
Power
Nominal input voltage208 V
Nominal output voltage208 V
Output voltage208 V
Power protection featuresOverload
Maximum current60 A
Maximum total current draw per phase48 A
Maximum input current per phase48 A
Load capacity17300 VA
AC input frequency50 - 60 Hz
Certificates
CertificationcUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Weight & dimensions
Weight10.2 kg
Width56 mm
Depth51 mm
Height1829 mm
Package width221 mm
Package depth112 mm
Package height2149 mm
Package weight14.1 kg
Packaging data
Package width221 mm
Package depth112 mm
Package height2149 mm
Package weight14.1 kg
Technical details
Total carbon footprint (kg of CO2e)59943.98
Compliance certificatesRoHS
Logistics data
Total carbon footprint (kg of CO2e)59943.98
