Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|

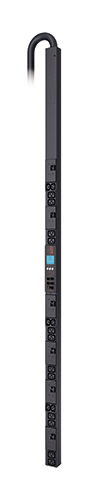

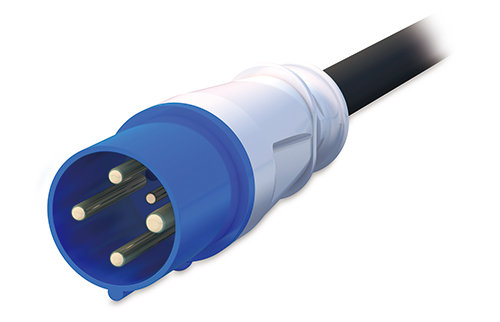

Metered Rack PDU - Power distribution unit (rack-mountable) - AC 208 V - 17.3 kW - 3-phase - Ethernet 10/100, RS-232 - input: IEC 60309 - output connectors: 18 - 0U - 1.82 m cord - Canada, United States - black - for P/N: SMTL2K2RM2UCL, SMTL2K2RM2UCLNC, S View on InTouch |
3022413 | |||
|
Rck PDU 2G Meered ZeroU |
AP8866 |
Description

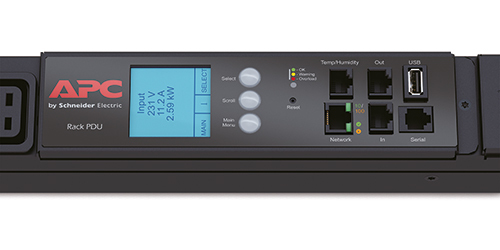

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specifications
| Design | |
|---|---|
| PDU types | Metered |
| Product colour | Black |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VCCI A |
| Rack capacity | 2U |
| Ports & interfaces | |
| AC outlets quantity | 18 AC outlet(s) |
| Features | |
| Cable length | 1.83 m |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VCCI A |
| Ergonomics | |
| Cable length | 1.83 m |
| Power | |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Power protection features | Overload |
| Maximum total current draw per phase | 48 A |
| Maximum input current per phase | 48 A |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VCCI A |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 131 °F |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 9.5 kg |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 54038.36 |
| Compliance certificates | RoHS |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 54038.36 |
