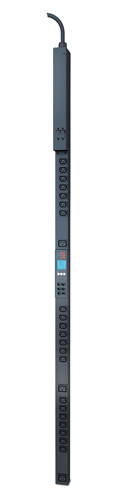

APC AP8453 power distribution unit (PDU) 24 AC outlet(s) 0U Black
- Brand: APC
- Category:
- SKU: AP8453
- EAN: 0731304317555
NetShelter Metered-by-Outlet Rack PDU, 0U, 1PH, 7.4kW 230V 32A, x21 C13 and x3 C19 outlets, IEC 309 cord
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Rack PDU 2G. Metered-by-Outlet |
000000000000112449 | |||
|
AP8453 |
APC-AP8453 | |||
|
RACK PDU 2G METERED-BY-OUTLET View on Xvantage |
270B145 | |||
|
RACK PDU 2G, METERED-BY-OUTLET, ZEROU, 32A, 230V, (21) C13 & (3) C19 |
AP8453 | |||
|
Rack PDU 2G Metered-by-Outlet ZeroU 32A 230V (21) C13+(3) C19 - AP8453 View on InTouch |
3240363 | |||
|
RACK PDU 2G METERED-BY-OUTLET ZEROU View on Webshop |
AP8453 | |||
|
Rck PDU 2G Meered-y-Oule |
AP8453 | |||
| Ingram Micro CS |
RACK PDU 2G METERED-BY-OUTLET |
270B145 | |||
|
Metered Rack PDU ZeroU 2G - power distribution unit |
STD10118787 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
RACK PDU 2G METERED-BY-OUTLET ZEROU |
CLAP8453 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £1,886.54 | ||
| Amazon | New | £1,480.04 |
Description
APC Metered-by-Outlet Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh) at the outlet level. This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to monitor and optimize energy use, and plan for capacity on a granular level for things like customer power usage. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (21) C13 and (3) C19 locking outlets. Daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered, Metered-by-outlet |
| Mounting | Vertical |
| Product colour | Black |
| Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC309 |
| Features | |
| Cable length | 3.05 m |
| Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Ergonomics | |
| Cable length | 3.05 m |
| Power | |
| Maximum power | 7680 W |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum input current per phase | 32 A |
| Load capacity | 7680 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight | 8.21 kg |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Package width | 163 mm |
| Package depth | 117 mm |
| Package height | 2037 mm |
| Package weight | 10.5 kg |
| Packaging data | |
| Package width | 163 mm |
| Package depth | 117 mm |
| Package height | 2037 mm |
| Package weight | 10.5 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 5046.47 |
| Compliance certificates | RoHS |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 5046.47 |
