AG Neovo QD-98 Digital signage flat panel 2.49 m (98") LCD 500 cd/m² 4K Ultra HD Black 24/7

AG Neovo QD-98 Digital signage flat panel 2.49 m (98") LCD 500 cd/m² 4K Ultra HD Black 24/7

98”, LED-Backlit TFT LCD, 3840 x 2160, 500 cd/m2, 1300:1, 5 ms, 178°/178°, 3 x HDMI, USB, VGA, DisplayPort In/Out, RJ-45, 91.4 kg

Trade Prices

Distributor Product SKU Stock Updated Price
Mentor (IE)

QD-98 98" 4K IPS Large Format Commercial Display

QD-98 Register free see stock
Mentor (UK)

- QD-98

QD-98

Description

Unparalleled Visual Quality
The high brightness, high contrast ratio, and black-level alignment deliver an impeccable visual experience. Built on IPS panel with 4 times FHD resolution, the QD-Series render exquisite video quality with motion blur reduction at a refresh rate of up to 120Hz.

High Reliability
THe QD-Series are crafted specifically to transcend the challenge of enduring 24/7 operations. AG Neovo's Anti-Burn-in™ technology also spares them ghosting while performing mission-critical nonstop operations. Metal casing and rigorously selected components not only help do the trick but also keep maintenance easy.

Easy to Display
The tiling-ready QD-Series can either stand alone replacing videowall set-ups or be arrayed in configurations of up to 10 x 15 videowalls. The QD-Series can also deliver 4K at 60 Hz by single DisplayPort 1.2 cable for the best visual quality.

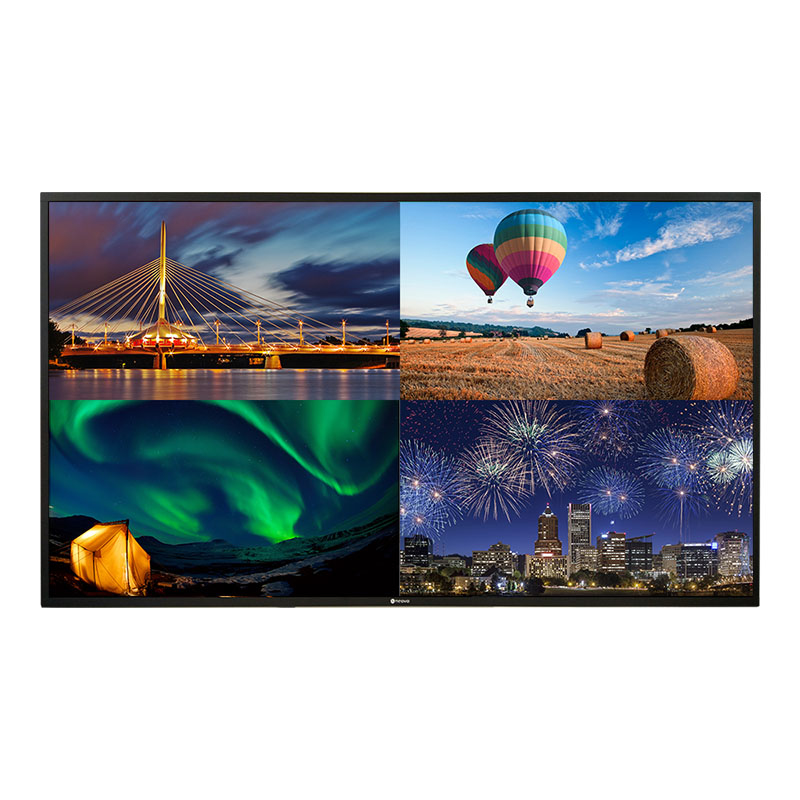

Multi-Screen Viewer
The Picture by Picture (PbP) function and up to four inputs mean it is possible to present multiple FHD screens for different operations in one display. With the multiscreen viewing capacity, the QD-Series become a sensible option for control centres, meeting rooms, and other public settings.

Specifications

Display
LED backlightYes
Panel typeIPS
Display number of colours1.06 billion colours
TouchscreenNo
Display technologyLCD
Display diagonal2.49 m (98")
Display resolution3840 x 2160 pixels
Display brightness500 cd/m²
HD type4K Ultra HD
Response time5 ms
Contrast ratio (typical)1300:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.5622 x 0.5622 mm
Display diagonal (metric)247.7 cm
Vertical scan range56 - 75 Hz
Supported video modes480i, 480p, 576i, 720p, 1080i, 1080p, 3840p
Supported graphics resolutions640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Native aspect ratio16:9
Horizontal scan range32 - 91 kHz
Anti-glare screenYes
Surface hardness3H
Native refresh rate120 Hz
Haze rate1%
RGB colour spaceNTSC
Ports & interfaces
Remote (IR) output1
Remote (IR) input1
DisplayPorts out1
USB portYes
DisplayPorts in1
HDMI version2.0
Number of speaker outputs1
Wi-FiNo
PC Audio inYes
DisplayPorts quantity2
Ethernet LANYes
HDMI ports quantity3
DVI portYes
DVI-D ports quantity1
VGA (D-Sub) input ports1
Component video (YPbPr/YCbCr) in1
Ethernet LAN (RJ-45) ports1
RS-232 interfaceYes
USB version2.0
USB ports quantity2
HDMI input ports quantity3
Audio
Number of built-in speakers2
RMS rated power20 W
Built-in speaker(s)Yes
Design
Product designDigital signage flat panel
Placement supportedIndoor
OrientationHorizontal
Product colourBlack
Panel mounting interface800 x 500 mm
CertificationCE, FCC
VESA mountingYes
Anti-glare screenYes
Performance
PurposeUniversal
Operating hours (hours/days)24/7
Multi-display supportedYes
Picture-in-PictureYes
On Screen Display (OSD)Yes
Multi zoomYes
Wi-FiNo
Power
Power consumption (off)0.3 W
Power consumption (typical)314 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Computer system
Computer systemNo
Built-in processorNo
Weight & dimensions
Width2193.2 mm
Depth89.8 mm
Height1248.2 mm
Weight92 kg
Packaging data
Package width2503 mm
Package depth450 mm
Package height1569 mm
Package weight134.5 kg
Batteries includedYes
Remote control includedYes
ManualYes
Cables includedAC, Daisy chain cable, RS-232, VGA
Packaging content
Batteries includedYes
Remote control includedYes
ManualYes
Cables includedAC, Daisy chain cable, RS-232, VGA
Operational conditions
Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)5 - 95%
Certificates
CertificationCE, FCC
Technical details
VESA mountingYes
Panel typeIPS
DisplayPorts out1
DisplayPorts in1
Compliance certificatesCE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Network
Wi-FiNo
Ethernet LANYes
Logistics data
Harmonized System (HS) code85285210
Features
Harmonized System (HS) code85285210
Other features
Panel typeIPS
DisplayPorts out1
DisplayPorts in1
Wi-FiNo
Display technologyLCD
ManualYes
Energy efficiency class (old)A
